Customer Displays
Clear and Easy-To-Read
Clear and Easy-To-Read
Clear and easy to read, the large screen and 2-line x 20-column format provide customers with information at a glance. Furthermore, the display panel affords a wide viewing angle, and the head can be freely tilted and swiveled to any angle.
Euro symbol Support
These customer displays already handle the Euro as part of their solid support for the latest POS processing and customer communication needs.
Extensive Font Table
The extensive (12 pages in all) character code table, which includes Euro, Latin 2, Cyrillic, ANSI, and Blank Page, allows you to build systems to exact user specifications.
High-Speed Data Transfer
The transfer of data with a host is achieved at a super-fast 115,200 bps, the fastest rate in the class. Data is displayed in real-time, further improving processing efficiency.
Flash Memory Included
Flash memory is built in, providing the flexibility to rewrite font data.
Easy Connection
DM-D series customer displays support a wide range of power supplies, from 12V to 48V. For example, they can be connected to the serial COM port at 12V, a PS-180 at 24V. Also, because they can be connected directly to any available host terminal, you have the flexibility to build many different types of systems.
ESC/POS
Supported by the Epson ESC/POS command set, the DM-D series offers excellent utility. You can download user-defined characters, execute processes defined as a macro, and use internal character sets.
OLE POS
The Epson OCX driver software makes application development faster and less expensive in Windows 98/2000/NT/XP environments.
Specifications
|
DM-D110 |
DM-D210 |
Display Method/Color |
Vacuum fluorescent display / Green (505 mm) |
Vacuum fluorescent display / Green (505 mm) |
Number of Characters |
40 (20 columns * 2 lines) |
40 (20 columns * 2 lines) |
Brightness |
690 cd / m2 |
700 cd / m2 |
Character Font |
5x7 dot matrix, cursor |
5x7 dot matrix, comma, decimal point, annunciator |
Character Type |
Alphanumeric: 95, International characters: 37, Graphic characters: 128x12 pages |
Alphanumeric: 95, International characters: 37, Graphic characters: 128x12 pages |
Euro Symbol |
Supported |
Supported |
Character Size / Pitch |
3.5 * 5.0 mm / 5.2 mm |
6.5 * 11.3 mm / 9.9 mm |
Download Characters |
95 Characters |
95 Characters |
Interface |
RS-232 Serial |
RS-232 Serial |
Connection |
Pass Through Function *1 or Direct Connection *2 |
Pass Through Function *1 or Direct Connection *2 |

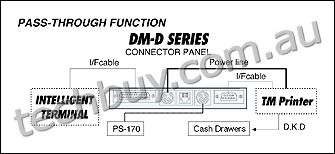

*1 Pass Through Function Thanks to a pass-through function, the DM-D110 and DM-D210 can control the printer. This means that you can reduce the number of personal
*2 Direct connection It is easy to connect to the Epson TM, IT and IR series of POS equipment and to be directly connected to your existing host terminal (serial port with a 12V power supply required). |
Baud rate |
2400 - 115200 bps |
2400 - 115200 bps |
Reliability |
MTBF 20,000 hours |
MTBF 20,000 hours |
Power / Power Consumption |
11.4 - 48 VDC / Approx. 6 W |
11.4 - 48 VDC / Approx. 6 W |
Overall (Panel) |
165 (W) x 50.5 (D) x 69 (H) mm |
260 (W) x 40 (D) x 83 (H) mm |
Dimensions - Base case |
165 (W) x 110 (D) x 63 (H) mm |
260 (W) x 110 (D) x 38 (H) mm |
Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability.
