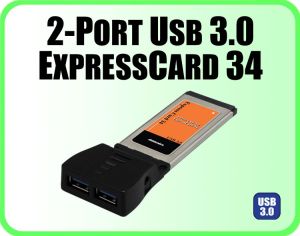

Addonics AD2U3EXC34 USB3.0 Express Card Adapter w. Slot Bracket - 2xUSB3.0 - ExpressCard34

IMG 1 of 2
No Longer Available
Part Number:
144795
(?) Brand:
Addonics Web Site
Manuf No:
AD2U3EXC34
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
9/6/2010
Details Files Images & Video
All stock codes associated to this product
AD2U3EXC34

Package content:
2-Port USB 3.0 ExpressCard 34, 34/54 slot bracket, Driver CD, User guide

This new Addonics USB 3.0 ExpressCard adapter is a simple and economical solution to upgrade your Windows Notebook computer to the latest high speed USB 3.0 technology. For Notebook with ExpressCard version 2.0, the adapter can deliver data rate up to 5 Gbps, 10 times the speed of USB 2.0.

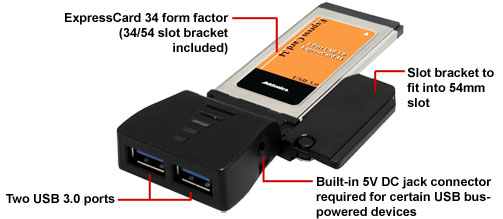

Product Features

  • Two USB 3.0 ports
  • Maximum 5Gbits/sec*, 10 times the speed of USB 2.0.
  • Install into ExpressCard 34 or 54 slot.
  • Includes an additional 34mm to 54mm bracket for solid fitting to ExpressCard/54 slot
  • Power directly from ExpressCard slot or via an optional external power adapter (may be required to provide adequate power to some USB self power devices)
  • Hot swappable - drive can be removed and added without system shut down or restart
  • Capable of SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
  • Compatible with Windows XP, Windows 2003 Server, Vista, Windows 7

* To achieve the maximum throughput, the ExpressCard slot must be version 2.0 or higher. Older Notebook with ExpressCard 1.0 will limit the speed to 2.5 Gbps. Performance per port may decrease if both ports are transferring data simultaneously due to the limited throughput of the ExpressCard slot. Please visit following web page for more information of ExpressCard v1.0 and v2.0 https://en.wikipedia.org/wiki/ExpressCard



Specifications

  • Two USB 3.0 Type A downstream connectors.
  • ExpressCard 34 Form Factor
  • Compliant with PCI Express Specification 2.0
  • Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
  • Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 0.95
  • All USB ports can handle SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
  • Support any USB3.0, USB2.0 and USB1.1 devices
  • BUS power support for USB self power device
  • Built-in DC jack connector support the 5V Max 1A bus power each USB port from optional power adapter
  • Chipset : NEC
  • Temperature: Operating 0 to 70 degree C.
  • Storage: -25 to 90 degree C.
  • Humidity: Operating 20% to 80%
  • Non Operating 15% to 90%
  • Include software drivers for Windows XP, Windows 2003 Server, Vista, Windows 7
  • Dimensions: (W x D x H) - 40mm x 106mm x 15mm (1.57in x 4.17in x 0.59in)
  • Weight: 30g (1.06oz)
  • Operating temperature range: 0 C to +70 C
  • Operating humidity range: 5% to 90%
  • Storage temperature range: -40 C to +85 C
  • Storage humidity range: 5% - 95% (non condensing)
  • 1 year warranty
  • RoHS Compliant

Specification subject to change without notice
