Panel |
Diagonal Size |
50" |
Type |
PLASMA DISPLAY |
Resolution |
1360 x 768 |
Pixel Pitch(mm) |
0.810 (H) x 0.810 (V) |
Active Display Area(mm) |
1105.65 (H) x 622.08 (V) |
Brightness(Typ.) |
1500 cd/ |
Contrast Ratio |
10,000:1 |
Viewing Angle(H/V) |
Over 160/160 |
Display Colors |
16.77 million colors (8Bits) |
Display |
Dynamic C/R |
10,000:1 |
H-Scanning Frequency |
30 - 81kHz |
V-Scanning Frequency |
56 - 75Hz |
Maximum Pixel Frequency |
165MHz |
Connectivity |
Input |
RGB |
Analog D-SUB, DVI-D |
Video |
CVBS, Component, BNC, HDMI |
Audio |
RCA (L / R) , Stereo mini Jack |
Output |
RGB |
DVI-D (Loop-out) |
Video |
BNC |
Audio |
Stereo mini Jack |
External Control |

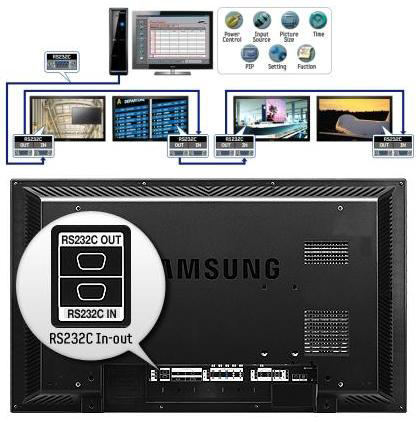

RS232C (in / out) |
Power |
Type |
Internal |
Power Supply |
AC 100 - 240V - (+/- 10 %), 50/60Hz |
Power Consumption |
On Mode |
320 watts (max) / 290 watts (typ) |
Sleep Mode |
Less than 2 watts |
Off Mode |
Less than 1 watts |
Mechanical Spec |
Dimension (mm) |
Set |
1,204.6 x 724.1 x 97.1 |
Package |
1,325 x 842 x 315 |
Weight (kg) |
Set |
32 |
Package |
38 |
VESA Mount |
600 x 400mm |
Protection Glass |
Yes |
Stand Type |
Foot Stand(optional) |
Operation |
Operating Temperature |
0C - 40C |
Humidity |
10 - 80% |
Features |
Key |
Plasma Display |
Special |

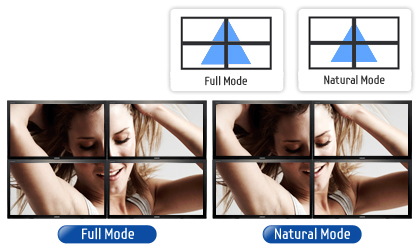

Temperature Sensor, Built-In Fan Control, RS232C MDC, Built in Speaker (10 watts + 10 watts), Plug and Play (DDC2B, DDC / CI), Video Wall (5 x 5), Pivot Display, Button Lock, Digital Daisy Chain |
Certification |
Safety |
UL (USA): UL 650065 CSA (Canada): CSA E60065CB (EU): IEC60065 (EN60065) KC (Korea): K60065, K00013, K00020, K00022, K00024PSB (Singapore): IEC60O65 SISIR (Malaysia): IEC60065GOST (Russia): IEC60065, EN55013 NOM (Mexico): NOM-019-SCFI-1993 IRAM (Argentina): IEC60065SASO (Saudi Arabia): IEC60065 PAI (Kuwait): IEC60065 |
EMC |
CCC (China): GB8898, GB13837, GB17625.1, GB13836 FCC (USA): FCC part 15 subpart B, Class B CE (Europe): EN55022, EN55024, EN55013, EN55020 VCCI (Japan): VCCI V-3KCC (Korea): KN22, KN24BSMI (Taiwan): CNS14408, CNS13439C-Tick (Australia): AS / NZS CISPR 13, AS / NZS CISPR 22 RFS (New Zealand): AS / NZS CISPR 13, AS / NZS CISPR 22 IC (Canada): ICES-003 |
Environment |
ENERGY STAR 5.0 (USA) |
Accessories |
Included |
Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries, Ferrite Core |
Optional |
Stand |
STN-P4063D |
Mount |
WMN5770D |
Specialty |
CML500D (ceiling mount), STN-520WE (welcome Board) |
