IP55, COMPIP55, COMP-IP55
Intelligent Megapixel/HD Network Camera
Introduction
Compro IP55 camera series offers best-in-class high quality megapixel HD image yet affordable surveillance solution, ideal for securing locations such as home, small business, hotel, shop, or restaurant.
Key Features
- Small and smart functional design
- 4x digital zoom
- Dual MJPEG and MPEG-4 video streams
- Megapixel / HD resolution

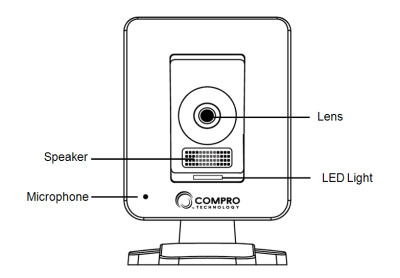

- Two-way audio with built in microphone and speaker
- MicroSD/SDHC support
- Mobile connectivity
- Exclusive Multiple Channels Management in IE
- Upgradeable Wifi USB module to 802.11 b/g/n wireless LAN
- Intelligent video analytic features
Features

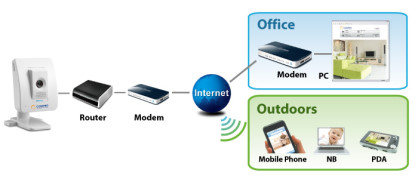

Total Surveillance Solution for Home and Business
IP55 bundles a full range of applications to provide an intelligent surveillance total solution - iWizard is a smart installer to turn the complicated network camera installation to a simple and fast process; WebVUer is an intuitive IE based video management software includes all the key features for trouble-free monitoring home surveillance; ComproView is a powerful feature rich 32 channels professional grade multi-camera video management solution for business surveillance.
High Quality Megapixel/HD Image
Utilizing Megapixel/HD technology enables IP55 to view detail and identify people and objects at least three times better than the conventional CCTV camera. Combining with dual MPEG-4 and MJPEG streams to enable optimization of different bandwidth of networks and various image size of devices from PC to mobile phone.
Easy Wireless Network Installation
802.11 b/g/n wireless LAN is supported via the WL150 USB upgrade module with a simple and easy wireless installation process.
4x Digital Zoom Provide You with Detailed Image
Free Compro iDDNS (Dynamic Domain Name Service) to get your personal favorite address, even youre using the floating IP

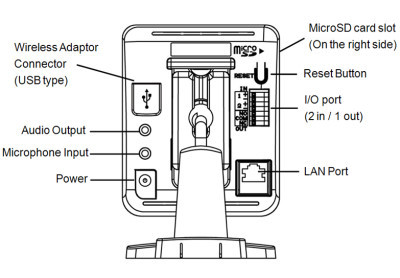

Digital I/O for External Sensor and Alarm (2 in / 1 out)
Smart Video and Audio Analytic

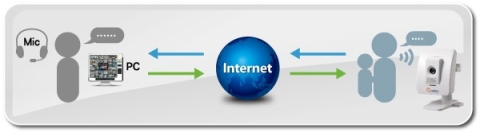

IP55 provides two-way audio support of a built-in microphone and speaker, allowing remote listening of the area via direct voice communication or pre-recorder audio clips. It also comes with a suite of special professional grade intelligent video analytic features such as smart video detection, smart audio detection, and active scene change alarm for proactive surveillance applications.
MicroSD card slot for local snapshot storage
IP55 camera built-in MicroSD card slot, support local snapshot storage in MicroSD card. (Both SD and SDHC formats)
Hardware
- Operating Condition: 5 C ~ 40 C
- Power Supply: DC 5V/2A
- Dimensions: 84 x 124.5 x 91.5 mm (including bracket)
Package Contents
- Software CD (Manuals included)
- Start Up Guide
- Power adaptor
- RJ-45 Network cable
- Screws for ceiling mounting
- Screw mount
System Requirements
- Computer with 1.7GHz processor and 512 MB memory or above
- Supported Operating Systems: Windows XP SP3, Vista SP1, Windows 7
- Support Web Browser: Internet Explorer 6 or later
Specifications
|
Specifications
|
| Camera |
|
Image Sensor
|
1/4" CMOS Megapixel sensor
|
|
Lens
|
- Focal Length: 4.5 mm
- Max Aperture Ratio: F2.0
- Fixed iris
|
|
Angle of View
|
46 horizontal
|
|
Focusing Range
|
0.5m ~ INF
|
|
Min Illumination
|
Color Mode: 1.0 lux
|
|
Shutter Time
|
1/5 ~ 1/16000 sec
|
| Video |
|
Video Compression
|
- Motion JPEG
- MPEG-4 Part 2
|
|
Resolutions
|
160x120, 320 x 240, 640 x 480, 1280 x 1024
|
|
Maximum Frame Rate
|
- Up to 30 frames at 640 x 480
- Up to15 frames at 1280 x 1024
|
|
Video Streaming
|
Dual MJPEG and MPEG-4 video streams
|
|
Image Setting
|
- Adjustable image size and quality
- AGC, AWB, AES
- Configurable brightness, saturation and sharpness
|
| Audio |
|
Audio Communication
|
Two-way audio with built-in MIC (S/N ratio 58 dB, 50-10000hz ) and speaker (660mv)
|
|
Audio Compression
|
G.711 PCM 64Kbit/sec
|
|
Audio Input / Output
|
MIC input / Audio out
|
| Networking |
|
Security
|
User ID / Password Protection
|
|
Supported Protocols
|
DDNS (iDDNS) / PPPoE / HTTP Server / DHCP Client /NTP Client /DNS Client / FTP Client / SMTP Client / ARP / ICMP/IPV4/ UDP / TCP/IP
|
| Firmware |
- Support UPnP
- Support online firmware update
|
| Software |
|
ComproView
|
- Multiple channel management
- iDDNS service for dynamic IP and desktop shortcut creation
- Recording search and playback
- Scheduled and event driven management
- Smart Detection
|
| Web Browser |
|
Internet Explorer (ActiveX)
|
- Monitor the current condition of the monitor area via Internet Explorer
- Capture a still image and save it in JPG format on PC
- Alarm and event management: FTP, I/O alarm, server notification and email
|
|
Support Devices
|
- PC, Laptop, Nettop, MID with IE/ActiveX support.
- Mobile phone, iphone/ipod, PDA support in MJPEG mode.
|
| Mobile Phone |
|
MJEPG Mode
|
Viewing of camera image via phone browsers
|
|
3GPP Mode
|
Viewing of camera image via 3G phones (3GPP Streaming)
|
| General |
|
Operating conditions
|
5 C ~ 40 C
|
|
Power Supply
|
DC 5V/2A
|
|
System Requirements
|
- Computer with 1.7GHz processor and 512 MB memory or above
- Supported Operating Systems: Windows XP SP3, Vista SP1, Windows 7
|
|
Supported Devices
|
- PC, Laptop, Nettop, MID with IE/ActiveX support.
- Mobile phone, iphone/ipod, PDA support in MJPEG mode.
|
|
Dimensions
|
84 x 124.5 x 91.5 mm (including bracket)
|
