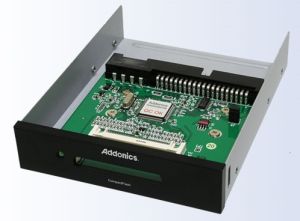

Addonics IDE-CF DigiDrive Adapter Pro

IMG 1 of 1
No Longer Available
Part Number:
150313
(?) Brand:
Addonics Web Site
Manuf No:
AEUDMACF
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
16/8/2010
Details Files Images & Video
All stock codes associated to this product
AEUDMACF
IDE-CF Adapter PRO

The IDE-CF Adapter PRO enables any CF media to be used as a removable storage media without the need to restart the system, just like using a regular floppy disc. Designed for IDE connection, the IDE-CF Adapter PRO supports all IDE modes and maximum throughput of UDMA6 (133MB/sec). There is no driver to install the IDE-CF Adapter PRO and it is compatible with practically any OS. Once installed, the CF instantly behaves like a SSD (solid state drive) to the OS and can be used as a bootable device. The IDE-CF Adapter PRO is an ideal solution for small industrial PC, Kiosk or any system with IDE interface to utilize CF for data storage or as a high performance boot device.
The IDE-CFAdapter PRO comes with upgradeable firmware to ensure compatibility with future new Flash standard. There is also choice of a READ only model, an ideal solution for the forensic application.

Features

  • High Speed IDE connection supporting up to UDMA6 (133 MB/sec) data transfer
  • Direct access of Compact Flash Type I / II
  • Choice of Read/Write or READ only models
  • Install into standard 3.5" drive bay
  • Master and slave jumper configuration
  • Maximum data transfer rate depends on the speed of the flash media
  • Supports hot swap
  • Single drive icon to access one media at a time
  • upgradeable firmware to ensure future compatibility
  • Green LED to indicate media access
  • Complete Plug and Play
  • No software driver to install. Compatible with practically any OS.
    •
    AEUDMACF

    IDE-CF Adapter PRO

    Content: IDE-CF Adapter PRO, installation guide

    Specifications

    Interface:
    		 IDE
    Master / Slave setting via onboard jumper
    Maximum Read / Write Speed: all PIO modes, all UDMA modes up to UDMA6 (133MB/s)
    Supported media Compact Flash Type I / II
    Hot swap media Yes. Media can be removed and added without restarting the system
    Supported OS DOS, Windows 7, 2000, XP, 2008, Vista, Mac OS X or higher, Linux
    Dimensions: 4 in (W) x 5.5 in (D) x 1 in (H)
    Weight: 5.6 oz (159g) (approx. )
    Operating Tempera tire & Humidity : 0 C to + 60C, 5 - 95 % RH non condensing
    Storage Temperature & Humidity: -20 C to + 60 C , 5 - 90% RH
    Warranty: One Year

    No additional files, specification sheets, guides or documentation found for product.

    Warranty: 1 Year Return to Base

    Full manufacturers warranty details are available at the manufacturers (Addonics) web site.

    Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

    To apply for return of a product just go to our returns page.

    These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
