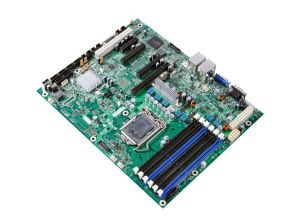

Intel S3420GPV Motherboard
LGA1156, I3420, 4xUDIMM RAM, 6xSATA-II, RAID, 2xGigLAN, VGA, ATX

No Longer Available

Part Number:

150954

(?) Brand:

Intel Web Site

Manuf No:

S3420GPV

Shipping Weight:

2.5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

S3420GPV, 1197009, 735858213851

Intel Entry Server Board S3420GPV

Intel Xeon Processor 3000 Sequence

Tech Specs

Product Description

Intel Entry Server Board S3420GPV has PCIe/PCI support, six SATA ports and Dual GbE. Compatible with Intel Xeon processor 3400 series

Supported Chipset

Intel 3420 Server Chipsets

Supported Processor

Intel Xeon Processor 3400 Series

Number of Processors Supported

One

Memory Capacity

Four memory slots supporting up to 16GB Unbuffered ECC DDR3 memory

NOTE: Mixed memory is not tested or supported. Non-ECC memory is not tested and is not recommended for use in a server environment.

Storage

Integrated IPMI 2.0 compliant Baseboard Management Controller

PCI Slot Type

Four PCI Slots:
- One 5V PCI 32 bit / 33 MHz connector
- One PCI Express* Gen1 x8 (x4 throughput)
- One PCI Express* Gen2 x8 (x8 throughput)
- One PCI Express* Gen2 x16 (x8 throughput)

Target Market

Intel Entry Server Board S3420GPV is an affordable General purpose Uni-Processor server with essential server class features and can be easily deployed in pedestal or rack mount chassis

	Intel Entry Server Board S3420GPV has PCIe/PCI support, six SATA ports and Dual GbE. Compatible with Intel Xeon processor 3400 series

Supported Chassis	Intel Entry Server Chassis SC5299UP
Dimension	ATX - 12" x 9.6"
Supported Chipset	Intel 3420 Server Chipsets
Supported Processor	Intel Xeon Processor 3400 Series
Number of Processors Supported	One
Memory Capacity	Four memory slots supporting up to 16GB Unbuffered ECC DDR3 memory NOTE: Mixed memory is not tested or supported. Non-ECC memory is not tested and is not recommended for use in a server environment.
Storage	Integrated IPMI 2.0 compliant Baseboard Management Controller
Integrated SAS	Requires add-in SAS Contoller
Integrated SATA	Supports six Serial ATA II hard drives
Integrated SCSI	N/A
Integrated LAN	One Gigabit Ethernet PHY 82578 connected to PCH through PCI-E x1 interface and one Gigabit Ethernet PHY 82574
Integrated Graphics	Onboard Video controller SM712*
Integrated RAID Support	Intel Matrix Storage Technology - supports Software RAID 0, 1, 10, 5 support
Total PCI Slots	Four
USB Connections	One USB 2x5 pin header supporting two USB 2.0 ports
Server Management	Intel System Management Software 3.5
System Bus	Intel QuickPath Technology
Warranty	Three-year limited

Items Included With This Product

Item	Part Number	MM#	# Required	Description
Intel Entry Server Board S3420GPV	S3420GPV	902726	1	Intel Entry Server Board S3420GPV has PCIe/PCI support, six SATA ports and Dual GbE. Compatible with Intel Xeon processor 3400 series
