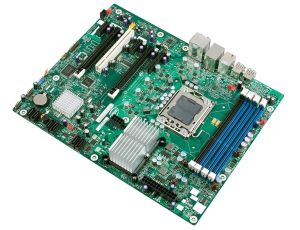

Intel WX58BPR Motherboard - Retail
  • LGA1366, X58, QPI, 4xDDR3-1333, 2xPCI-Ex16, 6xSATA-II, 2xeSATA, RAID, GigLAN, 8Chl, Firewire, ATX

IMG 1 of 1
No Longer Available
Part Number:
150957
(?) Brand:
Intel Web Site
Manuf No:
WX58BPR
Shipping Weight:
2.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
WX58BPR, 1240036, 735858214940
Intel Workstation Board WX58BP
Intel Xeon Processor 3000 Sequence

Tech Specs
Product Description
The Intel Workstation Board WX58BP is designed to work with a standard ATX
Supported Chipset
Intel X58 Express with Intel I/O Controller Hub 10R
Supported Processor
Intel Xeon processors 3500 series & 3600 series
Number of Processors Supported
One
Memory Capacity
Four DDR-3 1066/1333 Unbuffered ECC DIMMs via 3 channels
Max memory support 16GB

NOTE: Mixed memory is not tested or supported. Non-ECC memory is not tested and is not recommended for use in a server environment.
Storage
6 SATA ports (3 Gbps) via ICH10R with Intel Matrix Storage Technology (RAID 0, 1, 10, 5 and new Intel Rapid Recover Technology)
PCI Slot Type
Six PCI Slots:
Two - PCI Express* 2.0 x16 slot ATI CrossFire* support1
One - PCI Express* 2.0 x4 slot
Two - PCI Express* x1 slot
One - PCI 32/33

Target Market
An entry level workstation board with Intel Xeon processor W3500 series, ideal for engineering, scientific, economic and digital content creation applications.


The Intel Workstation Board WX58BP is designed to work with a standard ATX

Supported Chassis Standard ATX Reference chassis
Dimension ATX form-factor 12 x 9.6 (304.80 millimeters by 243.84 millimeters)
Supported Chipset Intel X58 Express with Intel I/O Controller Hub 10R
Supported Processor Intel Xeon processors 3500 series
Number of Processors Supported One
Memory Capacity Four DDR-3 1066/1333 Unbuffered ECC DIMMs via 3 channels
Max memory support 16GB

NOTE: Mixed memory is not tested or supported. Non-ECC memory is not tested and is not recommended for use in a server environment.
Storage 6 SATA ports (3 Gbps) via ICH10R with Intel Matrix Storage Technology (RAID 0, 1, 10, 5 and new Intel Rapid Recover Technology)
Integrated SAS N/A
Integrated SATA Six SATA/SATA-II ports (3Gbps)
Integrated SCSI N/A
Integrated LAN Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel 82567LM Gigabit Ethernet Controller
Integrated Graphics Supports ATI* CrossFireX* technology
Integrated RAID Support N/A
Total PCI Slots Six PCI Slots:
Two - PCI Express* 2.0 x16 slot ATI CrossFire* support1
One - PCI Express* 2.0 x4 slot
Two - PCI Express* x1 slot
One - PCI 32/33
USB Connections 12 x USB 2.0, IEEE-1394 ports
Server Management N/A
System Bus N/A
Warranty Three year limited

Items Included With This Product
Item Part Number MM# # Required Description
Intel Workstation Board WX58BP WX58BP 902632 1 The Intel Workstation Board WX58BP is designed to work with a standard ATX
