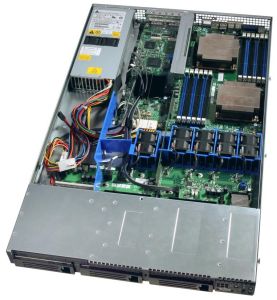

Intel SR1600URHSR Barebones Server - 1U
  • Dual Xeon 55xx/56xx, 12xDDR3 Reg/UnBuffered ECC, 3xHot Swap SATA-II HDD Bays, RAID-0,1,10, 2xGigLAN, VGA, 600W PSU

IMG 1 of 1
No Longer Available
Part Number:
150967
(?) Brand:
Intel Web Site
Manuf No:
SR1600URHSR
Shipping Weight:
30 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
SR1600URHSR, 1159858, 735858213516
Intel Server System SR1600URHSR (1U Hot-swap)
Intel Xeon Processor 5500 Series & 5600 Series

Tech Specs
Product Description
Intel Server System SR1600URHSR includes:
- One Intel Server Board S5520URR
- Front Panel Cable
- Three 3.5 Hot-swap Hard Drive carriers
- One full-height riser with PCI Express slot
- One fixed high-efficiently 600W power supply
- Three SATA and power cables
- Two processor heat-sinks

NOTE: Backplane not included, must be ordered sepparately
Form Factor
1U Rack
Chipset Supported
Intel 5520 Chipset with ICH10R
Supported Processor
Two Intel Xeon processors 5500 series and 5600 series
Number of Processor
Two
Memory Capacity
12 DIMMs sockets supporting up to 192GB of DDR3 memory
Supported memory type:
800/166/1333 MT/s ECC Registered (RDIMM), or ECC Unbuffered (UDIMM) DDR3 memory

NOTE: Mixed memory is not tested or supported. Non-ECC memory is not tested and is not recommended for use in a server environment

See product Technical Specification for memory configuration details
Redundant Power Capable
No
Server Management
Integrated IPMI 2.0 compliant Baseboard Management Controller with remote management and KVM option
Slot Type
One x16 PCI Express* Gen 2 PCI riser slot capable of supporting a full-length full-height PCI Express* add-in card
System Bus
Intel QuickPath Technology

Target Market
The high-performance, 1U rack-optimized system is ideal for enterprise data centers, with high-speed PCI Express* 2.0 and multiple I/O expansion modules that enable a wide array of flexible capabilities.

Intel Server System SR1600URHSR includes:
- One Intel Server Board S5520URR
- Front Panel Cable
- Three 3.5 Hot-swap Hard Drive carriers
- One full-height riser with PCI Express slot
- One fixed high-efficiently 600W power supply
- Three SATA and power cables
- Two processor heat-sinks

NOTE: Backplane not included, must be ordered sepparately

Front Bezel Features Power LED, hard-drive activity LED, two network activity LEDs, system-ID LED, system-status LED; power on/off button, system reset button, system ID button, and NMI switch
Dimensions 1.703 x 16.93 x 27.25
Drive Bays One slim-line SATA optical device
Front Panel Features 1 USB and 1 Video connector
Hot Swap Drive Bays Three 3.5" (hot-swap)
Integrated Graphics On-board ServerEngines* LLC Pilot II BMC Controller with Intergrated 2D Video Controller and 64MB memory
Integrated LAN Two 10/100/100 Intel 82575 NICs with Intel I/O Acceleration Technology
Integrated RAID Intel Embedded Server RAID Technology, with SW RAID levels 0/1/10; with optional support for SW RAID 5 with activation key
Integrated SAS N/A
Integrated SATA SATA/SATA II
Integrated SCSI N/A
Power Supply One 600W high efficient power supply
Serial Port N/A
Storage 6-port SATA (3 Gb/s) via ICH10R
System Cooling Five non-redunant system fans
Total Slots One
USB Connections Five:
- Four USB 2.0 connectors on the back
- One on the front
Warranty Three-year limited
Items Included With This Product
Item Part Number MM# # Required Description
Intel Server System SR1600URHSR (1U Hot-swap) SR1600URHSRNA (Includes power cord for North America) and SR1600URHSR 905165 (power cord included) or 905663 1 Intel Server System SR1600URHSR includes:
- One Intel Server Board S5520URR
- Front Panel Cable
- Three 3.5 Hot-swap Hard Drive carriers
- One full-height riser with PCI Express slot
- One fixed high-efficiently 600W power supply
- Three SATA and power cables
- Two processor heat-sinks

NOTE: Backplane not included, must be ordered sepparately
