Intel SR1630BCR Barebones Server - 1U
  • Single Xeon 34xx Series, 8xDDR3 Reg/UnBuffered ECC, 2xFixed 3.5" SATA-II HDD Bays, RAID-0,1,10, 1xGigLAN, VGA, 400W PSU

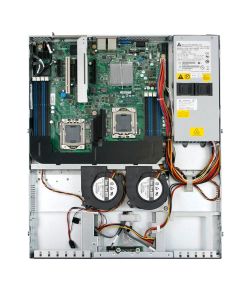

IMG 1 of 1
No Longer Available
Part Number:
150971
(?) Brand:
Intel Web Site
Manuf No:
SR1630BCR
Shipping Weight:
15 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
SR1630BCR, 1165485
Intel Server System SR1630BCR (1U Fixed)
Intel Xeon Processor 5500 Series & 5600 Series

Tech Specs
Product Description
Intel Server System SR1630BCR includes:
- One Intel Server Board S5500BCR
- One 1U riser card
- Two non-redundant system fans
- One fixed high-efficiently 400W power supply
- Two fixed 3.5" Hard Drive carriers
Form Factor
1U Rack
Chipset Supported
Intel 5500 Chipset with ICH10R
Supported Processor
Intel Xeon processors 5500 series and 5600 series
Number of Processor
Two
Memory Capacity
8 DIMMs sockets supporting up to 32GB of DDR3 memory
Supported memory type:
800/166/1333 MT/s ECC Registered (RDIMM), or ECC Unbuffered (UDIMM) DDR3 memory

NOTE: Mixed memory is not tested or supported. Non-ECC memory is not tested and is not recommended for use in a server environment

See product Technical Specification for memory configuration details
Redundant Power Capable
No
Server Management
Integrated IPMI 2.0 compliant Baseboard Management
Slot Type
One riser card supports one low-profile half-length (6.6 inches) PCI Express* Gen2 x8 connector
System Bus
Intel QuickPath Technology

Target Market
The high-performance, 1U rack-optimized system is designed to deliver cost effective solution with optimized business-class performance, world class quality, scalable management, and maximum expandability for small & medium business

Intel Server System SR1630BCR includes:
- One Intel Server Board S5500BCR
- One 1U riser card
- Two non-redundant system fans
- One fixed high-efficiently 400W power supply
- Two fixed 3.5" Hard Drive carriers
Front Bezel Features Power button, Satus LED, power LED, hard drive activity LED,and NIC 1 & NIC 2 LED
Dimensions 17" wide (without rails) x 20" long
Drive Bays Optional slim-line SATA optical device
Front Panel Features One USB port
Hot Swap Drive Bays N/A
Integrated Graphics On-board ServerEngines* LLC Pilot II BMC Controller with Intergrated 2D Video Controller
Integrated LAN Two 10/100/1000 NICs
- One 82574LGbE PCI Express* Network Controller
- One 82567 Gigabit Network Connection
Integrated RAID Intel Embedded Server RAID Technology, with SW RAID levels 0/1/10; with optional support for SW RAID 5 with activation key
Integrated SAS SAS support through optional SAS module card using external connectors. Internal SAS connectors only supported using SATA drives.
Integrated SATA Two SATA/SATA II SATA drives supported
Integrated SCSI N/A
Power Supply One fixed High-efficient 400W power supply
Serial Port One external Serial Port header (9 pin)
Storage 6-port SATA (3 Gb/s) via ICH10R
System Cooling Two non-redundant system fans
Total Slots One riser card supports one low-profile half-length (6.6 inches) PCI Express* Gen2 x8 connector
USB Connections Four USB 2.0 Ports connected to the Server Rear Panel
- Four USB 2.0 Ports connected to Headers on the motherboard
- One USB 1.1 Port connected to the Integrated BMC for KB/MS function
- One USB 2.0 Port connected to the Integrated BMC for remote storage function
Warranty Three-year limited

Items Included With This Product
Item Part Number MM# # Required Description
Intel Server System SR1630BCR (1U Fixed) SR1630BCRNA (Includes power cord for North America) or SR1630BCR 904814 (Includes power cord) or 905461 1 Intel Server System SR1630BCR includes:
- One Intel Server Board S5500BCR
- One 1U riser card
- Two non-redundant system fans
- One fixed high-efficiently 400W power supply
- Two fixed 3.5" Hard Drive carriers
