Reliable, Intelligent Switching for Growing Businesses
Highlights
24 high-speed ports optimized for the network core or to support bandwidth-intensive applications
Power over Ethernet easily and cost-effectively powers wireless access points, video cameras, and other network-connected endpoints
Enhanced QoS helps ensure a consistent network experience and supports networked applications including voice, video, and data storage
Simplified, web-based management for easy installation and configuration

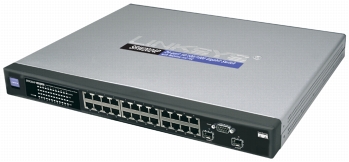

Figure 1. Cisco SRW2024P 24-Port Gigabit Switch: WebView/PoE
Product Overview
The Cisco SRW2024P 24-Port Gigabit Switch (Figure 1) allows you to expand your network securely. Web-based configuration of the switch is secured using SSL. User access is verified using 802.1X security with a RADIUS authentication mechanism and can also be controlled using MAC-based filtering.
Extensive quality of service (QoS) features make the solution ideal for real-time applications such as voice and video. The four priority queues, together with the weighted round-robin and strict priority scheduling techniques, facilitate efficient coexistence of real-time traffic with data traffic, allowing each to meet its QoS needs. Individual users or applications can be prioritized above others using various class of service options - by port, Layer 2 priority (802.1p), and Layer 3 priority (type of service [ToS] or differentiated services code point [DSCP[). Intelligent broadcast and multicast storm control minimize and contain the effect of these types of traffic on regular traffic. Internet Group Management Protocol (IGMP) snooping limits bandwidth-intensive video traffic to only the requestors without flooding all users. Incoming traffic can be policed and outgoing traffic can be shaped, allowing you to control network access and traffic flow.
Other features of the Cisco SRW2024P allow you to expand and grow your network of switches. Link aggregation allows multiple high-bandwidth trunks between switches to be set up. This also provides reliability, in that the system continues to operate if one of the links breaks. Spanning Tree Protocol (STP), Fast STP, and Rapid STP (RSTP) allow you to build a mesh of switches, increasing the availability of the system.
The rich features of the WebView management software include Simple Network Management Protocol (SNMP), Remote Monitoring (RMON), Telnet, and HTTP management options, allowing you to flexibly integrate and manage these devices in your network.
Automatic load sensing in the power control circuitry automatically detects Power over Ethernet (PoE) on the access point before providing power. Power feeding of Ethernet is limited for fixed 10BASE-T/100BASE-TX ports. The switch can provide maximum output power per PoE port up to 15.4W on 12 ports or 7.5W on 24 ports simultaneously. Each port has independent overload and short-circuit protection, with LED indicators for power status. The switch also supports IEEE802.3af MIB for PoE, IEEE 802.1d STP, IEEE 802.1w RSTP, Fast Linkover, and cable diagnostics.
Features
Twenty-four 10/100/1000 switched RJ-45 ports deliver up to 2 Gbps of throughput per port
Two shared 10/100/1000 mini Gigabit Interface Converter (mini-GBIC) ports
Switching capacity delivers wire-speed performance at 48 Gbps nonblocking capacity
WebView monitoring allows administrators to view the current status and configuration using their favorite web browser
PoE on twenty-four 10/100/1000 ports supplies up to 7.5W per port, or on twelve 10/100/1000 ports supplies up to the IEEE 802.3af maximum of 15.4W per port
Automatic medium dependent interface (MDI) and MDI crossover (MDI-X) cable detection
Port-based and 802.1Q-based VLANs support up to 256 VLANs-4096 range
Port trunking for up to 8 groups allows you to increase your bandwidth for each uplink or server connection
Port configuration settings for link, speed, auto MDI/MDIX, flow control, and more
Fully rack mountable using the included rack-mounting hardware
MAC address table supports up to 8000 MAC address entries
Optimal platform to support real-time applications such as voice and video by providing features like Internet Group Management Protocol (IGMP) snooping; multiple queues (4) with appropriate scheduling techniques; prioritization of traffic based on port, 802.1p, IP ToS/precedence/DSCP, TCP/User Datagram Protocol (UDP) port, and line rate forwarding mechanisms
Enhanced QoS functions including rate limiting for ingress/egress and per flow at 64 kbps granularity
Secure control via SSH for Telnet interface and SSL for HTTP interface
User/network security via 802.1X (with RADIUS authentication)
Advanced security ACL can be a restricted-access network by denying or rate-limiting based on L1-L4 information- for example, MAC address, Ethernet type, VLAN ID, IP address, protocol ID, or TCP/UDP port
Containment of storms - broadcast, multicast, and unknown unicast
Expandability and availability increased across multiple switches using link aggregation
Port trunking for up to eight groups with up to eight ports per group allows you to increase your bandwidth for each uplink or server connection
SNMP and RMON management expand your visibility options
Specifications
Table 1 contains the specifications, package contents, and minimum requirements for the Cisco SRW2024P 24-port Gigabit Switch.
Table 1. Specifications for the Cisco SRW2024P 24-port Gigabit Switch: WebView/PoE
Specifications
|
Ports
|
24 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T with 2 shared Small Form-Factor Pluggable (SFP) slots
|
Cabling type
|
Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T
|
LEDs
|
Power, Link/Act, Speed
|
Performance
|
Switching capacity
|
48 Gbps, nonblocking
|
MAC table size
|
8000
|
Number of VLANs
|
256 active VLANs - 4096 range
|
Management
|
Web user interface
|
Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
|
SNMP
|
SNMP versions 1 and 2c with support for traps
|
SNMP MIBs
|
RFC1213 MIB-2, RFC2863 interface MIB, RFC2665 Ether-like MIB, RFC1493 bridge MIB, RFC2674 extended bridge MIB (P-bridge, Q-bridge), RFC2819 RMON MIB (groups 1, 2, 3, and 9 only), RFC2737 entity MIB, RFC 2618 RADIUS client MIB
|
RMON
|
Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis.
|
Firmware upgrade
|
Web browser upgrade (HTTP)
Trivial File Transfer Protocol (TFTP) upgrade
|
Port mirroring
|
Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe.
|
Other management
|
RFC854 Telnet (menu-driven configuration)
SSH and Telnet management
SSL security for web user interface
Switch audit log
Dynamic Host Configuration Protocol (DHCP) client
BOOTP
Simple Network Time Protocol (SNTP)
Xmodem upgrade
Cable diagnostics
Ping
|
Security Features
|
IEEE 802.1X
|
802.1X - RADIUS authentication. MD5 encryption
|
Access control
|
Filtering: MAC based
MAC source address (SA)/destination address (DA)
IP SA/DA
Ethernet type field
Protocol
TCP/UDP port numbers
|
Availability
|
Link aggregation
|
Link aggregation using IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Up to 8 ports in up to 8 trunks
|
Storm control
|
Broadcast, multicast, and unknown unicast
|
Spanning Tree
|
IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, Fast Linkover
|
IGMP snooping
|
IGMP (version 1 and 2) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors.
|
QoS
|
Priority levels
|
4 hardware queues
|
Scheduling
|
Priority queuing and weighted round-robin (WRR)
|
Class of service (CoS)
|
Port based
802.1p VLAN priority-based CoS
IPv4 DSCP-based CoS
IPv4 ToS/IP precedence-based CoS
|
Layer 2
|
VLAN
|
Port-based and 802.1Q-based VLANs
Management VLAN
|
Head-of-line (HOL) blocking
|
HOL blocking prevention
|
Jumbo frame
|
Supports frames up to 10 KB
|
Standards
|
802.3 10BASE-T Ethernet, 802.3u 100BASE-TX Fast Ethernet, 802.3ab 1000BASE-T Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.3x flow control
|
Environmental
|
Dimensions
W x H x D
|
16.93 x 1.75 x 13.78 in.
(430 x 45 x 350 mm)
|
Unit weight
|
7.30 lb (3.3 kg)
|
Power
|
100-240V 0.5A
|
Certification
|
FCC Part 15 Class A, CE Class A, UL CSA (CSA22.2), CE mark, CB
|
Operating temperature
|
32 to 122F (0 to 45C)
|
Storage temperature
|
-4 to 158F (-20 to 70C)
|
Operating humidity
|
20% to 95%
|
Storage humidity
|
5% to 90%
|
Package Contents
|
Cisco SRW2024P 24-port Gigabit Switch
AC power cord
Rack-mounting kit with brackets and hardware
CD with user guide in PDF format
Online registration card
Console cable
|
Minimum Requirements
|
Web-based utility: Microsoft Internet Explorer version 5.5 or later
Category 5 Ethernet network cables
Operating system: Windows 2000, XP, or later
|
Product Warranty
|
5-year limited hardware warranty with return to factory replacement and 90-day limited software warranty
|
