All stock codes associated to this product
WL167GV3, WL-167GV3, 2054034
WL-167G V3
Wireless USB Adapter
150Mbps High Speed Transmission
EZ N First-class Performance

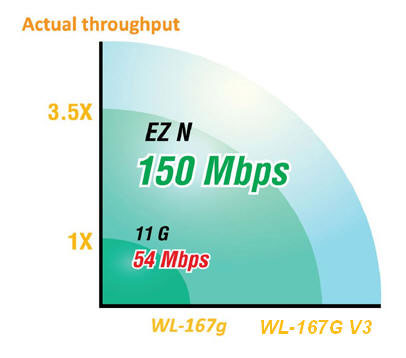

The ASUS WL-167G V3 provides superior wireless performance for your PC compared to legacy wireless 802.11g technology. The 150Mbps wireless speed can deliver consistent HD quality data streaming. In addition to providing better bandwidth and coverage, the 802.11n standard it's also backward compatible with 11g and 11b networks, ensuring existing networking hardware can be fully utilized.
Multiple OS Support
WL-167G V3 allows you to easily enjoy wireless networking over various platforms. It is compatible with common operating systems such as Windows, Linux, Mac, and even the newest Windows 7 OS.
Enhanced Reception

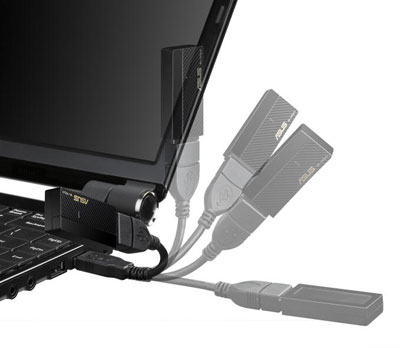

Adjust the WL-167G V3 position to get best performance, strong signal and better sensitivity with the adjustable USB extension cable

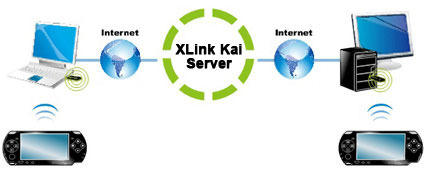

PSP XLink Kai Support
The WL-167g V3 delivers PSP XLink connection support. You can play system-link games over the Internet rather than just over your LAN while on-the-move.
*Team XLink is a collaborate project of gaming enthusiasts that offers software and services free of charge for console gameplay over the Internet. Visit teamxlink.co.uk to learn more and to join the XLink community.
Specifications
| Network Standard |
IEEE802.11b, IEEE802.11g, IEEE 802.11n |
| Interface |
USB 2.0 |
| Antenna |
on-board PCB antenna |
| Operating Frequency |
2.4 GHz |
| Operation Channel |
11 for North America, 13 for Europe, 14 for Japan |
| Data Rate |
802.11n: Tx: 150Mbps (Max) / Rx: 150Mbps (Max)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps |
| Output Power |
11b 17 +/- 1 dBm
11g 15 +/- 1 dBm
11n 13 +/- 1 dBm |
| LED Indicator |
Link, Activity |
| Modulation |
OFDM, CCK (11Mbps, 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) |
| Range |
Up to 150m |
| Management |
Xlink Kai( Win XP only) |
| Utilities |
Wireless setting:
Diagnose and configure your wireless network settings with on-line trouble shooting feature.
WPS Wizard:
High-speed wireless network is just a few clicks away |
| Receiver Sensitivity |
-84 dBm @11 Mbps
-70 dBm @54 Mbps
-67 dBm @64-QAM, 20MHz channel spacing
-64 dBm @64-QAM, 40MHz channel spacing |
| Certifications |
CE, FCC, IDA, IC, C-Tick, NCC, GOST |
| Physical Specifications |
66 (L) X 22(W) X 9(H) |
| Environmental Specification |
Temperature: 0 ~ 40 C ambient
Storage Temperature: -10 ~ 70 C ambient
Humidity: 5 ~ 90% and must be non-condensing |
| Package Contents |
USB Wireless Adapter *1
Adjustable USB cable * 1
Quick start guide*1
Support CD *1
Warranty Card*1 |
| Encryption |
64/128-bit WEP, TKIP, AES, WPA-PSK, WPA2-PSK |
