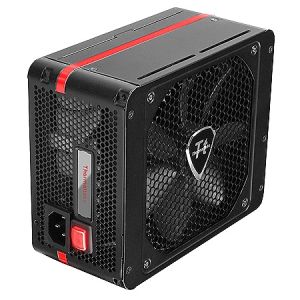

IMG 1 of 1
1 image(s) are available
for this product
Note: physical product may
vary from images displayed.
No Longer Available

Part Number:
153153
Usually Ships:
No Longer Available More info
(?) Brand:
Manuf No:
TT-TPG-650MPCAU
TTTPG650MPCAU
Shipping Weight:
3 KG (Includes product packaging)
Overview


Designed to meet the highest expectations and standards of today's extreme PC enthusiasts and system builders while pushing the limit of clean and reliable power delivery system utilizing advanced circuitry design that can only be found on Toughpower Grand series of high-efficiency power supplies. Smart cable management not only enables professional-looking system build, but also accelerates airflow through the computer case for highly efficient heat dissipation. All of the above are achieved while enabling the Toughpower Grand power supply to deliver 750W of continuous power output even operating in 50C environment, making it the Toughest power supply on the block.

Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.92 standards.

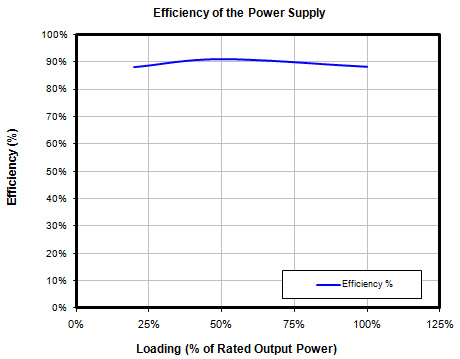

80 PLUS Gold certified extreme efficiency PSU series with 87-92% efficiency @ 20-100% load to cut down electric cost.
24/7 @ 50: Guaranteed to deliver 750W continuous power.
Pure aesthetic design with uncompromising performance.
Proprietary dual ball bearing 14cm flower-shape fan enables longer lifespan and lowers overall noise output by dramatically reducing bearing frictions.
100% 105 (221) Japanese made electrolytic capacitors: the foundation of a robust and reliable power source even under the harshest operating environment.
105C (221) Solid state capacitors not only last longer than electrolytic capacitors but also offer excellent durability and reliability.
Newly designed Active PFC circuitry provides higher efficiency during low-voltage input.
Double-forward switching circuitry: compared with traditional circuitry, double-forward switching circuitry offers low power loss and high reliability.
Unparalleled DC to DC converters for 3.3V and 5V outputs to reach high efficiency.
12Vin1: single +12V rail design providing up to 52A.
FanDelayCool Technology: allows 14cm fan to continue to operate 15-30 sec after system shuts-down to ensure all components are properly cooled.

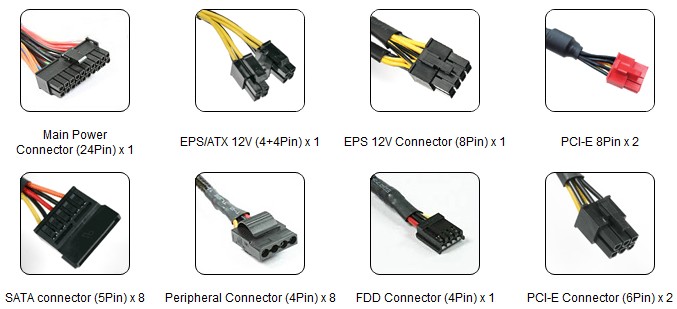

Multi-GPU ready: 2 x PCI-E 8pin & 2 x PCI-E 6pin for PCI-Express graphic cards.
Auto switching circuitry for universal AC input from 90-264V.
Active Power Factor Correction (PFC) with PF value of 0.95 at full load.
High reliability: MTBF>120,000 hours.
DIMENSION: 5.9(W) x 3.4(H) x 7.1 (L);150mm(W) x 86mm(H) x 180mm(L)
Built-in industry grade protections : Over Current, Over Power, Over Voltage, Under Voltage and Short-Circuit protection.
Safety / EMI Approvals: CE, TUV, FCC, UL, CUL, GOST and BSMI certified.


Features

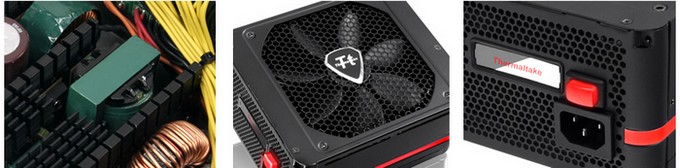

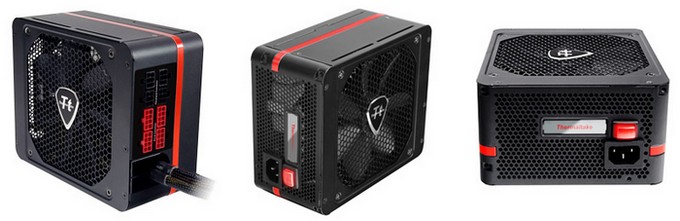

Pure Aesthetic Outer Chassis
The Toughpower Grand series' unparalleled aesthetic exterior design has set itself above other PSUs currently available on the market. The Toughpower Grand series certainly is one of Thermaltake's innovate hallmarks.

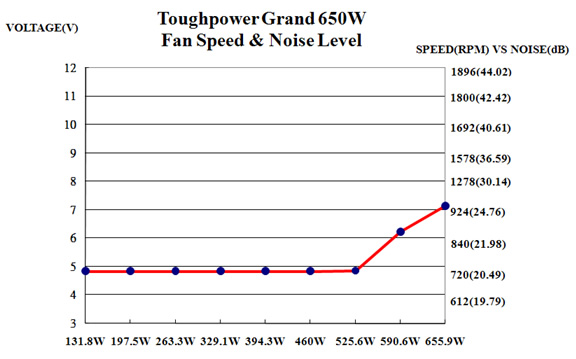

Proprietary flower shape 14cm fan

Enables longer lifespan and lowers overall noise output by dramatically reducing bearing frictions


The unique fan blade shape increases airflow and reduce overall noise level.
The patented flower-shape fan edge reduces up to 3% of total noise output.

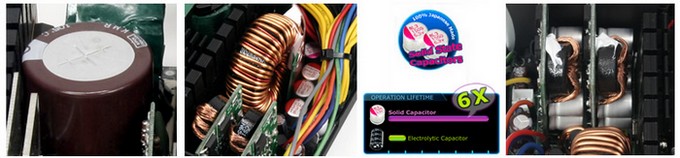

High Quality Japanese Made Electrolytic & Solid Capacitors

Toughpower Grand features 105/221 Japanese made electrolytic capacitors & solid State capacitors with low ESR, which greatly improves the durability and offers the highest stability and reliability.



DC-DC Converter & Double Forward Circuit

Unparalleled DC to DC converters for 3.3V & 5V outputs reaches high efficiency and double forward circuit offers low power loss and high reliability.

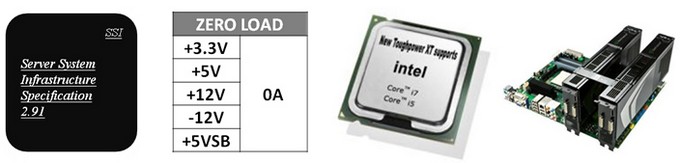

C6 State CPU Mode

CPU load range from Max. to only 1W.

Nvidia & ATI/AMD multi graphic cards configuration

Hybrid mode will cause graphic cards load range from Max. to only 1W. Toughpower Grand series are able to maintain an ultra tight DC regulation to support the C6 state CPU mode and the hybrid graphic card power saving mode by its ZERO LOAD (0W) Design.



Cable management design improves internal airflow and reduce clutter.





Toughpower Grand saves energy through its high energy efficiency of over 90% and is 80 PLUS Gold certified


ErP Ready
Toughpower Grand fulfils the EU guideline for ErP (Energy-related Products) that are scheduled to apply starting in 2010.

Supports Energy Star 5.0* energy standard:
Toughpower Grand is suitable for use in Energy Star-compatible computers.

Supports Intel Deep Power Down C6 Status:
Toughpower Grand helps your PC system operate more power efficiently.

Corresponds to the EU directives on WEEE and RoHS:
Thermaltake considers its full impact on the environment during manufacturing and maintains green facilities to ensure Toughpower Grand meets WEEE & RoHS requirements.

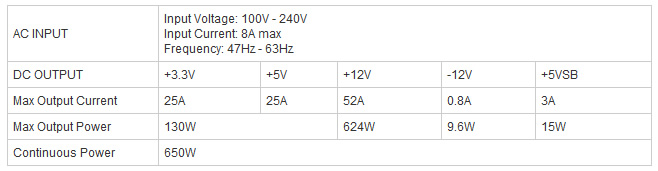

Specifications
GENERAL INFO Model TPG-650M
  Type Intel ATX 12V 2.3 & EPS 12V 2.91
Max. Output Capacity 650W
Peak Output Capacity 750W
Color Black
Dimension ( W / H / D ) 150mm(W) x 86mm(H) x 180mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time 18msec at 80% of full load at 230Vac input
AC INPUT Input Current 115Vac / 8A max. 230Vac / 4A max
  Input Frequency Range 47Hz ~ 63Hz
Input Voltage 100 VAC- 240 VAC
ENVIRONMENTAL Operation Temperature 10 to +50
  Operating Humidity 20% to 90%,non-condensing
Storage Temperature -20 to +70
Storage Humidity 5% to 95%, non-condensing
Cooling System 14cm dual ball bearing Fan: 1900RPM 10%
MISCELLANEOUS Efficiency 88%~90% @ 115V input
Over 90% @ 230V input
  MTBF 120,000 hrs minimum
Safety Approval CE, TUV, FCC, UL, CUL, GOST, BSMI

No additional files, specification sheets, guides or documentation found for product.

No related products found.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]
