ASUS PIKE 2008 SAS-II/SATA-III RAID Card - 8 Ports, LSISAS 2008
  • RAID 0,1,10,1E

IMG 1 of 2
No Longer Available
Part Number:
157240
(?) Brand:
ASUS Web Site
Manuf No:
ASPIKE-2008
ASPIKE2008
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ASPIKE2008, ASPIKE-2008
***Only Compatible with Pike Compatible Asus Motherboards***
Motherboard support:
*Z8PH-D12 SE/QDR *Z8PH-D12/IFB *Z8PE-D18 *Z8PE-D12X
*Z8PE-D12 *Z8NR-D12 *Z8NH-D12 *Z8NA-D6 *P7F-E *KGPE-D16

System Support:
*RS704D-E6/PS8 *RS702D-E6/PS8 *RS700D-E6/PS8
*RS700D-E6/RS8 *RS700-E6/ERS4 *RS500-E6/PS4
*RS720-E6/RS12 *RS520-E6/ERS8 *RS300-E6/PS2
*RS300-E6/PS4 *TS700-E6/RS8 *TS500-E6/PS4 *TS300-E6/PS4

PIKE 2008

Flexible storage options for end users

The ASUS PIKE 2008 allows you to create RAID 0, RAID 1, RAID 10 and RAID 1E set from SAS hard disk drives connected to the SAS connectors on the motherboard.

Flexible storage options for end users

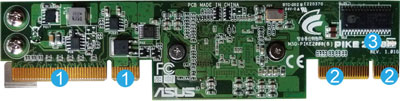

1. ASUS PIKE interface 1 : PCI-E x8
2. ASUS PIKE interface 2: 8-port SAS signal with SGPIO interface*
3. SAS RAID card status LED (lights up and blinks to indicate that the card is working normally)

* The SGPIO interface is used for visiblity into drive activity, failure and rebuild status, so that users could build high-performance and reliable storage systems. Refer to the motherboard manual for detailed information about usingthe SGPIO connectors on the motherboard.

  • Optional PIKE 2008 (8-port SAS) are available for SAS RAID support
  • PIKE card enables on-demand upgrade, and allows customers to invest on basic SKUs for current use
  • Reduce qualification resource and inventory management efforts
  • Multiple I/O solutions are available without occupying slot 6 in 1U chassis

Package Content

  • ASUS PIKE 2008 SAS RAID card
  • 4-port SATA to SAS cable x 2 (Optional)
  • SGPIO cable x 2
  • Support CD
  • User guide

System Requirement

  • Workstation or server motherboard with PIKE RAID card slot
  • SAS or SATA hard disk drives and cables
  • Supporting Windows and Linux Operating systems
  • Appropriate thermal solution
  • Certified power supply module

Specifications

Chipset LSISAS 2008
Interface ASUS PIKE Interface
Ports 8 ports
RAID levels RAID 0/ RAID 1/ RAID 10/ RAID 1E
Devices supported SATA III and SAS II devices
Data transfer rate SATA III and SAS II 6 Gb/s per PHY
Form factor 6.44 in x 1.57 in (1U compatible)
Operating Systems Support Windows 2008 R2 / SP2
Windows 2003 SP2
Windows 7
Red Hat Enterprise Linux 5.5 / 4.8
SuSE Linux Enterprise Server 10.3 / 11
Free BSD 8.0
Cent OS 5.4
ESX 4.0 UP1
ESXi 4.0
Note Motherboard support:
*Z8PH-D12 SE/QDR *Z8PH-D12/IFB *Z8PE-D18 *Z8PE-D12X
*Z8PE-D12 *Z8NR-D12 *Z8NH-D12 *Z8NA-D6 *P7F-E *KGPE-D16

System Support:
*RS704D-E6/PS8 *RS702D-E6/PS8 *RS700D-E6/PS8
*RS700D-E6/RS8 *RS700-E6/ERS4 *RS500-E6/PS4
*RS720-E6/RS12 *RS520-E6/ERS8 *RS300-E6/PS2
*RS300-E6/PS4 *TS700-E6/RS8 *TS500-E6/PS4 *TS300-E6/PS4

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1-year RTB

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.
