All stock codes associated to this product
F1DN104D, 722868668801
DVI-D Secure KVM Switch
Validated to NIAP Common Criteria EAL4+
DVI-D Secure 4-Port KVM Switch
DVI-D Secure KVM Features
Validated to NIAP Common Criteria EAL4+

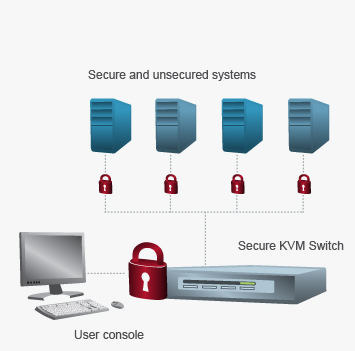

The Secure KVM Switch uses a dedicated processor for each port,
eliminating the possibility of data transfer between connected systems.
DVI-D with Audio
supports DVI-D video, USB connectivity and audio/microphone devices
High-Resolution Support
supports high-resolution requirements with DVI-D Dual-Link support
Dedicated processor per system port
maintains separation between secure/unsecured systems; protects data and prevents data transfer among computers
Circuits soldered directly to circuit board
prevents tampering with circuit board level components
No memory buffer
eliminates unintentional transfer of keystrokes or other data when switching between systems
Tamper-evident tape on enclosure
contains non-programmable firmware and a visual security design indicator that assures security when intact
ALC_FLR.3 certified
control standards for quality and security assurance (NIAP EAL4+)
Protection Profile v1.2 conformance
meets the latest security standards released in August 2008 for peripheral sharing devices
Technical Specifications
|
F1DN102D |
F1DN104D |
Users |
1 |
1 |
Ports |
2 |
4 |
Dimensions |
11 (W) x 1.75 (H) x 6 (L) in |
11 (W) x 1.75 (H) x 6 (L) in |
Weight |
2.5 lbs (1.1 kg) |
2.5 lbs (1.1 kg) |
Enclosure |
Metal with plastic faceplate |
Metal with plastic faceplate |
Keyboard/Mouse Ports |
USB |
USB |
Video Output |
Digital (DVI-D Dual Link) |
Digital (DVI-D Dual Link) |
Auido-Microphone Input/Output |
3.5mm/female |
3.5mm/female |
Max Resolution |
2560x1600 |
2560x1600 |
Direct-Port Selectors |
2 |
4 |
LED indicators |
2 |
4 |
|
POWER/ENVIRONMENT |
Power Requirements |
5V DC, 3A |
5V DC, 3A |
Operating Temperature |
32 to 104 F (0 to 40 C) |
32 to 104 F (0 to 40 C) |
Storage Temperature |
-4 to 140 F (-20 to 60 C) |
-4 to 140 F (-20 to 60 C) |
Warranty |
3 years |
3 years |
