Cougar 1050W 1050GX - ATX 12V, 140mm Fan, Modular Cables, 80 Plus Gold, SLI Ready
  • 12x SATA, 6x PCI-E 8-pin

IMG 1 of 1
No Longer Available
Part Number:
159654
(?) Brand:
Cougar
Manuf No:
Cougar 1050GX
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
, Cougar1050GX, Cougar 1050GX

Cougar GX 80 plus Gold ATX Power Supply

Product Code: Cougar 1050GX

  • M/B Supports: ATX form factor P4, Multi Core, Core i3,Cor i5, Core i7
  • Graphic Card Supports:single / double latest high end all brands
  • DC output: 1050W
  • Efficiency: over 90%
  • Connectors:24+4+1x4+1x8+7xPATA+12xSATA+1xFDD+6x 8pins (6+2) PCI.
  • DC Current:3.3V/25A, 5V/25A, 12V1/25A, 12V2/25A, 12V3/25A, 12V4/25A, 5VSB/4A, -0.5V:0.5A
  • Cable Management: Sleeving and Modular
  • Noise level: below 19dbs
  • AC input: full range
  • Cooling fan:14 CM silent fanx1
  • Rear: LED on/off Switch
  • Dimension:180x150x86 mm

    Safety function

    • UVP (Undervoltage protection)
      If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.
    • OVP (Overvoltage protection)
      If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.
    • SCP (Short-circuit protection)
      In the case of a short-circuit this feature prevents damage to the core components of the PSU and its system components.
    • OPP (Overload protection)
      If the system is oversized and requires more power from the PSU than it can perform, this protection function is activated.
    • OCP (Overcurrent protection)
      If the load on a single line is higher than indicated, the PSU automatically switches off.
    • OTP (Overtemperature protection)
      If the temperature is too high, the PSU automatically switches off.


    80 PLUS GOLD CERTIFICATION



    Up to 93% of efficiency, compliant with 80-PLUS GOLD efficiency requirement . Due to the extremely high efficiency of the COUGAR GX-series you can reduce your electricity costs in spite of high performance.

    RST (RAPID SWITCH TECHNOLOGY) POWER

    COUGAR GX provide highest efficiency performance and less wattage loss.

    CLC FILTER DESIGN



    COUGAR GX CLC filter design efficiently suppress Ripple/Noise 1%

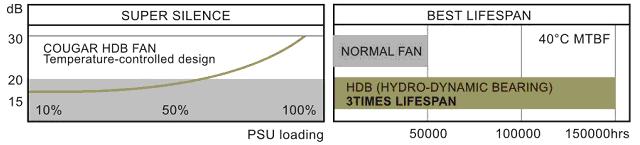

    HDB (Hydro-Dynamic Bearing) 14cm FAN

    Advanced HDB (HYDRO-Dynamic Bearing) fan provide best lifespan and super silent performance. Temperature-controlled design adapts its rotating speed to the PSU temperature. Even on its highest rotating level the fan is still quiet enough to be barely noticeable.


    140mm FAN DESIGN

    Better CFM means fan can provide better air flow and cooling performance.
    14cm and 12cm fan can provide much better air flow just require lower rpm than 8cm fan, therefore, 140mm fan is much better cooling performance, but is extremely low noise and longer life of the fan.

    DC to DC TECHNOLOGY

    DC-DC technology for switching PSU has smaller volume, the highest efficiency, the most stable performance and perfect regulation.(3%)

    105C JAPANESE CAPACITORS

    COUGAR use the highest durable 105C Japanese capacitors provide uncompromised performance and reliability, delivering 4 times the lifespan of conventional 85C rated capacitors.

    HIGHEST DURABLE & RELIABLE SOLID CAPS FOR 12V,3.3V,5V

    The best solution for a High-End PSU by using solid caps for 12Vs, 3.3V, 5V, solid caps provide highest efficiency, best reliability, and extend power lifespan.


    FLEXIBLE CABLE MANAGEMENT

    The modular cables that reduce air friction help maximize airflow through the PC case. The modular design also simplifies installation as it allows unprecedented flexibility in using only those cables which are needed.

    Tecnical details and special features
    • MAXIMUM EFFICIENCY
      Up to 93% of efficiency, compliant with 80-PLUS GOLD efficiency requirement .
    • RST (RAPID SWITCH TECHNOLOGY) POWER
      COUAGR GX provide highest efficiency performance with Rapid Switch Technology.
    • DC-DC TECHNOLOGY
      DC-DC technology provides highest efficiency, most stable performance, and perfect regulation (Regulation <3%).
    • CLC FILTER DESIGN
      CLC filter design efficiently suppress Ripple/Noise 1%
    • COMPATIBLE WITH LATEST PC-TECHNOLOGY
      Supports the newest specifications of ATX12V. Created for usage with current and next-generation multi-core CPU platforms.
    • SUPPORT MULTI-GPU TECHNOLOGY
      Support PCI Express 2.0 next-generation graphic card with 8(6+2)pin PCI-E connector.
    • HIGHEST DURABLE & RELIABLE SOLID CAPS FOR 12V,3.3V,5V
      The best solution for a High-End PSU by using solid caps for 12Vs, 3.3V, 5V, solid caps provide highest efficiency, best reliability, and extend power lifespan.
    • 105C JAPANESE CAPACITORS
      COUGAR use highest durable 105C Japanese capacitors providing uncompromised performance and reliability and delivering 4 times the lifespan of conventional 85C rated capacitors.
    • HIGH PERFORMANCE AT 50C
      Non-stop high performance and full rated wattage at 50C/122F ambient temperature.
    • HDB (Hydro-Dynamic Bearing) 14cm FAN
      Advanced HDB (HYDRO-Dynamic Bearing) fan provide best lifespan and super silent performance. Temperature-controlled design adapts its rotating speed to the PSU temperature. Even on its highest rotating level the fan is still quiet enough to be barely noticeable.
    • DYNAMIC MULTI-12V
      Automatic dynamic load distribution on multi-12V line provide power separately to the GPU and the CPU. If you are not using all output lines, the PSU automatically reroutes needed power from unused lines. This improves the performance and safety of the 12V lines considerably for systems with high-end graphic cards in SLI or CrossFire mode and provides high voltage stability to keep components safe.
    • FLEXIBLE CABLE MANAGEMENT
      The modular cables that reduce air friction help maximize airflow through the PC case. The modular design also simplifies installation as it allows unprecedented flexibility in using only those cables which are needed.
    • COMPLIANT WITH LATEST EUROPEAN DIRECTIVE 2005/32/EG (EuP)
      In Standby consumption is 0.3W, compliant with economy-friendly electrical equipment.
    • SUPPORTS THE ENERGY STAR 5.0
      Compatible with Energy star 5.0 computer system.
    • FULL PROTECTIONS WITH OCP, SCP, OVP, UVP, OPP, OTP
      • MAXIMUM EFFICIENCY
        Up to 93% of efficiency, compliant with 80-PLUS GOLD efficiency requirement .
      • RST (RAPID SWITCH TECHNOLOGY) POWER
        COUAGR GX provide highest efficiency performance with Rapid Switch Technology.
      • DC-DC TECHNOLOGY
        DC-DC technology provides highest efficiency, most stable performance, and perfect regulation (Regulation <3%).
      • CLC FILTER DESIGN
        CLC filter design efficiently suppress Ripple/Noise 1%
      • COMPATIBLE WITH LATEST PC-TECHNOLOGY
        Supports the newest specifications of ATX12V. Created for usage with current and next-generation multi-core CPU platforms.
      • SUPPORT MULTI-GPU TECHNOLOGY
        Support PCI Express 2.0 next-generation graphic card with 8(6+2)pin PCI-E connector.
      • HIGHEST DURABLE & RELIABLE SOLID CAPS FOR 12V,3.3V,5V
        The best solution for a High-End PSU by using solid caps for 12Vs, 3.3V, 5V, solid caps provide highest efficiency, best reliability, and extend power lifespan.
      • 105C JAPANESE CAPACITORS
        COUGAR use highest durable 105C Japanese capacitors providing uncompromised performance and reliability and delivering 4 times the lifespan of conventional 85C rated capacitors.
      • HIGH PERFORMANCE AT 50C
        Non-stop high performance and full rated wattage at 50C/122F ambient temperature.
      • HDB (Hydro-Dynamic Bearing) 14cm FAN
        Advanced HDB (HYDRO-Dynamic Bearing) fan provide best lifespan and super silent performance. Temperature-controlled design adapts its rotating speed to the PSU temperature. Even on its highest rotating level the fan is still quiet enough to be barely noticeable.
      • DYNAMIC MULTI-12V
        Automatic dynamic load distribution on multi-12V line provide power separately to the GPU and the CPU. If you are not using all output lines, the PSU automatically reroutes needed power from unused lines. This improves the performance and safety of the 12V lines considerably for systems with high-end graphic cards in SLI or CrossFire mode and provides high voltage stability to keep components safe.
      • FLEXIBLE CABLE MANAGEMENT
        The modular cables that reduce air friction help maximize airflow through the PC case. The modular design also simplifies installation as it allows unprecedented flexibility in using only those cables which are needed.
      • COMPLIANT WITH LATEST EUROPEAN DIRECTIVE 2005/32/EG (EuP)
        In Standby consumption is 0.3W, compliant with economy-friendly electrical equipment.
      • SUPPORTS THE ENERGY STAR 5.0
        Compatible with Energy star 5.0 computer system.
      • FULL PROTECTIONS WITH OCP, SCP, OVP, UVP, OPP, OTP
