Features
80-PLUS CERTIFICATION
Up to 85% of efficiency
COMPATIBLE WITH LATEST PC-TECHNOLOGY
Created for usage with current and next-generation multi-core CPU platforms
SUPPORT MULTI-GPU TECHNOLOGY
Support PCI Express 2.0 next-generation graphic card with 6pin or 8(6+2)pin PCI-E connector
ULTRA-QUIET & TEMPERATURE-CONTROLLED 120mm FAN
Extremely Low Noise Level, fan speed automatically governed based on the temperature
INTEGRATED AIR INLET DESIGN
Optimal air-dynamical design, lead to more silent operation
DYNAMIC DUAL-12V
Provide high voltage stability to keep components safe
ACTIVE POWER FACTOR CORRECTION (ACTIVE PFC)
PF value up to 99%, provides clean and reliable power
COMPLIANT WITH ErP Lot 6
Energy consumption in Standby is < 0.5W, compliant with economy-friendly electrical equipment
SUPPORTS THE ENERGY STAR
FULL PROTECTIONS WITH OCP, SCP, OVP, UVP, OPP
Details
80 PLUS CERTIFICATION
Up to 85% of efficiency, compliant with 80-PLUS efficiency requirement.
ULTRA-QUIET & TEMPERATURE-CONTROLLED FAN
All PSUs of the COUGAR RS-series are equipped with quiet 120mm fan(super low voltage & super low RPM), which adapts its rotating speed to the PSU temperature. Even on its highest rotating level the fan is still quiet enough to be barely noticeable.
Specification
Rating
|
Item Name
|
Input Characteristics
|
Output Characteristics
|
|
Voltage
|
Frequency
|
Input Current
|
+3.3V
|
+5V
|
+12V1
|
+12V2
|
-12V
|
+5Vsb
|
Total
Output
|
|
RS 450
CGR R-450
|
100-240Vac
|
50-60Hz
|
8A
|
24A
|
15A
|
26A
|
20A
|
0.3A
|
3A
|
450W
|
|
120W
|
420W
|
|
RS 550
CGR R-550
|
100-240Vac
|
50-60Hz
|
10A
|
24A
|
20A
|
28A
|
22A
|
0.3A
|
3A
|
550W
|
|
120W
|
516W
|
|
RS 650
CGR R-650
|
100-240Vac
|
50-60Hz
|
10A
|
24A
|
20A
|
30A
|
24A
|
0.3A
|
3A
|
650W
|
|
130W
|
624W
|
|
RS 750
CGR R-750
|
100-240Vac
|
50-60Hz
|
10A
|
24A
|
20A
|
30A
|
30A
|
0.3A
|
3A
|
750W
|
|
150W
|
672W
|

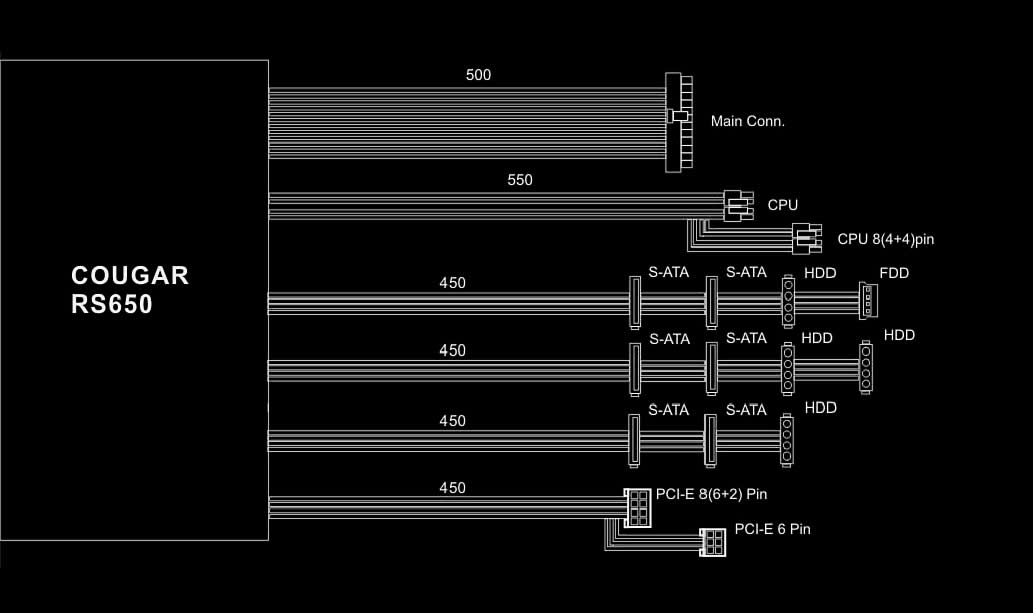

Cables & Connectors
|
Model
|
Main
Connector
|
CPU
Connector
|
Floppy
Connector
|
Peripheral
Connector
|
S-ATA
Connector
|
PCI-E
Connector
|
PCI-E 6+2pin
|
|
Pin
|
24(20+4)
Pins
|
8 (4+4) Pins/
8 Pins
|
4 Pins
|
4 Pins
|
5 Pins
|
6 Pins
|
8(6+2) Pins
|
|
RS 450
|
1
|
1 / 0
|
1
|
3
|
5
|
1
|
0
|
|
RS 550
|
1
|
1 / 0
|
1
|
4
|
6
|
1
|
1
|
|
RS 650
|
1
|
1 / 1
|
1
|
4
|
6
|
1
|
1
|
|
RS 750
|
1
|
1 / 1
|
1
|
3
|
8
|
2
|
2
|
Dimension
Dimension (L*W*H) mm: 140 x 150 x 86
Safety function
UVP (Undervoltage protection)
- If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.
OVP (Overvoltage protection)
- If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.
SCP (Short-circuit protection)
- In the case of a short-circuit this feature prevents damage to the core components of the PSU and its system components.
OPP (Overload protection)
- If the system is oversized and requires more power from the PSU than it can perform, this protection function is activated.
OCP (Overcurrent protection)
- If the load on a single line is higher than indicated, the PSU automatically switches off.
