Netstor Storage Tower - Black/Silver
  • 4-Bay Multilane to SAS/SATA Enclosure, JBOD, 2x60x60x15mm Fans

IMG 1 of 0
No Longer Available
Part Number:
159689
(?) Brand:
Netstor Web Site
Manuf No:
NS-750S
NS750S
Shipping Weight:
7 KG (Includes product packaging)
Estimate Shipping
Date Added:
25/11/2010
Details Files Finance Images & Video
All stock codes associated to this product
, NS750S, NS-750S
NS750S

Tower 4-bay Multilane to SAS/SATA Enclosure

Netstor's 750 series is a stylish 4-bay, hot-swappable, SAS/SATA compatible external enclosure. The housing made from an elegant aluminum with anodized surface for maximum cooling and the structure made from heavy duty material for solid protection ondisks. The 750 series is built-in directly SAS/SATA 6.0Gpbs (bacKword with 3.0Gb/s) backplane design with no internal cable for best performance and superior airflow and the host connection is designed withthe new interface technology of Multi-lane (SFF8470) in up to 10Gbps bandwidth for 4-disks in single connectivity.

Features
  • Supports SAS/SATA (3/6 Gbps)
  • Aluminum housing, anodized surface, benefits for cooling and durability
  • Backplane design for four removableSAS/SATA drive trays
  • Built-in fans for self-contained ventilation
  • Individual key lock of each HDD tray for physical security
  • LED indicators for power and activity on each HDD tray
  • Environmental Monitoring with Power/FAN/TEMP LEDs andmutable buzzer alarm.
Specifications

HostInterface SAS/SATA 3G or 6G (oneMultilaneX4 connector)
HDDInterface SAS/SATA (3.0Gb/s or 6.0Gb/s)

Data Transfer Rate

 SAS or SATA 3/6 Gbps
LED Display

White- Power on indicator
Blue -Activity (HDD Accessing) indicator
LED Display for Environmental Monitoring

POWER on LED - white
FAN normal green; fail red (too slow rpm or stop)
TEMP normal green; over 55C red
Dimension

(D):23.15cm (W):15.68cm (H):20.97cm
Material Anodized Aluminum with Mirror Acrylic plastic front panel & Plastic tray face
Power Supply 220W (High reliability of IPC form-factor)
Input: 90 230 VAC 50- 60 Hz
Output: +5V and +12V DC
Cooling

Two 60 x 60 x 15 mm Cooling Fans
(Without any HDD installed, fan don't spin up.)
O.S. support OS Independent

Package Content

Enclosure x 1
HDD Tray x 4
MultilaneCable x 1 (Optional)
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screw x 16
Key for HDD tray x 2

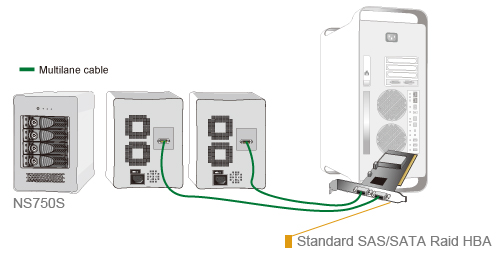

Application Diagram
Desktop 4 bay SAS/SATA enclosure
