Netstor Storage Tower - Black/Silver
  • 8-Nay Multilane SAS/SATA Enclosure, JBOD, 4x60x60x15mm Fan

IMG 1 of 0
No Longer Available
Part Number:
159690
(?) Brand:
Netstor Web Site
Manuf No:
NS-760S
NS760S
Shipping Weight:
12 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
, NS760S, NS-760S
NS760S
Tower 8-bay Multilane SAS/SATA Enclosure

NS760Sis a8 Bay External Hot-SwapSAS/SATA Enclosure. It provides users aflexible SAS/SATA backplane soltion for compatible SAS or SATA 3.0/ 6.0 GbpsHDDand can be connected with Host SAS/SATAHBAto configure NS760S with Raid level protectionfor high performance external datastorage solution for HD of 1080iVedio Editing or any high resolution video platform.This 8 Bay external SAS/SATA JBOD is designed with two convenience of Multilaneinterface brings users an easy installation and a fast data transmission experience.

Features

  • Supports SAS/SATA (3/6 Gbps)
  • Aluminum housing, anodized surface, benefits for cooling and durability
  • High performance SAS/SATA Backplane design for8 removable SAS/SATA drive trays
  • Built-in fans for self-contained ventilation
  • Individual key lock of each HDD tray for physical security
  • LED indicators for power and activity on each HDD tray
  • Environmental Monitoring with Power/FAN/TEMP LEDs andmutable buzzer alarm.
    •
    Specifications

    HostInterface SAS/SATA 3Gb/s or 6 Gb/s
    HDDInterface SAS orSATA 3.0 Gbps / 6.0 Gbps

    Data Transfer Rate

    SASor SATA 3/6 Gbps
    Hot-Swap Both on Host and Device
    LED Display

    White- Power on indicator
    Blue - Busy (HDD Accessing) indicator
    LED Display for Environmental Monitoring

    POWER on LED - white
    FAN normal green; fail red (too slow rpm or stop)
    TEMP normal green; over 55C red
    Dimension

    (D):23.15cm (W):15.68cm (H):31.0cm
    Material Anodized Aluminum with Mirror Acrylic plastic front panel & Plastic tray face
    Power Supply 300W (High reliability of IPC form-factor)
    Input: 90 230 VAC 50- 60 Hz
    Output: +5V and +12V DC
    Cooling

    Four60 x 60 x 15 mm Cooling Fans
    (Without any HDD installed, fan don't spin up.)
    O.S. support OS Independent

    Package

    Enclosure x 1
    HDD Tray x 8
    MultilaneCable x 2 (Optional)
    Power Cord x 1
    Manual CD-ROM x1
    Hard Disk Drive mounting screw x 32
    Key for HDD tray x 2

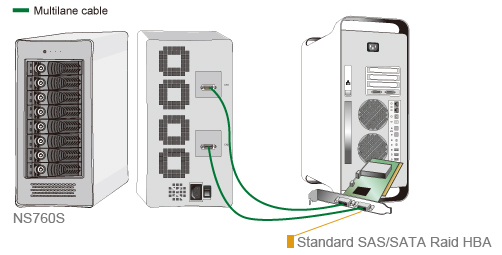

    Application Diagram

    Desktop 8 bay SAS/SATA enclosure

    No additional files, specification sheets, guides or documentation found for product.

    Warranty: 1 Year Return to Base

    Full manufacturers warranty details are available at the manufacturers (Netstor) web site.
