Netstor NA341A Rackmount RAID Chassis - Black
  • 8x3.5" SAS/SATA HDD, 2x6x6x2.5mm Fan, Enclosure, JBOD

IMG 1 of 1
No Longer Available
Part Number:
159711
(?) Brand:
Netstor Web Site
Manuf No:
NA-341A
NA341A
Shipping Weight:
12 KG (Includes product packaging)
Estimate Shipping
Date Added:
25/11/2010
Details Files Finance Images & Video
All stock codes associated to this product
NA341A, NA-341A
NA341A

2U- 8bay Rackmount JBOD Chassis

NA341Ais an external 2U-8 Bay Hot-SwapSAS/SATARackmount Enclosure. It provides users aflexible solution for up to 8 SAS or SATA HDDand high performance external datastorage solution for HD of 1080i Video Editing or any high resolution video platform.This 2U 8 Bay external SAS/SATA JBOD is designed with two convenience ofExternal miniSAS(SFF8088) interface brings users an easy installation andenjoyfast data transmission experience.

Features
  • Supports SAS/SATA (3/6 Gbps)
  • 2* miniSAS interface for easy connection
  • Backplane design forup to 8removable SAS/SATA drive trays
  • Fan coolerfor self-contained ventilation
  • Individual key lock of each HDD tray for physical security
  • LED indicators for power and activity on each HDD tray
  • Environmental Monitoring with FAN/TEMP LEDs andmutable buzzer alarm.
Specifications

HostInterface SAS/SATA 3/6 Gbps (TwominiSAS connector)
HDDInterface SAS/SATA 3.0/6.0G bps

Data Transfer Rate

 SAS/ SATA 3/6 Gbps
LED Display

White- Power on indicator
Blue - Busy (HDD Accessing) indicator
LED Display for Environmental Monitoring

FAN normal green; fail red (too slow rpm or stop)
TEMP normal green; over 55C red
Dimension

(W):48.2 cm (H):8.85 cm (D):45.6 cm
Material
Heavy-duty cold-rolled steel
Power Supply SINGLE PSU
Cooling Twoset of 6 x6x2.5cm Hot-Swappable Fans
O.S. support OS Independent

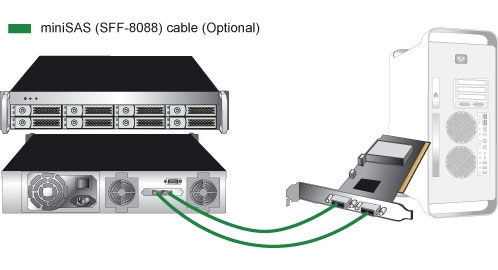

External SAS Connection Diagram

Package Content

Enclosure x 1
HDD Tray x 8
mini SASCable x2 (Optional)
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screw x 32
Key for HDD tray x 2
