2U 12-bays External PCI-E to SAS/SATA RAID Chassis (PCI e )
Product Code: NA322A-R
With the innovative architecture, NA322A is designed to allow you plugging any standardSAS or SATA PCI-e Raid controller directly into its internal PCI-e slot and use its high speed exernal PCI-Express x8(20Gbps) as the host interface. Moreover, NA322A provides up to 123.5" Hard Drives capacity with highest performance, fewer and lower-cost components. The substantial External PCI-e cable connection also gives system operations the high reliablity.
How to build a fast 20Gb PCIe 12 bays SAS storage system :
You only need to buy one of any brand ofSAS RAIDPCI HBA that supports 12 SAS orSATAIIHDD to use thisstorage chassis
Features
- External 2U-12 bay Rackmount Chassis
- External PCI-e (PCI Express) x 8 Host Interface
- Supports SAS/SATA (3Gbps)
- Up to12 Removable SAS/SATA Drive Trays
- Optinal Dual Hot-Swappable Power Supplies
- LED Indicators for Power and Activity on each HDD Tray
- Environmental Monitoring with FAN/TEMP LEDs andmutable buzzer alarm
Specifications
| HostInterface |
External PCI-e (PCI-Express) x8 |
| HDDInterface |
SAS/SATA (3/6G) |
|
Data Transfer Rate
|
Up to 20Gbps |
| Hot-Swap |
Both on Host and Device |
| LED Display(Tray) |
Green - Power on indicator
Blue - Busy (HDD Accessing) indicator
|
| LED Display for Environmental Monitoring |
FAN normal Green; fail Red (too slow rpm or stop)
TEMP normal Green; over 55C Red
|
| Dimension |
(W):48.2 cm (H):8.85 cm (D): 55.9 cm
|
| Material |
Heavy-duty cold-rolled steel
|
| Power Supply |
400Wx2 mini-Redundant
Input: 90 230 VAC 50- 60 Hz
Output: +5V and +12V DC
|
| Cooling |
Two75 x 75 x 28 mm Blowers |
| O.S. support |
OS Independant(OS will be provided from the PCI-e Raid Control card manufacturer) |
Package Content
Enclosure x 1
HDD Tray x 12
PCI-Express x8 Host Adaptor x 1
External PCI-e x8 cable (1.5 meter) x 1
Internal miniSAS(SFF8087) to miniSAS(SFF8087), 30cm x3
Power Cord x1
Hard Disk Drive mounting screw x 48
Key for HDD tray x 2
| Host Requirement and Cable length available |
|
- Apple Mac Pro or PC workstation with one available PCI-e x8 slot
- External PCI-e cable available length - up to 5 Meter
|
|
|
- Compatible with all 16 ports of SAS/SATA PCI-e controller
| Model No. |
No. of Drives
|
Bus Type
|
HDD Support
|
| Adaptec RAID 31205 |
12
|
PCI-e x8
|
SAS/SATA
|
| Adaptec RAID 51245 |
12
|
PCI-e x8
|
SAS/SATA
|
| 3Ware 9650SE-12ML |
12
|
PCI-e x8
|
SATA
|
| Areca ARC-1231ML |
12
|
PCI-e x8
|
SATA
|
| Areca ARC-1680ix-12 |
12
|
PCI-e x8
|
SAS/SATA
|
|
HighPoint
RocketRAID2340
|
16
|
PCI-e x8
|
SATA
|
|
Promise
SuperTrak EX12350
|
12
|
PCI-e x8
|
SATA
|
|

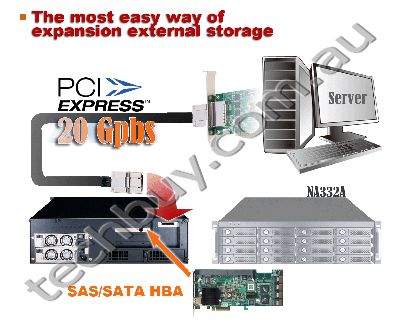

The following adaptor (come with it)is to be installed to your rear PCI slotin your server,
then connect PCI e external cable (come with it)to the back of NA322A storage system.

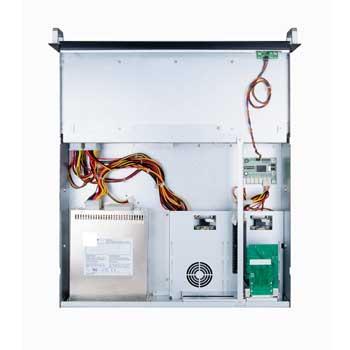

Youneed toinstall a 12 ports PCI SAS(RAID) HBA controllerin NA322A storage system (where is next to PSU) toconnect your 12xHDD via internal 8087 mini SAS cables (cables come with it)
|
