Netstor NA-380A 4U Rackmount - Black

NA380A is themost high desityof PCI-e(Host) to SAS/SATA 3/6 Gbps(Disk) 4U-24 bay storage product line from Netstor. It's not only an external storage capacity expansion for up to 48TB(installed 2TB HDD)but alsofeatures up to PCI-Express slots expanderto solve the PCI-e slot shortage problem inserveror workstation while you want to expand the big sotrage capacityas well as thePCI-e slots.

The chassis pacakgeis including a PCI-Express host adaptor and an external PCI-e 8x cable for you to convert and connect the host system internal PCI-E slot becoming external portinto NA380A and it's designed to provide up to Seven(7) PCI-eslots for plugging any standard SAS/SATA PCI-e Raid card to configue the NA380A to be Raid Subsystem and any PCI-e add-on card while PCI-e slot is shortage in the existing server or workstation. It means NA380A only requests a PCI-e slot from host server but provides a mass stoage capacity and7 more PCI-e slots to customer.

• Rugged 4U 24-Bay Rackmount Chassis
• Host interface up to 20Gbps bandwidth
• Supports Twenty(24) SAS/SATA(3Gbps/6Gbps) drives
• Expandsup to7* PCI-Express slots for Raid Card and any standard add-on cards
• Individual Key lock of each HDD tray for physical security
• Environmental monitoring for FAN failure and over temperature
• Server-grade redundant power supply for zero-down-time

HostInterface	External PCI-Express x8
HDDInterface	SAS/SATA 3.0/6.0 Gpbs
No. of Disk(s)	up to 24
Data Transfer Rate	Up to 20Gbps
PCI-e Slot Expansion	3*PCI-e 8x(8 Lane)slotsand 4*PCI-e 4x(4 Lane)slots
Storage Expansion	NA380A can be daisy chain together as many as the Raid Control Card can be recognised by Host PC or Server. ( Click Here for daisy chain diagramexplanation)
LED Display(Tray)	White- Power on indicator Blue - Busy (HDD Accessing) indicator
LED Display for Environmental Monitoring	FAN normal Green; fail Red (too slow rpm or stop) TEMP normal Green; over 50C Red
Dimension	55.9(D) x 48.2(W) x 17.6(H)cm
Material	Heavy-duty cold-rolled steel
Power Supply	650W (2+1) Redundant PSU Input: 90 230 VAC 50- 60 Hz Output: +5V and +12V DC
Cooling	Three90x90x25mmandtwo 60x60x25 mm cooling fans
O.S. support	OS Independent(OS will be provided from the PCI-e Raid Control card manufacturer)



Package Content

Enclosure x 1
HDD Tray x 24
PCI-e 8xHost Adaptorwith standard and low profile host bracket x1
PCI-e 8x cable (1.5 meter)x 1
Internal miniSAS(SFF8087) to miniSAS(SFF8087), 30cmx6
Power Cord x3
Hard Disk Drive mounting screwx 96
Key for HDD trayx 2

Host Requirement and Cable length available

• Apple Mac Pro or PC workstation with one available PCI-e x8 slot
• External PCI-e cable available length - up to7 Meter

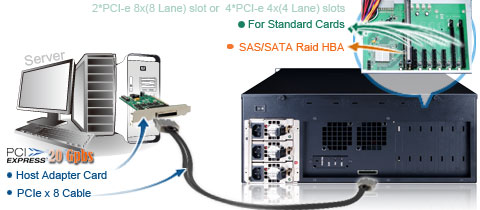

Application Diagram
