Main Chipset
Memory
Main: 256MB DDR SDRAM / Flash: 128MB
Maximum Resolution
Video Format (Containers)
MKV, AVI, VOB
ASF, WMV
MPEG1/2/4 Elementary
MPEG1/2 PS: M2P, MPG
MPEG2 Transport Stream: TS, TP, TRP, M2TS, MTS, MOD, TOD
ISO, IFO
MOV (H.264), MP4
.MKV, .mpg, .avi, .wmv, .divx, .vob, .tp, .ts, .trp, .dat, .iso, .ifo, .m2ts, .mov, .flv, .rm, .rmvb, .asf, .mts, .mpeg
Video Codec
XVID SD/HD
MPEG 1
MPEG-2 (MP@HL)
MPEG-4.2 (ASP@L5, 720p, 1-point GMC)
WMV9 (MP@HL),
H.264 (BP@L3, [email protected])
VC-1 (MP@HL, AP@L3)
RealVideo 8/9/10
FLV(H.263)
Audio Format (Container)
AAC, M4A
MPEG audio (MP1, MP2, MP3, MPA),
APE, PCM, AC3, FLAC (Audio track in MKV)
WAV(DTS), WAVPACK, WMA (Lossless not supported)
Ogg
Audio Codec
Dolby Digital
DTS Down Maxing
WMA, WMA Pro
APE, FLAC, WAV, MP1, MP2, MP3, M4A, LPCM, Ogg Vorbis, aif, aiff
Audio Pass-thru
DTS, Dolby Digital, Dolby True HD, Dolby Digital Plus
Photo Image
JPG, JPEG, BMP, PNG, GIF, TIF
Languages
English, Traditional Chinese, Japanese, Spanish, French, Germany, Italian, Korean, Nederlands, Russian, Rumanian, Czech, Arabic, Vietnamese, Bulgarian, Hebrew, Swedish, Greek, Turkish, Polish, Portuguese, Croatian, Thai

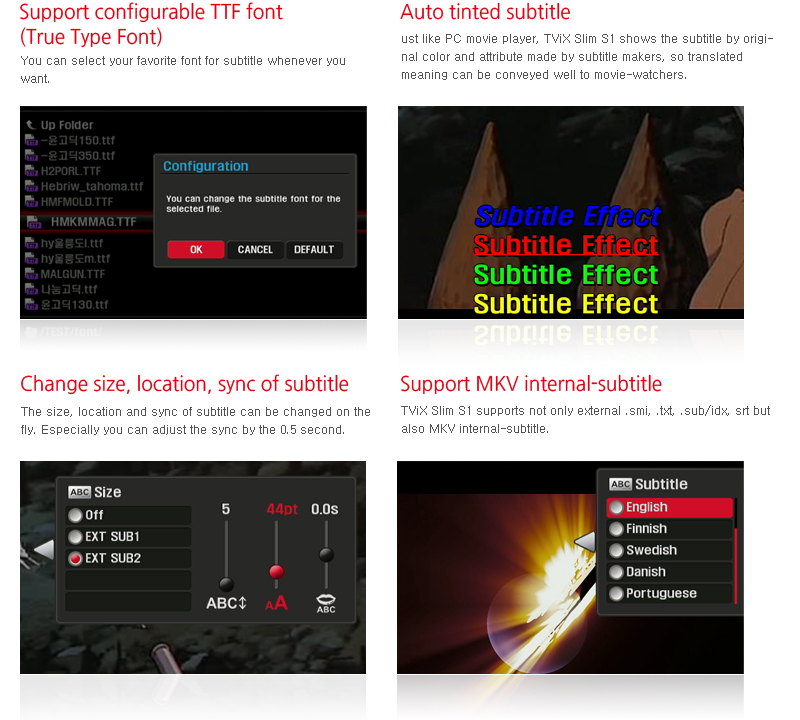

Subtitles
smi, smil, sub, sub/idx, srt, .ssa, .ass, MKV embedded subtitle

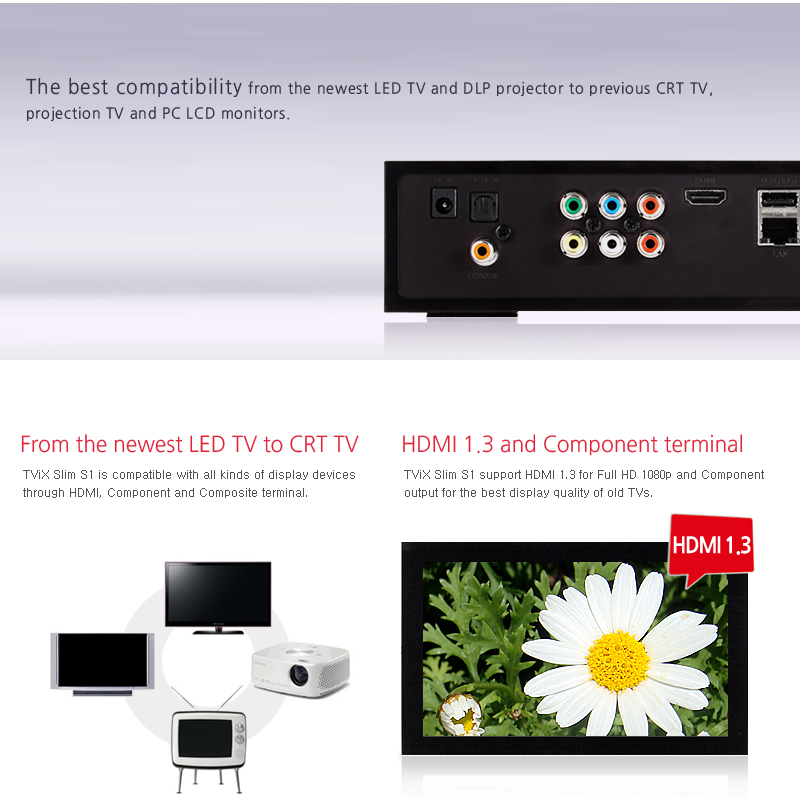

Video / Audio Output
HDMI 1.3a (Video 24 bit), Component, Composite
Digital: Coaxial, Optical
Analog: Stereo

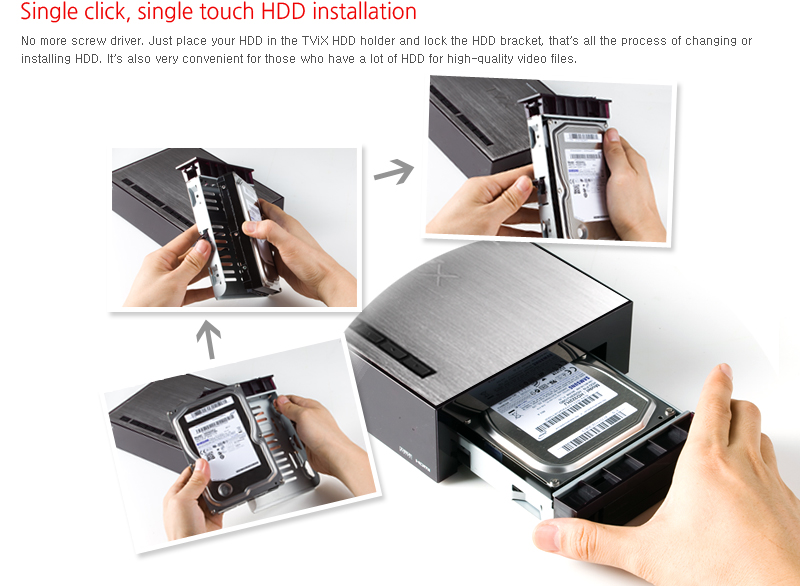

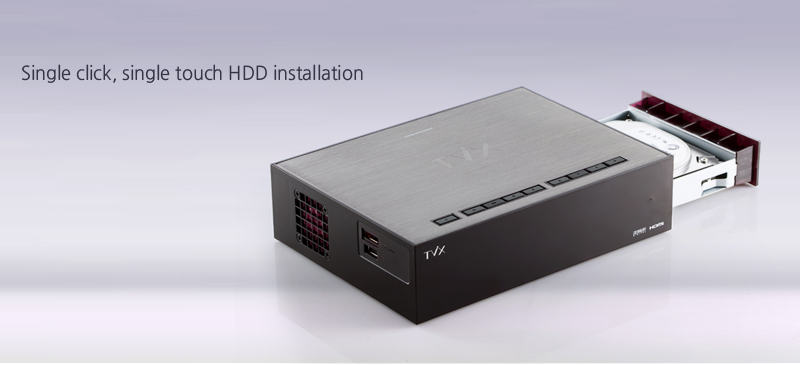

HDD Supported
NTFS, FAT32 (3.5 SATA , HDD)
Interface

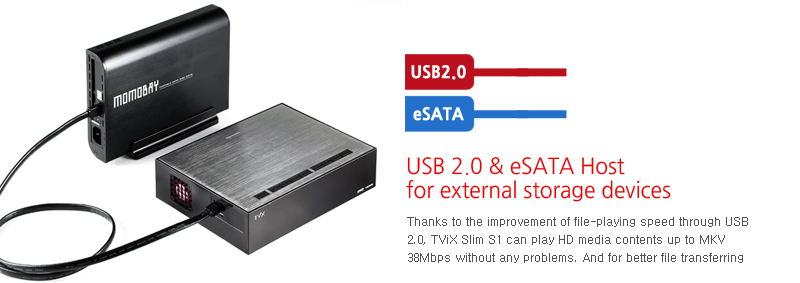

USB 2.0 Host 2 Ports ( USB1/USB2 : 5V , 500 mA max), USB 2.0 Target 1 Port
1 port e-SATA HOST
Network
10/100 Ethernet

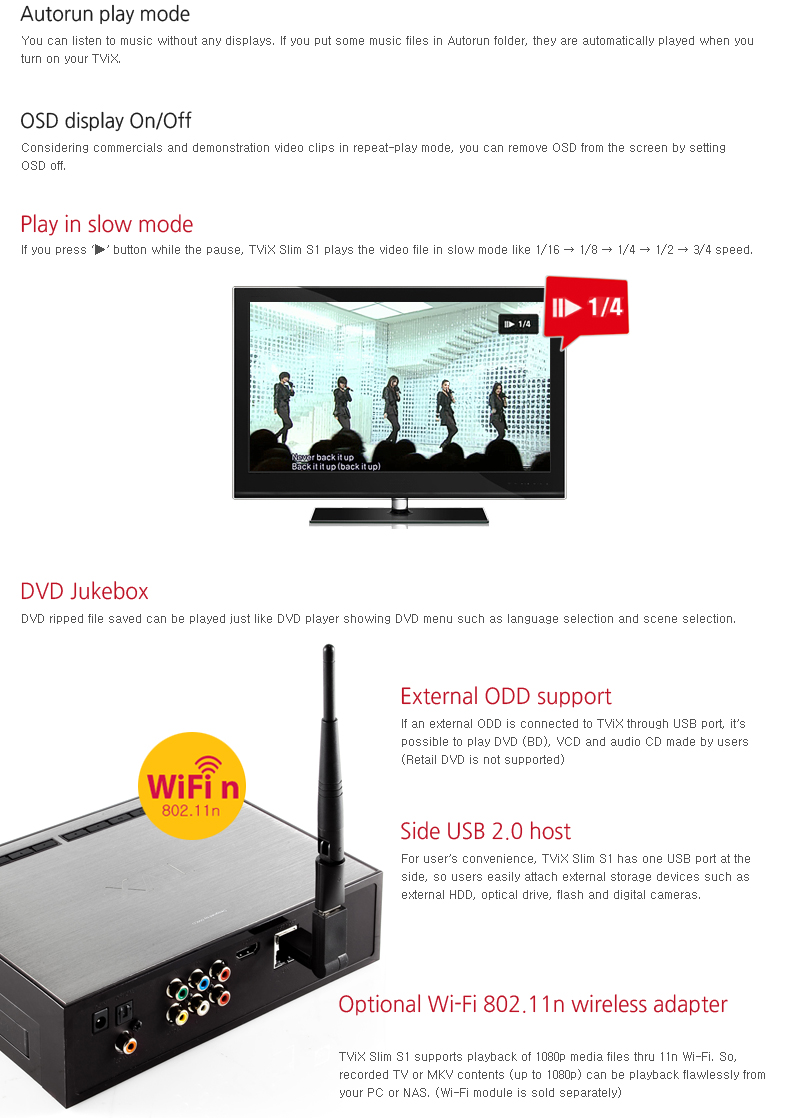

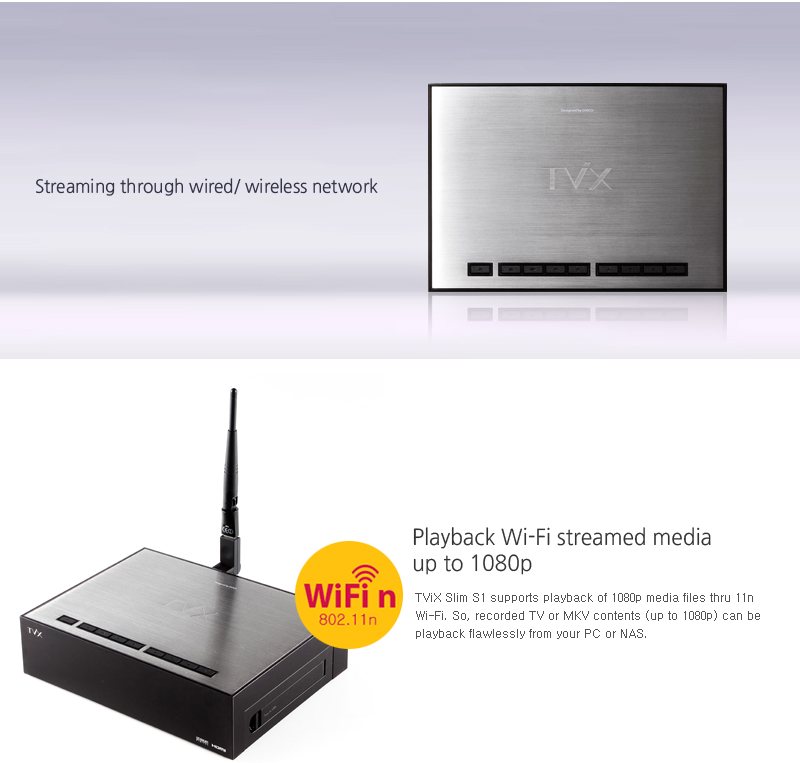

Wi-Fi 802.11n(optional)

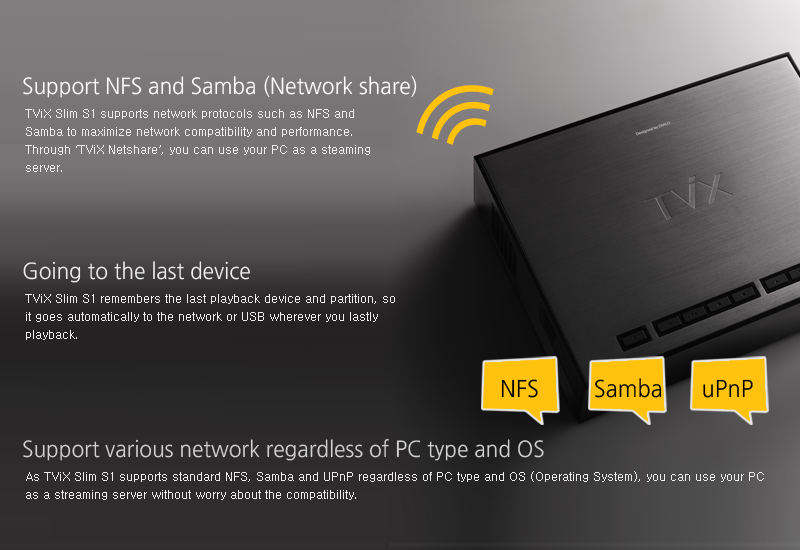

Network Protocol
UPnP, SAMBA Client, NFS (with Net-Share)
SAMBA server , FTP

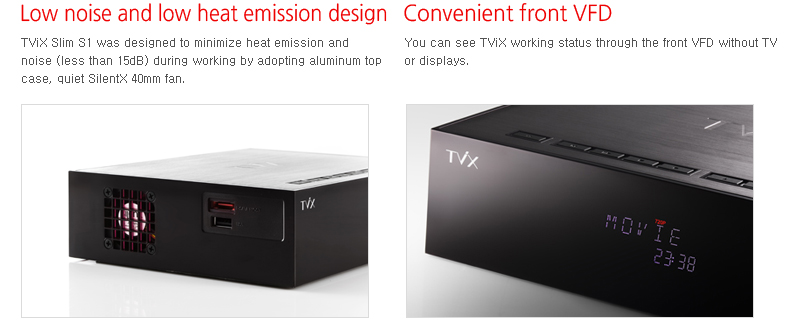

Cooling Fan
Internal temperature sensing mechanism, 40mm low noise
VFD Display
Playback mode, Elapsed time, Resolution (Dot Matrix 7 English characters and numbers)
POWER CONSUMPTION
Dimension
Weight
Caution
- HDD is not included.
- Some streaming couldnt play according to wireless setup environment.
- ASF, WMV (WMV9 only but Advance Profile is not supported), WMV7, WMV8 are not supported.
- MPEG4, XVID-GMC are not supported.
- 2 Channel Down Mix without external decoder amplifier.
- Some files might not be played even if the file format is correct and the codec are supported.
- For more detailed information, please visit the supported codec section in FAQ before you purchase the product
