All stock codes associated to this product
, NAS8000TG, NAS8000-TG
Ultra Share High Performance 10GbE Expandable NAS
Product Code: NAS8000-TG
Model: UltraShareNAS 8000-TG
Form Factor: 2U 8 disks low profile 19" rackmount
System Components:
- Intel IOP348 I/O processor with SAS controller
- Xeon CPU LGA1366 2.0GHz Nehalem
- DDR3 3GB memory
- Redundant 380W 80+ power supply
- Four (4) high-speed internal cooling fans
- Eight (8) SATA-II HDDs (2TB/1.5TB)
RAID Supported
- Hardware RAID 5 parity computation
- RAID Level 0, 1, 0+1, 3, 5, 50, 5S, 6, 60, 6S
- Multiple RAID array and volumes
- Global hot spare (s)
Interface:
- Host Interface: 2x 5GbE (or 1x 10GbE)
- Expansion Port: SAS SFF8088 expansion port
- Dual fail over Ethernet ports
- iSCSI Target Capable
Drive Interface:
- 3.5" SATA II 7200 RPM HDDs
- 3.5" SAS 15K RPM HDDs
Storage Capacity:
- Scalable up to 16TB raw (8 x 2TB) per system
- Max. Capacity after Expansion: Up to 176TB raw storage capacity
(*require using RS16 SS with (4) RS16 JS)
Management:
- Cross-platform user-friendly web GUI access via an RJ45 Ethernet port
Operating System:
- Enterprise-Class Linux-based NAS
- 1 x SATA Disc-On-Module (DOM)
Physical & Environment:
- Operating Temperature 10C ~ 35C
- Non-Operating Temperature -10C ~ 50C
- Relative Humidity 5% to 95% non-condensing
Power Supply:
- Dual redundant hot-swappable power
- AC input: 90 ~ 264 VAC, 47Hz ~ 63Hz
- Output: 380W
Cooling:
- Four (4) high-speed internal cooling fans
- Dimension (H x W x D): 3.5 " x 19" x 21.5"
- Weight: (w/ disks): 70 Lbs
- Safety Regulations: CE, FCC, UL, RoHS
- Warranty : 2 years limited warranty
The UltraShare/NAS sets a new benchmark for high-performance network-attached shared storage. The UltraShare/NAS system combines high data throughput, expandability, resiliency and versatility. It offers an intuitive, easy to use graphical interface all at a price point that is unmatched in the industry. In any type of environment, the UltraShare/NAS can deliver the performance to suit your needs at a price that will fit your budget. UltraShare/NAS is available single (or 2x 5GbE) 10GbE data portals.It can be combined to provide high-speed, load balancing or fault tolerance. The UltraShare/NAS provides the highest data I/O performance of any NAS system in its class.

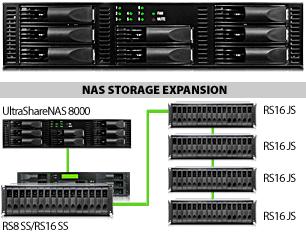

NAS8000TG-F16T can be expandable in volume up to 176TB by daisy chainning numbers (MAX. 5) of RS16JS expansion box (each support 16x 2TB HDD)

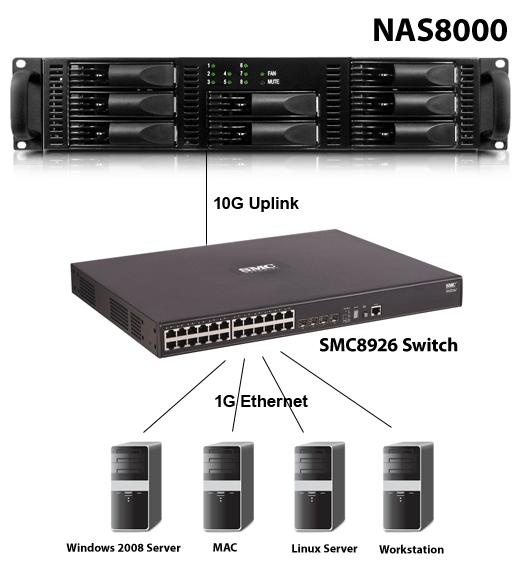

Diagram for asetting for4 x computer serverswith GbE switch + single 10GbEup link toNAS8000TG
