The VANDAL DOME SERIES is a full-featured, 3-axis, fixed-dome, network camera. With a megapixel progressive sensor and built-in IRcut filter/ IR illuminator LEDs/ Auto Light sensor, it can provide 24-hour, indoor surveillance. The VANDAL DOME SERIES features a wideangle and vari-focal lens, which offers wide view coverage of all angles.
The VANDAL DOME SERIES is designed to provide end users with high quality video feed for an easily accessible security system. The embedded high performance image sensor and CPU allow for each camera to stream real time, high resolution video at 30 fps. It can transmit video using many codec compression options, including MPEG- 4/MJPEG/H.264, which reduce bandwidth and storage requirements without compromising image quality. For easy viewing of the video feed, users can view the live feed from anywhere through internet browsers or 3G portable devices.
Installation is simplified by the added support for Power over Ethernet which enables each camera to receive power through the same cable as for data transmission. The DI/DO function allows users to connect the VANDAL DOME SERIES to external alarm and sensor devices for added security protection.
Users do not have to worry about their camera as its vandal proof enclosure protects it from damage caused by vandalism or harsh environments. With an IP66 certified enclosure, the VANDAL DOME SERIES is not only weather proof, but also dust and rust resistant. By utilizing a built-in industrial fan and heater, it can perform well in extreme temperatures.
With the included EasyConfig installation software, this series offers end-users easy installation without the need for a strong technical background. The 3-axis mechanical design makes the VANDAL DOME SERIES the perfect security camera for any school, bank, or corporate office surveillance system.

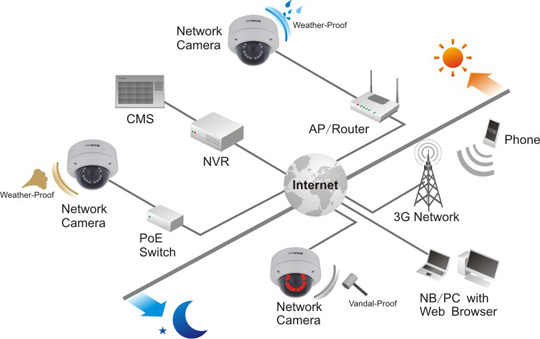

Application Scenario
.
Specifications
Product Name |
Megapixel Day & Night Vandal Dome Network Camera |
Model Name |
VD-100A - Outdoor / MEGAPIXEL / IR LED / 2 way Audio / SDHC / Ethernet / POE / DIDO / Vandal-Proof / Weather-Proof
|
Hardware System |
CPU : 500 MHz Flash : 16M RAM : 128M DDR |
Image Sensor |
Sensor Type : 1/4" Mega-Pixel CMOS Sensor Sensor Resolution : 1280 x 800 pixel |
Minimum Illumination |
1 Lux (without IR LEDs) 0 Lux (IR LEDs ON) |
Removable IR Cut Filter |
Triggered by Auto Light Sensor |
LENs |
Lens Type : Board Mount Lens Focal Length : f= 3.3mm~12mm View Angle : H: 63.6 ~ 17.9 V: 46.5 ~ 13.5 |
Video |
Auto Exposure Control / Auto White Balance / Auto Gain Control Image Compression : H.264 / MPEG4 / MJPEG / 3GPP(optional) |
Max Image Resolution |
- 1280 x 800 : 26fps - 640 x 400 : 30fps |
Audio |
External MIC / Line input External Audio output |
Network |
Ethernet : one 10/100Mbps RJ-45 Supported Protocols : TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, RTP, RTSP, RTCP |
Pan/Tilt |
Manual 3-axis |
Interface & Buttons |
DC 48V Power Connector Ethernet Cable Connector General I/O Terminal block External Line input External Audio output Embedded SD/SDHC memory card slot |
LEDs |
Status / Ethernet (Power/Link) |
Power Input |
DC 48V / 0.8A (Power Supply) High Power POE |
Max Power consumption |
Max Power Consumption : 25 watts |
Environment |
Operating Temperature : -40C ~ 60C (-40F ~140F) Operating Humidity : 10% ~ 80% |
Dimension |
F 155.1(D) X 117.4 (H) mm |
Certification |
FCC,CE |
Warranty |
Limited 2-year warranty |
