All stock codes associated to this product
GPSU2101, GPSU21-01
USB 2.0 Print Server, 1-Port
GPSU21
Description
IOGEAR's palm sized 1-port USB 2.0 Print Server allows any networked computer to share a USB printer. It complies with USB 2.0 specifications (backward compatible with USB 1.1 spec.), and provides users with an auto-sensingEthernet port thatworks with either 10Base-T or 100Base-T networks. This unit also supports multiple protocols and multiple operating systems, and it integrates Internet Printing Protocol (IPP) in this print server to allow users to print from any computer over a LAN/WAN or the Internet by specifying the device's URL.
The built-in web management feature provides more convenience by allowing the user to configure, monitor and even reset the print server via a web browser. This eliminates the need to place the printer right next to the computer. Print jobs can be sent to a printer in another country just as easily as to a printer in the same office. Why bother sending a degraded fax image while you can print an original at the destination?
Device is not compatible with Multi-Functional Printers.
GPSU21 - Printer Compatibility list
Features
- Easily connect your USB printer to a network
- Allows multiple computers to share one USB printer on the network
- Print from any computer on your network or from across the Internet
- Supports DHCP Client and multiple network protocols
- 10Base-T / 100Base-T auto-sensing
- Supports Telnet and Web Management software
Warranty: 3-YEAR

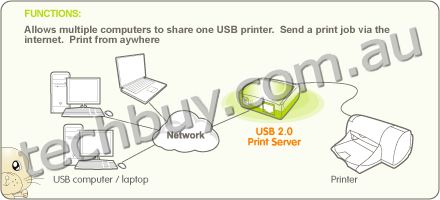

Function Diagram
Requirements
- Windows 98SE/ME/2000/XP/Vista/7 (32 & 64-bit)
- Mac OS9.22 or later
- Unix/Linux
- Printer with USB connection
Package Content
- 1 x 1-Port USB 2.0 Print Server
- 1 x CAT5 Patch Cable
- 1 x Power Adapter
- 1 x Installation CD
- 1 x User Manual
- 1 x Warranty / Registration Card
Specifications
| Function |
GPSU21 |
| Cable Length |
6 Feet |
| Network Protocol |
IPX, TCP/IP, NETBUEI, APPLETALK, lpr, smb (Over IP) |
| Cable Type |
CAT5 |
| Network Interface |
10/100Mbps RJ45 |
| Printer Connection |
USB 2.0, USB 1.1 |
| Standards |
IEEE 802.3 10Base-T; IEEE 802.3u 100Base-T; USB 2.0 |
| Management |
Web, Telnet, PSAdmin, SNMP |
| Dimensions |
GPSU21 |
| Unit Dimensions |
| Width |
2.4 in. (6.096 cm) |
| Height |
1 in. (2.54 cm) |
| Length |
2.5 in. (5.72 cm) |
| Unit Package Dimensions |
| Width |
8 in. (20.32cm) |
| Height |
5.5 in. (14cm) |
| Depth |
2.625 in. (6.6cm) |
| Master Carton |
| Width |
8.875 in. (22.52cm) |
| Height |
12.375 in. (31.41cm) |
| Depth |
17.5 in. (44.45cm) |
| Master Carton Qty. |
12 |
| Weight |
| Master Carton Wt. |
14.05 lb. (6.37 Kg) |
| Unit Pack Wt. |
1.05 lb. 0.47 Kg) |
| Unit Wt. |
0.12 lbs (0.05 Kg) |
