All stock codes associated to this product
GUB43101, GUB431-01
4-Port USB 2.0 Automatic Printer Switch
GUB431
Description
IOGEAR's USB 2.0 Automatic Printer Switch allows four PCs and / or Macs to share one printer or multi-function printer. Simply submit a print job and the printer automatically* switches to the preferred computer. The switch also enablesfour computers to easily share one external hard drive, scanner, or any USB device. No more plugging and unplugging between computers.
Automatic switch function is software based and only available with USB printer or the printer function of a multi-function printer. For connecting and using other types of USB devices, you can switch by using the push-button on the USB switch or with the included software.
Features
- Automatically* switch from one computer to another when connecting to a USB printer or multi-function printer
- Simply press a button to switch a USB device between computers - No software installation required
- Active-port LED lights indicate which computer has access to the USB device
- Switch-lock function prevents other users from switching the USB device and ensures data access consistency
- USB 2.0 support with data transfer rate up to 480Mbps and USB 1.1 backward compatible
- No external power supply needed
Warranty: 3-YEAR

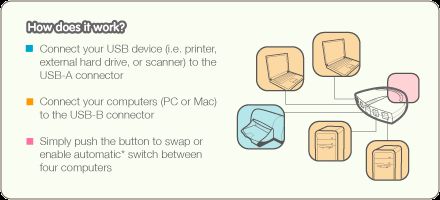

Function Diagram
Requirements
- Windows XP, Windows Vista 32-/64-bit, Windows 7 32-/64-bit
- Mac OS X v10.3.5 or later
- Available USB port (USB 2.0 port for High-Speed mode)
Package Content
- 1 x USB 2.0 Auto Switch
- 1 x 6 ft. USB A-B Cable
- 1 x User Manual
- 1 x Application CD
- 1 x Registration / Warranty Card
Specifications
| Function |
GUB431 |
| Computer Connections |
| Direct |
USB Type-A |
| Connectors |
| Console |
1 |
| Device Side |
4 |
| Environment |
| Humidity |
0-80% RH |
| Operation Temperature |
41 to 104 degree Fahrenheit |
| Storage Temperature |
-4 to 140 degree Fahrenheit |
| LEDs |
| Port Status |
Green - Online / Orange - Locked |
| Host Status |
Orange - Online |
| Operating System Support |
Windows ZP and above; Mac: 10.4.5, 10.5 and above |
| Power Consumption |
DC 5V, 2.5W |
| Power Supply |
USB Bus powered |
| Dimensions |
GUB431 |
| POP Information |
| 10'' Peg Hook |
4 |
| 6'' Peg Hook |
3 |
| Unit Dimensions |
| Width |
4 |
| Height |
3 |
| Depth |
1 |
| Unit Package Dimensions |
| Width |
6 |
| Height |
7.25 |
| Depth |
2.25 |
| Master Carton |
| Width |
8 |
| Height |
7 |
| Depth |
15 |
| Master Carton Qty. |
6 |
| Weight |
| Master Carton Wt. |
5 lb. |
| Unit Pack Wt. |
0.7 lb. |
| Unit Wt. |
0.2 lb. |
