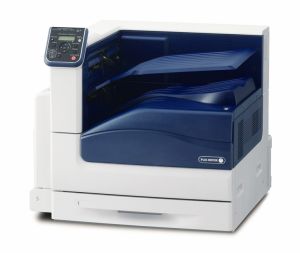

DocuPrint C5005 d A3 Colour S-LED Printer
Power. Speed. Productivity.
The Formula for Success.
Introducing the DocuPrint C5005 d, an advanced S-LED (Self-Scanning Light Emitting Diode) printer that delivers outstanding print quality with unmatched reliability – precisely what your business needs to maintain a competitive edge in today’s fast-paced
market environment. With a wide range of input and output options, the DocuPrint C5005 d can be easily customised to meet your specific business requirements. Best of all, the DocuPrint C5005 d is competitively priced. Combined with a low total cost of
ownership, the DocuPrint C5005 d allows you to create documents without impacting that all-important bottom line.
Powerful features for any print job
- High resolution of up to 1,200 x 2,400 dpi
- Up to 55 / 50 ppm for mono / colour output
- First printout time is as fast as 3.5 seconds
- Versatile media type range of 55 to 280gsm
- Large paper input capacity of up to 5,105 sheets
State-of-the-art security standards
- Network-transmitted data is guarded by both Ipsec and SSL, which encrypt document content. SNMPv3 securely transfers
information to users and IEEE 8.02.1x authenticates network devices before allowing document access.
- Secure Print* helps prevent unauthorised viewers from gaining access to documents by holding jobs at the printer until the
user enters a PIN, eliminating paper wastage and securing
- Automatic emails notify administrators in real-time when toner levels are low and on matters requiring action.
- Receives and prints attachments sent via email from any connected device.
- 1GB on-board memory makes printing complex jobs easier and more efficient.
- Available options allow for additional functionalities like stapling, storing, hole-punching and booklet-making.
- IPv6 provides enhanced security and ease of management over traditional IPv4.
- Run Black function enables the DocuPrint C5005 d to continue printing your documents in black when colour toners run out
Fuji Xerox Self-Scanning LED printing
Fuji Xerox’s award-winning S-LED (Self-Scanning Light Emitting Diode) utilises a print head that creates an image on the print drum using LEDs as the light source. The light from the LEDs are directed through a lens array which forms the image document on the drum.
(i) 1,200 dpi Self-Scanning LED chips with ASIC Driver
High quality printing with 14,592 LEDs while the ASIC Driver allows precise control of these LED chips.
(ii) Newly designed lens
The optically precise lenses produce highly accurate images on the drum.
(iii) Image Registration Control Technology (IRecT)
IRecT is a digital Image Registration Control Technology that makes it possible to correct images in ultra high-precision of up to 2,400 dpi. IRecT corrects image misalignment digitally, not mechanically, enabling ultra high-precision print images without any colour or image mis-registration.
(iv) Image enhancement processing
Images are scanned in two directions (rather than one) on a finer matrix than with conventional technology. This produces smoother lines, especially those at slight angles, for razor-sharp text and graphics.
(v) MACS (Micro Accurate Control Screen) digital screening
MACS uses Fuji Xerox HQ digital screen technology which controls pixel production based on image density. This results in smooth gradation and excellent highlight reproduction.
Technology for economy and ecology
With Fuji Xerox technologies, brilliant prints do not come at the expense of your budget or the planet. Cost- and energy-saving features ensure you get maximum results with minimal monetary outlay and environmental impact.
S-LED and DELCIS
Fuji Xerox’s S-LED and ‘DELCIS’ (Digitally Enhanced Light Control Imaging System) technology not only provide an outstanding output of 1,200 x 2,400 dpi, they also make it
possible to build devices that are more reliable, compact and consume less power.
The newly developed Induction Heating Fuser incorporates a thin, non-magnetic metal which serves as a heating layer inside the fuser belt, enabling greater energy efficiency. With this new
technology, the fusing unit does not require pre-heating and doesn’t consume power when the machine is in standby mode.
Fuji Xerox’s EA Eco-toner contains sharp-melting polyester which achieves photo-quality gloss output on a wide variety of paper types. Fusing temperature is more than 20°C lower than that of conventional toners, contributing to reduced power consumption.
The printer that grows with you
To meet the growing needs of your business, the DocuPrint C5005 d is specifically designed for scalability. As your business expands and printing requirements become more sophisticated, you can easily add functionality- and productivity-enhancing options.
||Up to 50 ppm colour; 55 ppm monochrome
|First Page Out
||As fast as 3.5 seconds
||1GB Std / 2GB Max
|Print Language or PDL (Page Description Language)
||PCL, Adobe Postscript 3, XPS, PDF
|Print Resolution (dpi)
||Up to 1200 x 2400 dpi
||New ASIC 933MHz CPU
|Auto 2-sided Printing (Duplex)
||Automatic 2-sided printing
||Input Paper Size (IOT 1 Tray): Min: A5 or 139.7 x 182 mm; Max: A3S or 297 x 431.8 mm Input Paper Size (Bypass Tray): Min: PostCard size or 88.9 x 98.4 mm; Max: SRA3S, 12 x 19S or 320 x 1219 mm Input Paper Weight: 60 x 220gsm
|Paper Input Capability
||Standard: 590 sheets: 500 sheets (1 Tray) + Bypass (90 sheets) Optional: (1) 5,105 sheets: Standard (590 sheets) + Tandem Tray (500 + 860 + 1,125sheets) + HCF B1 (2,030 sheets) (2) 4,120 sheets: Standard (590 sheets) + 3 Tray Module (1,500 sheets) + HCF B1 (2,030 sheets) (3) 2,090 sheets: Standard (590 sheets) + 3 Tray Module (1,500 sheets)
|Paper Output Capability
||Standard: 500 sheets (Exit 2 Tray 250 sheets + Lower Centre Tray 250 sheets)
||10Base-T/100Base-TX, USB2.0 - (Std) Gigabit Ethernet, Parallel Port (IEEE 1284-B) - (Opt)
||Finishing Options: Sort, stack and collate Multi-postition stapling Hole punching Fold and saddle-stitch booklets
||MACS (Micro Accurate Control Screen) DIGITAL SCREENING MACS uses Fuji Xerox HQ digital screen technology which controls pixel production based on image density. This results in smooth gradation and excellent highlight reproduction. IMAGE REGISTRATION CONTROL TECHNOLOGY (IRecT) IRecT is a digital Image Registration Control Technology that makes it possible to correct images in ultra high-precision of up to 2,400 dpi. IRecT corrects image misalignment digitally, not mechanically, enabling ultra high-precision print images without any colour or image mis-registration.
||Microsoft Windows 2000, Microsoft Windows XP, Microsoft Windows Vista, Microsoft Windows 7, Microsoft Windows Vista x 64, Microsoft Windows 7 x 64, Microsoft Windows Server 2003, Microsoft Windows Server 2003 x 64, Microsoft Windows Server 2008, Microsoft Windows Server 2008 x 64, Mac 9.2.2, Mac OSX 10.3.9 10.4.11 (excluding 10.4.7), 10.5/10.6
||One Year On-site Warranty
