NR710C
Desktop 5 Bay USB3.0/FWB/eSATA RAID Subsystem
The external desktop 5-drive multi-interface NR710C subsystem features high efficiency built-in hardware RAID processor, providing 0, 1, 3, 5 and 10 RAID levels. Among the highest-speed combo interfaces of USB 3.0, eSATA, and FireWire B, the SuperSpeed USB 3.0 connectivity delivers high-speed data transfer rate 5 Gbps, ten times the USB 2.0; moreover, RAID management can be configured completely by users in minutes using the comprehensive LCD control panel in front or through the user-friendly GUI on screen.
Quiet Fan and Automatic Detection
Netstor NR710C integrates a quiet, swappable fan module, featuring thermister controlled fan speeds and making it completely suited for use in noise-sensitive environments. The backplane on NR710C features thermal sensor and fan detection. When fan fails or temperature above fifty degrees Celsius, users can be notified remotely by e-mail notification, and as users get closer to NR710C, they can know the error from LCD or beeping from the buzzer. The alarm can be muted from a remote GUI or by mute button on enclosure; furthermore, users can always trace the history events from GUI’s event log.
Tight Security and Robust Structure
Each hard disk drive tray on NR710C has an individual security key lock that prevents hard disk drive from accidental pull out leading to the loss of data. Each drive tray is provided with two LEDs that indicate hard disk drive power, standby, access, and rebuilding condition. In addition, firm and solid metal structure with aluminum housing is applied with NR710C to ensure that hard disk drives are well-protected by this dedicated design, giving data complete protection from any environment.
| Features |
 |
|
- Provides most high-speed combo interfaces of USB3.0, FireWire 800 and eSATA
- Supports up to 5* SATA (3/6 Gbps)HDDs
- Built-in Hardware Raid processor providing Raid levels 0, 1, 3, 5& 10
- Aluminum housing, anodized surface, benefits for cooling and durability
- Backplane design for five removableSATA drive trays
- Built-inthermal sensorforautomatic fan speed controlled
- Individual key lock of each HDD tray for physical security
- User friendly GUI and front LCD control panel for setup, alarm mute and configuration
- Environmental Monitoring with Power/FAN/TEMP LEDs andmutable buzzer alarm.
|
Specifications
| HostInterface |
Combo USB3.0/ FireWire 800/ eSATA |
| HDDInterface |
SATA (3.0Gb/s or 6.0Gb/s) |
|
No. of Disk(s)
|
Up to 5 |
|
RAID Levels
|
RAID 0, 1, 3, 5 & 10, Large, Clone |
| LED Display for Tray |
White- Power on indicator
Blue - Busy (HDD Accessing) indicator
|
| LED Display for Environmental Monitoring |
Power on LED - white
FAN normal green; fail red (too slow rpm or stop)
TEMP normal green; over 50C red
|
| Dimension |
(D):23cm (W):15.7cm (H):22.9cm
|
| Material |
Anodized Aluminum with Mirror Acrylic plastic front panel & Plastic tray face |
| Power Supply |
220W (High reliability of IPC form-factor)
Input: 90 230 VAC 50- 60 Hz
Output: +5V and +12V DC |
| Cooling |
One90 x 90 x 25 mm Cooling Fan
|
| O.S. support |
OS Independent |
| GUIsupport |
Windows, Mac OS, Linux |

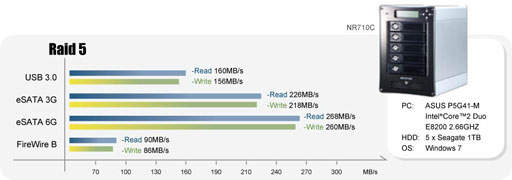

Performance Benchmark
| System Note |
|
1. Operating systems that allow disk volume larger than 2 Terabytes
(2048 Gigabytes) include:
a.Windows Vista, Windows 7, and Windows Server 2008
b. Mac OS 10.4/10.5 or higher
c. Linux 2.6.23 or higher |
2. If you want to use multiple RAID volumes on eSATA interface, your
systemshould meeteither of the following requirements (Both USB3.0
& FW800 interfaces no limitation here).
a. The motherboard's eSATA port should support Port Multiplier
function.
b.The systemshould have an internal eSATA card with Port
Multiplier function. |
|
Package Content
|
|
Enclosure x 1
HDD Tray x 5
USB 3.0Cable x 1
FireWireB to FireWireB cable x1
eSATA cable x1
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screw x 20
Key for HDD tray x 2
