Intel DH67CFB3 Motherboard - Retail
LGA1155, H67 (B3 Stepping), 2xDDR3-1333, 1xPCI-Ex16 v2.0, 2xSATA-III, 2xSATA-II, 1xeSATA-II, RAID, 1xGigLAN, 8Chl-HD, USB3.0, Mini-ITX

No Longer Available

Part Number:

165972

(?) Brand:

Intel Web Site

Manuf No:

BOXDH67CFB3

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

BOXDH67CFB3, 1518497, 735858221115

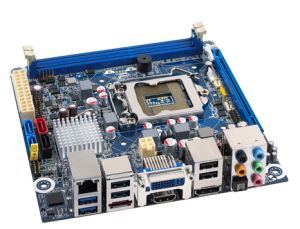

The Intel Desktop Board DH67CF is an Intel H67 Express chipset-based desktop board in Mini-ITX form factor. It supports the 2nd generation Intel Core i5 processor and other Intel processors in the LGA1155 package. This board is featured with DVI-I, HDMI*, and DisplayPort* connectors, and supports dual independent display. Powered by the 2nd generation Intel Core processors, DH67CF delivers a superb visual performance for sharper images, richer color, and life-like audio and video. Intel Desktop Board DH67CF also offers premium features such as two SATA 6 Gb/s ports and two USB 3.0 ports with 5Gb/s link speed. The Mini-ITX form factor provides maximum design flexibility for system designs ranging from all-in-one to portable systems.

Features and configurations

Form factor	Mini-ITX
AA# ( Altered Assembly)	G10215-xxx
Processor	At product launch, this desktop board supports: Intel Core i52000 processor series (65W TDP) in an LGA1155 socket Intel Core i32000 processor series (65W TDP) in an LGA1155 socket View all compatible Intel processor numbers
Memory	Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets Support for DDR3 1333/1066 MHz DIMMs Support for up to 16 GB of system memory
Chipset	Intel H67 Express Chipset (B3 Stepping) Intel Rapid Storage Technology for RAID 0, 1, 5 and 10
Graphics	Integrated graphics support for processors with Intel Graphics Technology: High Definition Multimedia Interface* (HDMI) DVI-I DisplayPort Discrete graphics support for PCI Express* 2.0 x16 add-in graphics card
Audio	Intel High Definition Audio subsystem in the following configuration: 10-channel (7.1+ 2 independent multi-streaming) audio subsystem with six analog audio outputs w/optical S/PDIF out port Five analog audio ports and one optical S/PDIF out port Internal S/PDIF header and front panel audio header
LAN support	Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel 82579V Gigabit Ethernet Controller
Peripheral interfaces	Two Serial ATA 6.0 Gb/s ports Two Serial ATA 3.0 Gb/s ports, with one port compatible with eSATA* extension One eSATA* 3.0 Gb/s port Two SuperSpeed USB 3.0 ports Ten USB 2.0 ports, four back panel ports and six additional ports via four internal headers
Expansion capabilities	One PCI Express* 2.0 x 16 discrete graphics card connector

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Intel) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
