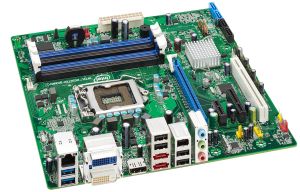

Based on the latest Intel Q67 Express Chipset with Intel vPro technology, Intel Desktop Board DQ67SW is designed to showcase the superior performance quality of the 2nd generation Intel Core vPro processor family, enhance office productivity, and lower the total cost of ownership for your business PCs with the newest Intel Active Management Technology (Intel AMT) 7.0.
Designed with exceptional stability and compatibility, Intel Desktop Board DQ67SW equipped with the latest SuperSpeed USB 3.0 and SATA 6 Gb/s ports with RAID support. Dual independent display capability with DisplayPort and dual DVI ports.
Features and configurations
| Form factor |
MicroATX |
| AA# ( Altered Assembly) |
G12527-xxx |
| BIOS ID string |
SWQ6710H.86A |
| Processor |
At product launch, this desktop board supports:
- Intel Core i7 processor series in an LGA1155 socket
- Intel Core i5 processor series in an LGA1155 socket
- View all compatible Intel processor numbers
|
| Memory |
- Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
- Support for DDR3 1333 /1066 MHz DIMMs
- Support for up to 32 GB1 of system memory
|
| Chipset |
- Intel Q67 Express Chipset
|
| Graphics |
DisplayPort*, DVI-D, DVI-I graphics connectors for processors with Intel HD Graphics |
| Audio |
Intel High Definition Audio (Intel HD Audio)2 subsystem in the following configuration:
- 8-channel (5.1+ 2 independent multi-streaming) audio subsystem with three analog audio outputs using the Realtek ALC888* audio codec
|
| LAN support |
Gigabit (10/100/1000 Mbs/s) LAN subsystem using the Intel 82579LM Gigabit Ethernet Controller |
| Peripheral interfaces |
- Two USB 3.0 ports
- Up to twelve USB 2.0 ports
- Two Serial ATA 6.0 Gb/s port
- Two Serial ATA 3.0 Gb/s ports
- Two eSATA 3.0 Gb/s rear ports
- Up to two IEEE 1394a ports
|
| Expansion capabilities |
- One PCI Express* 2.0 x 16 bus add-in card connector
- One PCI Express x 4 connector
- One PCI Express x 1 connector
- One PCI Conventional bus connector
|
Specifications
Intel® Desktop Board DQ67SW
| Essentials |
|
Status
|
Launched |
|
Launch Date
|
Q1'11 |
|
Board Form Factor
|
Micro ATX |
|
Socket
|
LGA1155 |
|
Extended Life Program (XLP)
|
Yes |
|
Embedded Options Available
|
No |
|
Supplemental SKU
|
No |
|
Max TDP
|
95 W |
|
12V DC Input Capable
|
No |
|
Back-to-BIOS Button
|
No |
| Memory Specifications |
|
Max Memory Size (dependent on memory type)
|
32 GB |
|
Memory Types
|
DDR3-1066/1333 |
|
# of Memory Channels
|
2 |
|
# of DIMMs
|
4 |
|
ECC Memory Supported
|
No |
| Graphics Specifications |
|
Integrated Graphics
|
Yes |
|
Graphics Output
|
DisplayPort, DVI-D, DVI-I |
|
Intel Clear Video Technology
|
Yes |
|
Dual Display Capable
|
Yes |
|
Discrete Graphics
|
PCIe 2.0 x16 |
|
Requires a Processor with Intel Graphics Technology
|
Yes |
| Expansion Options |
|
PCI Support
|
1 |
|
# of PCI Express Ports
|
3 |
|
PCIe x1 Gen 2.x
|
1 |
|
PCIe x4 Gen 2.x
|
1 |
|
PCIe x16 Gen 2.x
|
1 |
| I/O Specifications |
|
USB Revision
|
2.0 |
|
# of USB Ports
|
14 |
|
USB 2.0 Configuration (Back + Internal)
|
4+8 |
|
USB 3.0 Configuration (Back + Internal)
|
2+0 |
|
# of SATA Ports
|
2 |
|
# of SATA 6.0 Gb/s Ports
|
2 |
|
# of eSATA Ports
|
2 |
|
RAID Configuration
|
0,1,5,10 |
|
# of PATA Ports
|
0 |
|
# of Parallel Ports
|
0 |
|
# of Serial Ports
|
0 |
|
Audio (back channel + front channel)
|
6+2 |
|
Integrated LAN
|
Intel GigLAN 10/100/1000 |
|
Firewire
|
1 1 |
| Package Specifications |
|
Max CPU Configuration
|
1 |
|
Energy Star
|
Yes |
|
Low Halogen Options Available
|
See MDDS |
| Advanced Technologies |
|
Intel Virtualization Technology for Directed I/O (VT-d)
|
Yes |
|
Intel Trusted Execution Technology
|
Yes |
|
AES New Instructions
|
Yes |
|
Intel vPro Technology
|
Yes |
|
Intel Active Management Technology
|
Yes |
|
Intel AMT Version
|
7.0 |
|
Intel Anti-Theft Technology
|
No |
|
TPM
|
Yes |
|
Intel TPM Version
|
1.2 |
|
Intel Matrix Storage Technology
|
Yes |
|
Intel Fast Memory Access
|
Yes |
|
Intel Rapid Storage Technology
|
Yes |
