HighPoint RocketRAID 2760A RAID Controller - 24xSAS/SATA (via 6-Port Mini-SAS Internal SFF-8087) - PCI-Ex16, (No Cables Included)

Maintenance and Management Settings

RAID Monitoring Tools

RAID Array Roaming Unplug/Remove RAID array Hot key (ctrl-h) boot-up RAID manager via BIOS Firmware update while running the Operating System Verify RAID Array for Bad Sectors and Parity Check Task Scheduler Automatic RAID rebuild Automatic drive (insert / removal) detection Hot Spare Disk Staggered Drive Spinup Rebuild Priority (Low - Highest) Spin Down Idle Mode Hot Swap and Hot plug Bad sector repair and remapping to reduce dropped drives Multiple RAID array Multiple Logical Drive 64bit LBA support greater than 2TB per volume

SMTP for email notification Alarm / Buzzer alerts for drive failure SES-2 enclosure management (Failed, SMART (SHI)) Enclosure management support I2C Hard Drive LED indicators (Activity and Failed) SHI (Storage Health Inspector Drive analysis from S.M.A.R.T) Event Log RAID Management Suite Command Line Interface (CLI) Web browser-base RAID management software API Card Information Operating Temperature Work Temp: +5C ~+ 55C Storage Temp: -20C ~ +80C Relative Humidity: 5% ~ 60% non condensing Operating Voltage 3.3V (4W max) / 12V (1W max) Regulator Certification EMI: FCC Part 15 Class B and CE MTBF Mean Time Before Failure 920,585 Hours



Hardware Architecture

Model	RocketRAID 2760
PCI-Express Bus Lanes	2.0 x16
SAS/SATA 6Gb/s RAID Controller	Marvell 88SE9485
SAS/SATA Interface	SAS 6Gb/s
Port Count	Internal 24 SAS/SATA Devices
Connector Type	Internal Mini-SAS (SFF-8087)
RAID Level	0, 1, 5, 10, 50 and JBOD
Form Factor	Full Height
Alarm/Buzzer	Yes
Activity/Failure LED	Yes
SAF-TE Connector	Yes
Board Dimensions	7.99"L X 4.37"W

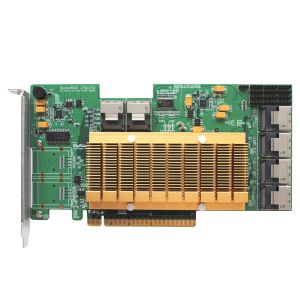

HighPoint RocketRAID 2760 – PCI-Express 2.0 X16 (extract from Page 6 of the user manual)
The RocketRAID 2760 host adapter is a high-performance SAS RAID solution, delivering reliability to demanding data-intensive applications such as tiered storage environments (disk-to-disk or disk-to-disk-to-tape backup), security and surveillance, video editing, and digital content creation.
Support for both 6Gb/s SAS and SATA drives on the same controller maintains configuration optimization for performance based on the characteristics of SAS and SATA drives available today.
HighPoint RAID Management HighPoint RAID Management software offers a user friendly interface to create, manage and maintain your storage solutions. Email notification and remote are some of the advance features that the RAID Management software has to offer.
COMPREHENSIVE OS SUPPORT
HighPoint offers the broadest range of support for all major operating systems to ensure OS and hardware server compatibility. Drivers are available for all major operating systems, including Windows, Linux and FreeBSD.
