Product Overview

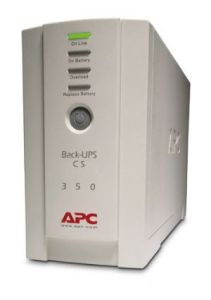

Description: APC Back-UPS, 350VA⁄210W, Input 230V⁄ Output 230V, Interface Port USB
General Features: Addl Surge Protected Outlets , Audible Alarms , Auto Diagnostic Testing , Hot Swap Batteries , Internet FAX - modem - DSL protection , Lightning and Surge Protection , Modem Protection , Software , Status Indicator LEDs , Unattended Shutdown , User Replaceable batteries , USB compatible
Includes CD with software , User Manual , USB cable
Documentation: User Manual
Technical Specifications
-Output
Output power capacity 350 VA
Output power capacity 210 Watts
Nominal output voltage: 230 V
Waveform type: Stepped approximation to a sinewave
Output Connections:
-(3)IEC 320 C13
-(1)IEC 320 C13 (Surge)
-(2)IEC Jumpers
Input
Nominal input voltage 230 V
Input frequency: 50⁄60 Hz +⁄- 5 Hz (manual switch)
Input Connection Type: IEC-320-C14 inlet
Input voltage range for main operations: 196 - 280 V
Batteries
Typical backup time at half load: 22.2 minutes
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 6 hour(s)
Replacement battery cartridge: (1) RBC2
Communications Management
Interface port USB
Control panel LED status display with On Line : On Battery Replace Battery and Overload indicators
Audible alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating: 300 joules
Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Dataline protection: RJ-11 Modem⁄Fax⁄DSL protection (two wire single line)
Physical
Maximum height dimensions: 3.60 inches ( 9.14 cm)
Maximum width dimensions: 6.50 inches ( 16.51 cm)
Maximum depth dimensions:Net weight: 13.90 lbs ( 6.32 kg)
Shipping Weight: 15.50 lbs ( 7.05 kg)
Shipping Height: 7.00 inches ( 17.78 cm)
Shipping Width: 9.50 inches ( 24.13 cm)
Shipping Depth: 14.50 inches ( 36.83 cm)
Color: Beige
Units per Pallette: 96.0
Environmental
Operating Environment: 0 - 40 °C (32 - 104°F)
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0-10000 feet (0-3000 m)
Storage Temperature: -15 - 45 °C (5 - 113°F)
Storage Relative Humidity: 0 - 95%
Storage Elevation: 0-50000 feet (0-15000 m)
Audible noise at 1 meter from surface of unit: 40 dBA
Online thermal dissipation: 19 BTU⁄hr
Conformance
Approvals:Equipment protection policy: Lifetime : 100000 Euro, Lifetime : 50000 GBP
