ThermalTake Armor A30 HTPC Case - NO PSU, Black
1xUSB3.0, 1xUSB2.0, 1xeSATA, 1xHD Audio, 1x230mm Blue LED Fan, Transparent Window, mATX

No Longer Available

Part Number:

167172

(?) Brand:

ThermalTake Web Site

Manuf No:

VM70001W2Z

Shipping Weight:

7 KG (Includes product packaging)
Estimate Shipping

Date Added:

24/3/2011

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

VM70001W2Z

VM70001W2Z

Feature

Characteristic black bulletproof armor design with metal mesh elements.
Top and front blue LED fan creates combat ambience and excellent ventilation.

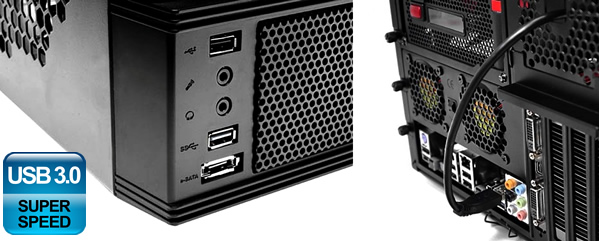

Front I/O with USB 3.0 SuperSpeed Connector.

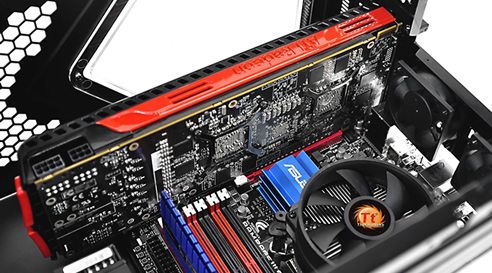

Support Micro-ATX/Mini-ITX motherboard and high-end graphic cards up to 13 / 33 cm.
Compact size ideal for Lanparty event

Full Modular Chassis


Anti-vibration design for 3.5 HDD	Compatible with 2.5 HDD and SSD	Removable motherboard tray

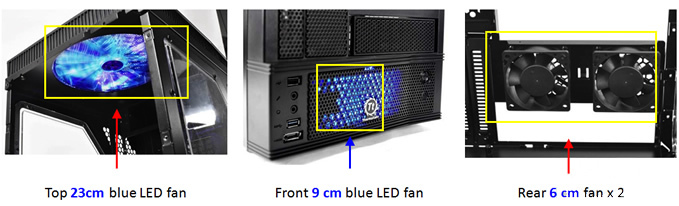

Built-in 4 fans for optimal air flow Built-in：Top 23cm blue LED fan, Rear 6 cm fan , Front 9 cm blue LED fan

Built-in latest USB 3.0 SuperSpeed connector - The transmission speed of USB3.0 is 4.8Gbps / Sec. and faster than USB2.0 10 times.

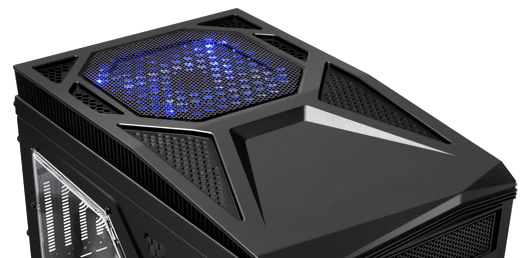

Top 23 cm blue LED fan for maximum ventilation - Top 23cm (230 x 230 x 20 mm) blue LED fan will exhaust warm air from CPU zone.

Specifications

Case Type	Gaming Cube
Material	SECC
Front Bezel Material	Plastic & Steel Mesh
Color	Black
Side Panel	Transparent Window
Motherboard Support	9.6 x 9.6 (Micro ATX), Mini-ITX
Motherboard Tray	Yes

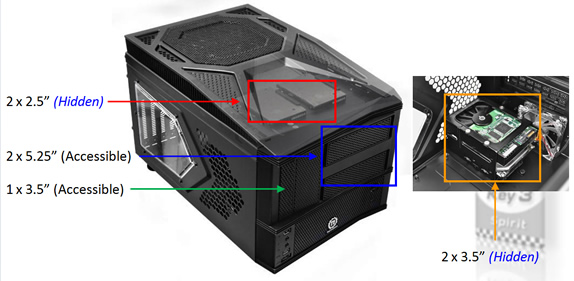

5.25" Drive Bay	2
Ext. 3.5" Drive Bay	1
Int. 3.5" Drive Bay	2 & 2 x 2.5" SSD / HDD
Expansion Slots	4
Front I/O Ports	USB 3.0 x 1 USB 2.0 x 1 eSATA x 1 HD Audio x 1
Cooling System	Front (intake) : 90 x 90 x 25 mm blue LED fan (1200rpm, 16dBA ) Rear (exhaust) : 60 x 60 x 25 mm fan x 2 (1500rpm,18dBA) Top (exhaust) : 230 x 230 x 20 mm blue LED fan (800rpm, 15dBA)
Liquid Cooling Capable	No
Liquid Cooling Embedded	No
Power Supply Supported	Standard PS2 PSU
Power Supply Included	No
*Dimension (HWD)*	266 x 291 x 456 mm 10.5 x 11.5 x 18.0 inch
Net Weight	6.7 kg 14.8 lb
Security Lock
Application	Portable LAN Party system
Warranty	3 Years

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
