P6T WS Professional
New Era Workstation Engine with multi storage solutions
- Intel Core i7 Processor Extreme Edition / Core i7 Processor / Xeon 3500 Series Processor
- Intel X58 / ICH10R
- True 16+2 Power Phase Design
- ASUS EPU 6-Engine & TurboV
- ATI CrossFireX & NVIDIA SLI Support
- 2 onboard SAS ports
- PCI-X Architecture
- G.P. Diagnosis Card Bundled
- ASUS Express Gate
- 100% High-quality Japan-made Conductive Polymer Capacitors!
VRM 5000hrs lifespan @105C, 500,000hrs @65C
A Powerful Workstation Engine Essential in Your Professional Studio
The ASUS Workstation Series is the ideal foundation for a powerful PC. It delivers awesome power, dependable performance and unparallel multiple I/O scalability for the most demanding tasks and future upgrades. Also, it provide extreme power saving experience with EUP 6 Engine function. The ASUS Workstation Series intelligently reduces operation noise and dissipates heat through advanced and environmentally friendly methods to accommodate user needs. Dont change yourself for a computer. Instead, let ASUS Workstation Series improves the quality of your work and life.
ASUS Workstation Exclusive Features
Diag. LED checks key components (CPU, DRAM, VGA card, and HDD) in sequence during motherboard booting process. If an error is found, the LED next to the error device will continue lighting until the problem is solved. This usr-friendly design provides an intuitional way to locate the root problem within a second.
Brightly and vividly lighting LEDs shine around the ASUS brand name on the motherboard after successful booting process. With the breath-like deep blue lighting shining in regular tempo, ASUS Heartbeat makes the motherboard as vivid as life.

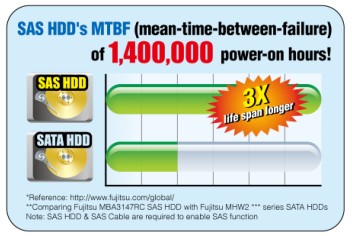

P6T WS Professional provides users with onboard SAS ports to support for hard drive upgration flexibility. SAS hard drive has safer, faster and more reliability for data trasfer and storage.
PCI-X, the new and improved version of the previous PCI, offers faster data transfers and enhanced system reliability. It is backwards compatible with PCI-based hardware and software.
G.P. Diagnosis Card (bundled)
Bundled with the P6T WS Professional motherboard, the G.P. Diagnosis card assists users in system checking by effortlessly and quickly providing precise system checks right after they switch on their PCs.
ASUS SASsaby Card Support
This motherboard is fully compatible with ASUS SAS card (the SASsaby card series, optional). Faster, safer and more stable, SAS will provide users with a better choice for storage expansion and upgrade needs.
CPU, Chipset and Graphics features
LGA1366 Intel Core i7 Processor Extreme Edition/Core i7 Processor
This motherboard supports the latest Intel Core7 processors in LGA1366 package with integrated memory controller to support 3-channel (6 DIMMs) DDR3 memory. Supports Intel QickPath Interconnect (QPI) with a system bus of up to 6.4GT/s and a max bandwidth of up to 25.6GB/s. Intel Core7 processor is one of the most powerful and energy efficient CPUs in the world.
LGA1366 Intel Xeon processor
This motherboard supports the latest Intel Xeon processors in LGA1366 package with integrated memory controller to support 3-channel (6 DIMMs) DDR3 memory. Supports Intel QickPath Interconnect (QPI) with a system bus of up to 6.4GT/s and a max bandwidth of up to 25.6GB/s. It can support DDR3 ECC un-buffered memory.
The Intel X58 Express Chipset is the latest chipset designed to support latest Intel Core7 processors and Intels next generation system interconnect interface, Intel QuickPath Interconnect (QPI), providing improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It also supports to 36 PCI Express 2.0 lanes providing better graphic performance.
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.
ATI CrossFireX Technology
ATIs CrossFireX boosts image quality along with rendering speed, eliminating the need to scale down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire. Adjust your display configurations, experiment with your advanced 3D settings, and check the effect with a real-time 3D-rendered preview within ATIs Catalyst Control Center to rule your CrossFireX system.
NVIDIA SLI (Scalable Link Interface) takes advantage of the increased bandwidth of the PCI Express bus architecture and features intelligent hardware and software that allows two GPUs to efficiently work together to deliver earth-shattering, scalable performance. For some applications nearly 2X performance! (From www.NVIDIA.com)
Triple-Channel DDR3 1600(O.C.)/1333/1066
The motherboard supports DDR3 memory that features data transfer rates of 1600(O.C.)/1333/1066 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The triple-channel DDR3 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 25.6 GB/s. Furthermore, the supply voltage for the memory is reduced from 1.8 V for DDR2 to just 1.5 V for DDR3. This voltage reduction limits the power consumption and heat generation of DDR3 which makes it an ideal memory solution.
ASUS Quiet Thermal Solution
ASUS EPU-6 Engine
System Level Energy Saving
The new ASUS EPU - the worlds first power saving engine, has been upgraded to a new 6 engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. With auto phase switching for components (which includes the CPU, VGA card, memory, chipset, drives and system fan), the EPU automatically provides the most appropriate power usage via intelligent acceleration and overclocking - helping save power and money.
ASUS True 16+2 Phase Power Design

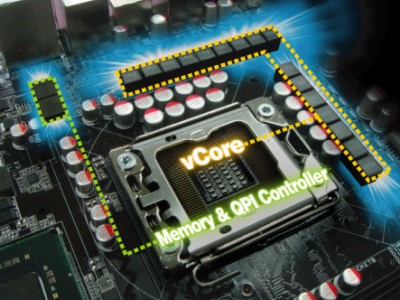

The breakthrough technology of 16+2 phase VRM design is bringing to the ASUS motherboards. 16+2 phase power design (16-phase to vCore; 2-phase to vDRAM/QPI controller inside CPU) can reach high power efficiency, dispel heat generated by VRM module effectively, and lower more temperature compared to other VRM solution. With the high quality power components such as low RDS (on) MOSFETs, Ferrite core chokes with lower hysteresis loss, and 100% Japan-made high quality conductive polymer capacitors, ASUS 16+2 phase VRM design also ensure longer component life, minimum power loss, and help to reach the superior overclocking score ever than before.
Feel the adrenaline rush of real-time OC - now a reality with the ASUS TurboV. This extreme OC tool lets you set new ambitions on the OC stage with an advanced and easy-to-use interface - allowing you to overclock without exiting or rebooting the OS. With micro adjustments of the CPU PLL, NB, NB-PCIe, and DRAM voltages in 0.02v intervals, there are no limits - only extreme results to break new OC records!
ASUS Express Gate
5 Secs Bootup to online
Taking only 5 seconds to go online from bootup, Express Gate is the one-stop gateway to instant fun! Its a unique motherboard built-in OS. You can utilize the most popular Instant Messengers (IM) like MSN, Skype, Google talk, QQ, and Yahoo! Messenger to keep in touch with friends, or quickly check on the weather and e-mails just before leaving your house. Whats more, the user-friendly picture manager lets you view your pictures without entering Windows at anytime!
* The actual boot time is subject to hardware configurations and product models
Best Quality Power Components
100% High-quality Japan-made Conductive Polymer Capacitors!(5000 hrs VRM)
Low RDS (on) MOSFETs with min. switching loss & lower temperature, Ferrite Core chokes with lower hysteresis loss, and 100% Japan-made high quality, long life conductive polymer capacitors.
ASUS Power Saving Solution
Minimize noise and power consumption when temporarily away!
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while youre sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.
ASUS Quiet Thermal Solution
Up to 20C(36F) Cooler - Stack Cool 2
Effective Fanless Heat Dissipation at 0dB
Stack Cool 2 is a fanless cooling solution offered exclusively by ASUS. It effectively and noiselessly transfers heat generated by the critical components to the other side of the specially designed PCB (printed circuit board) for effective heat dissipation - making temperatures cooler by up to 20C.
Lowers Temperatures by up to 10C
The aesthetic heat-pipe design effectively directs the heat generated by the chipsets to the heatsink near the back I/O ports - where it can be carried away by existing airflows from the CPU or a bundled optional fan. This innovative and groundbreaking fanless heat pipe design effectively lowers temperatures by up to 10C without having lifetime problems that a normal chipset fan has. Furthermore, it provides options for users to install side-flow fans or a passive cooler. This Heat Pipe design is the most reliable fanless thermal solution to date.
Active Quiet & Cool
ASUS Fan Xpert intelligently allows users to adjust both the CPU and chassis fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading.Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
ASUS EZ DIY
Easy and Comfortable Installations
The specially designed ASUS Q-Shield does without the usual "fingers" - making it convenient and easy to install. With better electric conductivity, it ideally protects your motherboard against static electricity and shields it against Electronic Magnetic Interference (EMI).
Make connection quick and accurate!
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.
CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
Conveniently store or load multiple BIOS settings
Freely share and distribute favorite overclocking settings
The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
Trusted Platform Module (TPM) system, which can securely store keys( for encryption/ decryption), digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.
*The TPM module is purchased separately
ASUS Crystal Sound
Eliminate background noise while recording
This feature detects repetitive and stationary noises like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.
SATA on the Go
The motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.
The Intel ICH10R chipsets incorporate Six Serial ATA connectors with high performance RAID function in RAID 0, 1, 10 and 5. Also, the built-in Marvell 6320 SAS controller provides two Serial Attached SCSI (SAS) connectors support RAID 0, and 1 function. This motherboard is the ideal solution to enhance hard disk performance and data back up protection without the cost of add-on cards.
Dual Gigabit LAN
The integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. This capability ensures rapid transfer of data from WAN to LAN without any added arbitration or latency.
IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.
High Definition Audio
Enjoy high-end sound system on your PC!
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.
The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.
||Intel Socket 1366 Core i7 Processor Extreme Edition/Core i7 Processor/
Intel Xeon W5500/3600/3500 Series
Intel Xeon X5600/5500 Series
Intel Xeon E5600/5500 Series
Intel Xeon L5600/5500 Series
Dual Cores/Quad Cores/Six Cores CPU Support
Supports Intel Dynamic Speed Technology
*Refer to www.asus.com for Intel CPU support list
||Intel X58 / ICH10R
||Up to 6400 MT/s ; Intel QuickPath Interconnect
||6 x DIMM, Max. 24 GB, DDR3 2000(O.C.)*/1866(O.C.)*/1800(O.C.)*/1600(O.C.)/1333/1066 ECC,Non-ECC,Un-buffered Memory
Triple channel memory architecture
Support Intel Extreme Memory Profile (XMP)
*Hyper DIMM (DDR3 1800MHz or above) support is subject to the physical characteristics of individual CPUs.
**Refer to www.asus.com. Or user manual for the Memory QVL (Qualified Vendor Lists.)
*** ECC Un-buffered memory support requires Intel Nehalem-WS 1S W3500 series or Nehalem-EP E5500 series processors
||2 x PCIe 2.0 x16 (at x16 / x16 mode)
1 x PCIe x1
1 x PCI 2.2
2 x PCI-X
||Supports NVIDIA 2-Way Geforce SLI or Quad-GPU SLI Technology*
Supports ATI CrossFireX Technology
* SLI support may need driver update. Visit www.asus.com for more details.
||Intel ICH10R controller
6 xSATA 3 Gb/s ports
Intel Matrix Storage Support RAID 0,1,5,10
Marvell 88SE6320 SAS controller
2 x SAS ports supporting SAS RAID 0, 1
Marvell 88SE6121 SATA controller
2 xExternal SATA 150/300 (SATA On-the-G0), supporting SATA RAID 0, 1
||2 x Realtek 8111C PCIe Dual Gigabit LAN controllers - Support teaming function
||ADI 2000B, 8-Channel High Definition Audio CODEC
Front Panel Jack-Retasking
Coaxial / Optical S/PDIF out ports at back I/O
||LSI Agere FW3227 controller supports 2 x 1394a port(s)
||12 USB 2.0/1.1 ports
|ASUS Workstation Special Features
||G.P. Diagnosis Card bundled
ASUS SASsaby Cards support
ASUS WS Diag. LED
ASUS WS Heartbeat
||EPU - 6 Engine
True 16+2 Phase Power Design
Fanless Design: Heat-pipe solution
Fanless Design: Stack Cool 2
My Logo 2
CrashFree BIOS 3
EZ Flash 2
C.P.R.(CPU Parameter Recall)
SFS (Stepless Frequency Selection)
|Back Panel I/O Ports
||PS/2 KB/MS combo port
2 x RJ45
S/PDIF Out (Coaxial + Optical)
6 x USB 2.0/1.1 ports
2 x eSATA
1 x IEEE1394a
1 x 8-channel Audio I/O
|Internal I/O Connectors
||24-pin EATX Power connector
8-pin ATX +12V Power connector
CPU fan with PWM control
Chassis fan1 with Q-fan control
Chassis fan2 with Q-fan control
Chassis fan3 w/o Q-fan control
CD audio in
3 x USB connectors support additional 6 USB ports
20-pin Panel connector
1 x IEEE 1394a port
S/PDIF Out header
Front panel connector
||16 Mb Flash ROM AMI BIOS, Green, PnP, DMI v2.0, Wfm2.0, ACPI v2.0a, SMBIOS v 2.4BIOS flash utility under DOS
||WOL/WOR by PME, WOR by Ring, AI NET2, Chassis Intrusion
ASUS PC Probe II
Anti-Virus Software (OEM version)
Adobe Acrobat Reader ver 8.0
Microsoft DirectX ver 9.0C
||ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )
