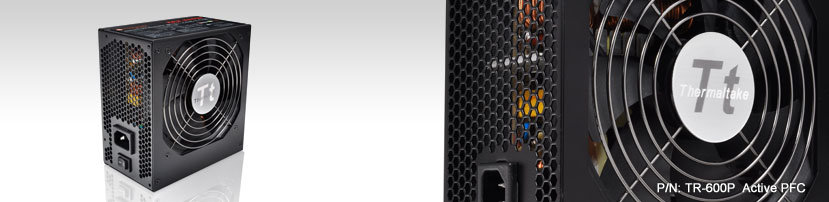

ThermalTake 600W TR2 - ATX 12V v2.2, 120mm Fan, 80 PLUS Bronze, Active PFC, Ultra Quiet
  • 6x SATA, 1x PCI-E 6-pin

IMG 1 of 0
No Longer Available
Part Number:
167631
(?) Brand:
ThermalTake Web Site
Manuf No:
TR-600PCAU
TR600PCAU
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
TR600PCAU, TR-600PCAU, SPTTR600W, SP-TTR600W

TR-600PCAU

Features


  • ATX 12V V2.3 enables most reliable and robust power delivery.
  • Stable 600W continuous output (peak power 720W) @ 40 ? operating environment.
  • Robust and dedicated single +12V output provides superior performance under all types of system loading.
  • 80 PLUS Bronze Certified: with 82-88% efficiency @ 20-100% load under real world load conditions.
  • Double-forward switching circuitry offers low power loss and high reliability.
  • Universal AC input 100V~240V automatically scans and detects the correct voltage.
  • High quality 105 ? Japanese main capacitor provide uncompromised performance and reliability.
  • 99% Active Power Factor Correction provides clean and reliable power to your system.
  • Ultra-silent operation with intelligent 12cm cooling fan speed control.
  • Intel & AMD CPU compliant.
  • Nvidia & ATI/AMD graphic card compatible.
  • Dimension: 150mm(W)x86mm(H)x140mm(L).
  • High reliability: MTBF>100,000 hours.
  • Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections.
  • Safety / EMI : UL/ CUL, VDE, CE, FCC, CB, GOST and BSMI certified.

Technology Features


High Quality 105C Japanese Electrolytic Capacitor
105C Japanese main capacitor provides uncompromised performance and reliability.
Industrial Grade Protection
Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections
Ultra Quiet 12cm Fan
New TR2 series adopt 12cm cooling fan with intelligent RPM control guarantees cool performance and silent operation.


High Efficiency Circuit Design
Maximum efficiency up to 88% under wide load range.

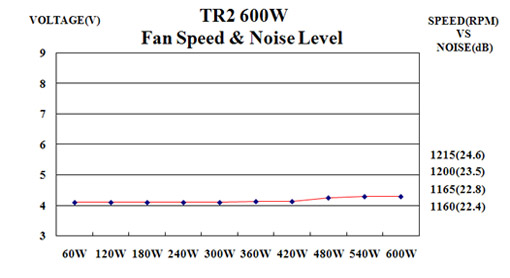

Fan Speed & Noise Level


ECO Design


80 Plus Bronze Certified

New TR2 Series saves energy through its high energy efficiency of up to 88% and is 80 PLUS® Bronze certified

ErP Ready
New TR2 Series fulfils the EU guideline for ErP (Energy-related Products) that are scheduled to apply starting in 2010.

Supports Energy Star 5.0* energy standard:
New TR2 Series is suitable for use in Energy Star-compatible computers.

Supports Intel Deep Power Down C6 Status:
New TR2 Series helps your PC system operate more power efficiently.

Corresponds to the EU directives on WEEE and RoHS:
Thermaltake considers its full impact on the environment during manufacturing and maintains green facilities to ensure TR2 meets WEEE & RoHS requirements.

Output Specification

TR-600P

AC INPUT

Input Voltage: 100V-240V~
Input Current: 9.5A - 4.5A
Frequency: 50Hz-60Hz
DC OUTPUT +5V +3.3V +12V -12V +5Vsb
Max Output Current 25A 25A 50A 0.8A 3.0A
Max Output Power 140W 600W 9.6W 15W

Continuous Power

 600W

Total Protection


Voltage Source

Over Current Protection

Over Voltage Protection

Under Voltage Protection

Protection Point (Max.)

Protection Point

+3.3V

60A

3.76V~4.8V

2.0V~2.4V

+5V

48A

5.6V~7.0V

3.3V~3.7V

+12V

80A

13.0V~16.5V

8.5V~9.5V

Short Circuit Protection: Activated when any DC rails short circuited.

Over Power Protection: Protection at 110%~130% full load.


Total Output Connector

P/N
Main Power
(24 PIN)
ATX 12V
(4+4PIN)
PCI-E
(6+2PIN)
PCI-E
(6PIN)
SATA
(5PIN)
peripheral
(4PIN)
FDD
(4PIN)
TR-600P
1
1
1
1
6
6
1

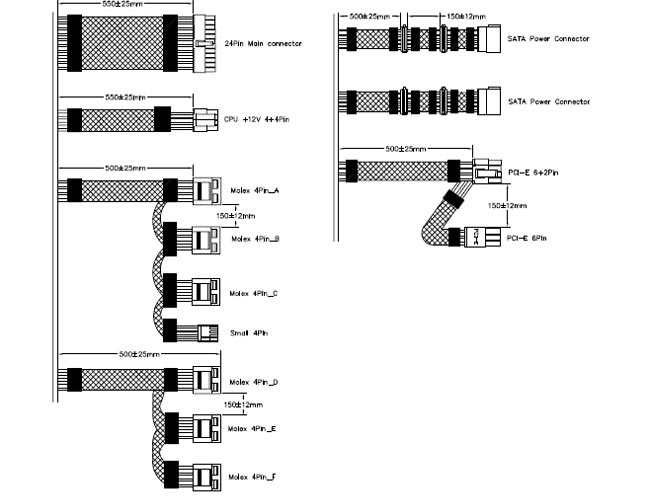

Model Connector Type Connectors & Cable length
600W 24pin 1 x 20+4pin Main connector(550mm)
ATX 12V 4+4pin 1 x ATX 12V 4+4pin Connector (550mm)
PCI-E 6+2pin & 6pin 1 x 6+2pin & 1 x 6pin PCI-E connector (500mm + 150mm)
Molex & FDD 3 x Peripheral & 1 x FDD connectors (500mm + 150mm + 150mm + 150mm)
3 x Peripheral connectors (500mm + 150mm + 150mm)
SATA 3 x S-ATA connectors (500mm + 150mm + 150mm)
3 x S-ATA connectors (500mm + 150mm + 150mm)



Specification

P/N TR-600P
Model TR2-600AH2NFB
Type Intel ATX 12V 2.3
Max. Output Capacity 600W
Peak Output Capacity 720W
Color Black
Dimension ( W / H / D ) 150mm x 86mm x 140mm
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time 17msec (minimum) @ full load at 115Vac/ 230Vac input.
Input Current 9.5A 4.5A
Input Frequency Range 50 Hz - 60 Hz
Input Voltage 100 Vac- 240 Vac
Operating Temperature +10? to +50?
Operating Humidity 5% to 95%,non-condensing
Storage Temperature -20 ? to +80 ?
Storage Humidity 5% to 95%, non-condensing
Cooling System 120mm Fan:2700 R.P.M. 10%
Efficiency 82-85% efficiency @ 20-100% load
MTBF 100,000 hrs minimum
Safety Approval UL/CUL, FCC, TUV, VDE, CE, CB, BSMI, GOST

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.
