This new Addonics drive enclosure is one of the most advanced in the market today. Come with both high speed USB 3.0 and eSATA interface, the enclosure is large enough to accomodate any SATA hard drives or SATA optical drive. With the addition of an optional IDE-SATA converter, IDE drive or ATAPI optical drive can also be converted into an USB 3.0 and eSATA external storge device.
Since external hard drive connected to eSATA port appears as an internal hard drive to the OS, the eSATA interface with a bootable hard drive inside can be used to boot up a computer, great for system rescue operation or computer sharing in training and various type of applications that require an external boot drive.
Constructed in full aluminum body for durability and effective heat dissipation for some of the high performance hard drives, the two drive enclosure provides ample space to accommodate even the large standard height DVD-RRW drive. The drive enclosure is also designed to work with Addonics Mobile Rack II, the Snap-In Mobile Rack and turn them into externally hot swappable removable drive system.
Product Features
- Connect SATA drive to computer via USB 3.0 or eSATA port
- Choice of model for SATA hard drive or SATA / IDE hard drive
- Support the following SATA devices -
- SATA I/II/III hard drive or SSD in 3.5" or 2.5" form factor
- full height 5.25" SATA Blu-Ray, DVD-RRW drive
- Addonics Snap-in Mobile Rack, Mobile Rack II
- Addonics Ruby Drive Cartridge System
- Maximum transfer rate:
- 5 Gbps USB 3.0 super speed
- 480 Mbps USB 2.0 high speed
- 12 Mbps USB 1.1
- 6 Gbps - eSATA

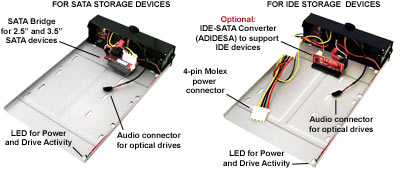

- Support IDE and ATAPI devices when install with the optional IDE-SATA converter (part # ADIDESA)

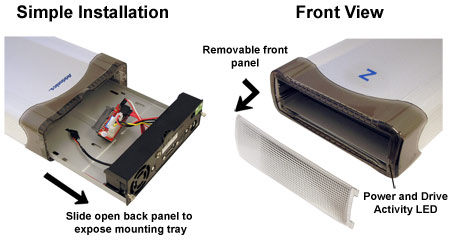

- Simple installation
- Sturdy aluminum construction
- Compact size for convenient transportation
- Rear mount 40x40mm cooling fan
- Plug and play
- Stereo ear phone jack
- Bootable under DOS (requires support from motherboard BIOS) using SATA or USB connection
- OS Compatibility:
- USB 3.0 - Windows 7, Vista, 2003, XP
- USB 2.0/1.1 - DOS, Windows 7, Vista, 2003, XP, 2000, Me, Mac OS X, Linux Kernel 2.4 and above, Solaris 8 10/00 or later release.
- eSATA - DOS, Windows NT4(SP6), Windows 7, Vista, 2003, XP, 2000, Me, Mac OS X, Linux Kernel 2.4 and above
ZESSIU3CS

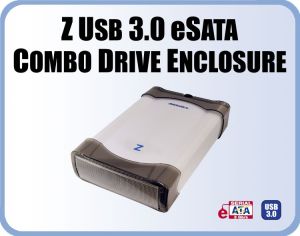

Z USB 3.0 / eSATA combo drive enclosure for SATA or IDE hard drive or optical drive
Content: Z eSATA drive enclosure (ZESACS), IDE - SATA adapter (ADIDESA) installed , 3ft eSATA-eSATA connecting cable (AAESATA100C), USB 3.0 / 2.0 to eSATAp Adapter (ADU3ESA), 100/240 AC/DC 12V power adapter (AAPAC12V-US), User Guide, Driver CD
Specifications
|
Support drive type
|
3.5" SATA hdd, 2.5" SATA hdd and optical drive
3.5" IDE hdd and optical drive when used in conjunction with IDE-SATA adapter (ADIDESA) |
|
Interface Type:
|
USB 3.0 / 2.0
eSATA
|
|
Construction material:
|
Aluminum body
|
|
LED
|
Power(Green) and Drive Activity(Red) LED
|
|
Audio jack
|
Stereo earphone jack (applicable for ATAPI optical drive only)
|
|
Supported OS
|
Windows 98SE, Me, 2000, XP, DOS, Linux (Kernel 2.4 and above), Solaris 8, Mac OS X 10.4.x
(bundled software works under Windows OS only)
|
|
Power Supply:
|
100 / 240V AC/DC 12V / 5V 34 Watts Power Adapter (AAPAC12V-US)
|
|
Cooling system:
|
Rear mount 40x40 mm cooling fan
|
|
Dimensions:
|
10.16 x 6.61 x 2.36 in.
(258 x 168 x 60 mm)
|
|
Weight:
|
|
|
Storage Temperature:
|
Range: -30C to +60C
|
|
Operating Temperature:
|
Range: +5C to +40C
|
|
Storage Humidity:
|
5% to 90%
|
|
Operating Humidity:
|
5% to 95%
|
|
Warranty:
|
One Year
|
