No Longer Available

Part Number:
168675
(?) Brand:
Manuf No:
ST500NM0001
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
ST500NM0001, 7636490028090
Seagate Constellation ES fifth-generation drives lead the industry with a range of high-capacity enterprise drive options. Available in both 6Gb/s SAS and SATA interfaces, these drives feature enterprise-class reliability with the power and performance efficiencies that make them ideal for capacity-optimised, 24x7 multi-drive server and storage environments.

Key Features and Benefits

  • Reduces design and support costs by building on the Seagate best-in-class enterprise storage foundation
  • Features a range of high capacities from 500GB to 2TB in a 3.5 inch enterprise-class hard disc drive
  • Offers a traditional 3.5 inch form factor with enhanced rotational vibration tolerance and high data integrity for enterprise-class reliability in a cost-effective drive
  • Delivers proven reliability, with an MTBF* of 1.2 million hours and enhanced end-to-end data integrity with the Protection Information feature
  • Lets you choose a 6Gb/s Enterprise SATA or 6Gb/s SAS interface, which eases integration and delivers up to double the throughput of 3Gb/s nearline hard drives
  • Reduces energy and cooling costs, with the lowest power consumption of any nearline 3.5 inch drive
  • Includes Seagate PowerChoice technology for even greater on-demand power savings during slow or idling periods
  • TCG-compliant, Self-Encrypting Drive (SED) security option eliminates the need to overwrite or physically destroy drives, enables safe return of drives for warranty or expired lease purposes, and allows organisations to repurpose or sell hard drives securely**
  • Meets regulatory data security compliance requirements and is FIPS 140-2 Validated to protect data classed as Sensitive but Unclassified and Protected **.

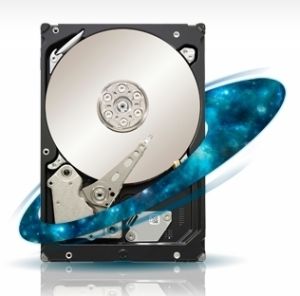

Seagate Constellation ES SAS 6Gb/s 500GB Hard Drive

ST500NM0001

Specifications
Model Number ST500NM0001
Interface 6-Gb/s SAS
Cache 64MB
Capacity 500GB
Areal density (avg) 324Gb/in2
Guaranteed Sectors 976,773,168
PHYSICAL
Height (maximum) 26.10mm (1.028 in)
Width (maximum) 101.85mm (4.010 in)
Length (maximum) 147.00mm (5.787 in)
Weight (typical) 610g (1.34 lb)
PERFORMANCE
Spin Speed (RPM) 7200 RPM
Sustained data transfer rate 147Mb/s
Average latency 4.16ms
Random read seek time 8.5ms
Random write seek time 9.5ms
I/O data transfer rate 600MB/s
Unrecoverable read errors 1 in 1015
RELIABILITY
MTBF 1,200,000 hours
Annual Failure Rate 0.73%
POWER
12V start max current 1.93A
5V start max current 0.61A
Average idling power 4.32W
Average operating power 6.76W
ENVIRONMENT
Ambient Temperature
Operating 560C
Non-operating -4070C
Maximum operating temperature change 20C per hour
Maximum non-operating temperature change 20C per hour
Shock
Operating shock (max) 70 Gs for 2ms
Non-operating shock (max) 300 Gs for 2ms
ACOUSTICS
Acoustics (Idling Volume) 2.7 bels

Specification Sheets / Installation guides / Associated files

Warranty: 3 Years Limited Warranty

Full manufacturers warranty details are available at the manufacturers (Seagate) web site.
