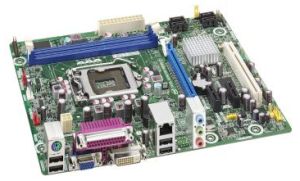

Smarter performance and a seamless visual experience are now possible with the Intel Desktop Board DH61CR based on the Intel H61 Express Chipset and supported by 2nd generation Intel Core processor family, including Intel Core i7 and Intel Core i5 processors and other Intel processors in the LGA1155 package.
This board delivers superb visual performance for sharper images, richer color, and lifelike videos as it comes equipped with DVI-D and VGA ports to support flexible, dual independent display for processors with Intel HD Graphics.
The Intel Desktop Board DH61CR is Microsoft Windows* 7 Ultimate and Windows Vista* Ultimate WHQL certified.
Features and configurations
| Form factor |
MicroATX |
| AA# ( Altered Assembly) |
G14064-xxx |
| BIOS ID string |
BEH6110H.86A |
| Processor |
At product launch, this desktop board supports:
- Intel Core i7 processor series in an LGA1155 socket
- Intel Core i5 processor series in an LGA1155 socket
- Intel Core i3 processor series in an LGA1155 socket
- View all compatible Intel processor numbers
|
| Memory |
- Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
- Support for DDR3 1333 /1066 MHz DIMMs
- Support for up to 8 GB1 of system memory
|
| Chipset |
- Intel H61 Express Chipset
|
| Audio |
Intel High Definition Audio (Intel HD Audio)2 subsystem in the following configuration:
- 6-channel (5.1) audio subsystem with three analog audio outputs using the Realtek ALC892* audio codec
|
| Graphics |
DVI-D and VGA connectors for processors with Intel HD Graphics |
| LAN support |
Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel 82579V Gigabit Ethernet Controller |
| Peripheral interfaces |
- Up to ten USB 2.0 ports
- Four Serial ATA 3.0 Gb/s ports
- One serial header
- One parallel port
|
| Expansion capabilities |
- One PCI Express* 2.0 x 16 bus add-in card connector ports
- Two PCI Express 2.0 x 1 connectors
- One PCI Conventional bus connector
|
