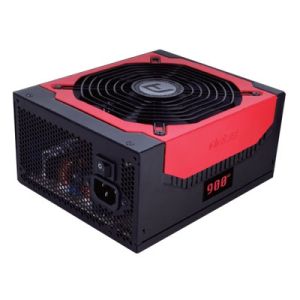

Gaming Power Goes Mainstream
Making quad rail power and highly advanced power supply design available at a popular wattage, the HCG-900 features special High Current connectors and heavy-duty cabling, earning it NVIDIA SLI-Ready and ATI CrossFire certifications. At the same time the HCG-900 is also 80 PLUS Bronze certified for efficiency, and features active PFC with a swift, quiet 135 mm double ball bearing fan so you know you're getting not only High Current, but also high efficiency and excellent cooling. If loads of power, High Current engineering and exceptional efficiency are what you're after, the HCG-900 is the perfect PSU for you.
Features:
900 watts of Continuous Power
NVIDIA& SLI-Ready certified, ATI CrossFire certified
80 PLUS Bronze certified - up to 88% efficienct
Quad High Current +12V rails with high maximum load for better graphics card compatibility
Quiet 135mm double ball bearing cooling fan with low start voltage
Four gold-plated 8 (6+2)-pin PCI-E connectors for multiple-graphics card configurations
All Japanese brand capacitors for reliability
ATX12V version 2.3 and EPS version 2.91 compliant
Gold-plated High Current terminals for optimal conductivity
Universal Input - works on any 100V - 240V grid
Active PFC with PF: 0.99 - less harmonic pollution, greater efficiency
Full suite of industrial grade protection:
- Over current protection (OCP)
- Over voltage protection (OVP)
- Short circuit protection (SCP)
- Over power protection (OPP)
- Over temperature protection (OTP)
MTBF: 100,000 hours
Meets 2010 EUP requirement: 5Vsb < 1W
Safety: cUL, TUV, CE, CB, FCC, C-TICK, CCC, BSMI, Gost-R
AQ5 Antec Quality 5-year limited warranty on parts and labor
Unit Dimension
- 86 mm (H) x 150 mm (W) x 180 mm (D)
- 3.4" (H) x 5.9" (W) x 7.1" (D)
Package Dimension
- 124 mm (H) x 310 mm (W) x 180 mm (D)
- 4.9" (H) x 12.2" (W) x 7.1" (D)
Weight
- Net : 6.0 lbs / 2.7 kg
- Gross : 7.5 lbs /3.4 kg
Certification:
| |
Output
Voltage |
|
Load
MIN |
|
Range
MAX |
|
Reg. |
|
OCP Set
Point |
Ripple &
Noise |
| |
+5V |
|
0A |
|
25A |
|
5 |
|
38A |
50 |
| |
+12V1 |
|
0A |
|
40A |
|
5 |
|
52A |
120 |
| |
+12V2 |
|
0A |
|
40A |
|
5 |
|
52A |
120 |
| |
+12V3 |
|
0A |
|
40A |
|
5 |
|
52A |
120 |
| |
+12V4 |
|
0A |
|
40A |
|
5 |
|
52A |
120 |
| |
-12V |
|
0A |
|
0.5A |
|
10 |
|
|
120 |
| |
+5VSB |
|
0A |
|
3A |
|
5 |
|
|
50 |
| |
+3.3V |
|
0A |
|
25A
|
|
5 |
|
38A |
50 |
+5V and +3.3V combined max. output: 150W
+12V outputs combined max. output: 850W (70.8A)
Input
| Input Voltage |
|
100~240VAC 10% |
| Input frequency Range |
|
47Hz ~ 63Hz |
| Efficiency |
|
Up to 88% |
