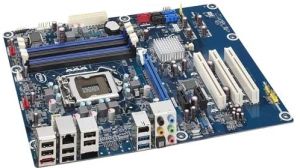

Intel DP67BAB3 Motherboard - Retail
  • LGA1155, P67 (B3 Stepping), 4xDDR3-1333, 1xPCI-Ex16 v2.0, 2xSATA-III, 3xSATA-II, 1xeSATA-II, RAID, 1xGigLAN, 8Chl-HD, USB3.0, ATX

IMG 1 of 1
No Longer Available
Part Number:
169422
(?) Brand:
Intel Web Site
Manuf No:
BOXDP67BAB3
Shipping Weight:
2.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
BOXDP67BAB3, 1518498, 735858221054

The Intel Desktop Board DP67BA is an Intel P67 Express chipset based desktop product in ATX form factor. Delivers the exceptional computational performance of 2nd Generation Intel Core family of processors. The DP67BA board features built-in flexibility to maximize performance by tuning the processor and the memory frequencies. Other premium features include SATA 6 Gb/s ports to support the latest in SSD technologies, SuperSpeed USB 3.0 ports for highest speed connections to USB peripherals, and High Definition Audio (Intel HD Audio) with 7.1 surround audio with multi-streaming capability.

Features and configurations

Form factor ATX
AA# (Altered Assembly) G10219-xxx
BIOS ID string BAP6710H.86A
Processor At product launch, this desktop board supports:
  • Intel Core i7-2000 processor series in an LGA1155 socket
  • Intel Core i5-2000 processor series in an LGA1155 socket
  • Intel Core i3-2000 processor series in an LGA1155 socket
  • View all compatible Intel processor numbers
Memory
  • Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR3 1333 /1066 MHz DIMMs
  • Support for up to 32 GB  of system memory
Chipset
  • Intel P67 Express Chipset (B3 Stepping)
  • Intel Rapid Storage Technology for RAID 0,1,5 and 10
Graphics Discrete graphics support for PCI Express 2.0 x16 add-in graphics card
Audio Intel High Definition Audio  subsystem in the following configuration:

  • 10-channel (7.1+ 2 independent multi-streaming) audio subsystem with three analog audio outputs using the Realtek* ALC888 audio codec
  • " Five analog audio ports and one optical S/PDIF out port
  • " Internal S/PDIF header and front panel audio header
LAN support Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel 8259V Gigabit Ethernet Controller
Peripheral interfaces
  • Two Serial ATA 6.0 Gb/s ports
  • Three Serial ATA 3.0 Gb/s ports, with one port compatible with eSATA extension
  • One eSATA 3.0 Gb/s port
  • Two USB 3.0 ports
  • Fourteen USB 2.0 ports, six back panel ports and eight additional ports via four internal headers
  • Two IEEE 1394a ports (one external and one internal header)
Expansion capabilities
  • One PCI Express* 2.0 x 16 bus add-in card connector
  • Three PCI Conventional bus connector
  • Two PCI Express 2.0 x 1 connectors
