All stock codes associated to this product
X461S, 13NECX461S, 13NEC-X461S

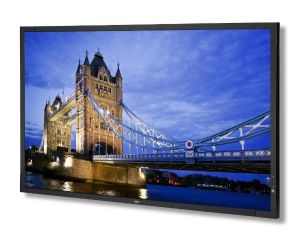

46" Super-Slim Professional-Grade Large-Screen Display
MODEL: X461S
Operating digital signage has never been easier than with the 46" NEC X461S. This super-slim. full HD LCD display offers LED backlighting technology to deliver high-quality imagery at a lower power consumption than its peers. The industry's first standardized input, the Open Pluggable Specification (OPS) slot, increases flexibility for users in any digital signage application, including video walls where the X461S can be implemented into configurations up to 10x10. Enhanced connectivity comes in the form of DisplayPort, HDMI and an expansion slot for NEC accessories or third-party components.
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for 24/7 operation
- Built in, standardized expansion slot allows for seamless integration of NEC/third-party components, simplifying installations
- LED-backlighting technology improves power consumption and allows for a slimmer cabinet depth
- TileMatrix allows you to create video walls up to 10 x 10
- Real-time clock has the ability to set schedules for on/off times 24/7 and can be set to warm up 30 minutes before use for optimum color representation.
Product Specifications
Display
Panel Technology - SPVA (P-DID)
Viewable Image Size - 46
Native Resolution - 1920 x 1080
Pixel Pitch - 0.53
Pixels Per Inch - 47
Brightness (typical) - 500
Contrast Ratio (typical) - 3000:1
Viewing Angle - 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Refresh Rate - 120Hz
Aspect Ratio - 16:9
Active Screen Area - 40.1 x 22.5 in. / 1018.4 x 572.5 mm
Orientation - Landscape/Portrait
Displayable Colors - More than 16.7 million
Synchronization Range
Horizontal (Analog/Digital) - 31.5-91.1 kHz
Vertical - 50-85 Hz
Input Signal
Video - Analog RGB 0.7 Vp-p/75 Ohms
Sync - Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
Connectivity
Supported Video Formats - 720 x 400, 640 x 480, 800 x 600, 832 x 624, 1024 x 768, 1280 x 1024, 1600 x 1200, 1280 x 768, 1360 x 768, 1920 x 1080
PC Signal Compatibility - Yes
Macintosh Compatibility - Yes
Input Terminals
Digital - DisplayPort, HDMI, DVI-D
Analog - VGA 15-pin D-sub, BNC Composite
Audio - Audio Mini-Jack, DisplayPort Audio, HDMI Audio
External Control - RS-232C, LAN, DDC/CI
Output Terminals
Audio - Audio Mini-Jack, External Speaker Jack (2)
Digital - DVI-D
External Control - RS-232C
Power Consumption (typical)
On - 135
ECO Mode Standby - <2W
Physical Specifications Bezel Width (Left/Right, Top/Bottom) - 0.83 in./0.83 in., 0.83in./0.83in. ; 21mm/21mm, 21mm /21mm
Dimensions (WxHxD) Net (with stand) - 41.8 x 26.2 x 13 in. / 1062.7 x 665.1 x 330mm
Net (without stand) - 41.8 x 24.3 x 1.7 in. / 1062.7 x 618.1 x 43.3mm (w/o OPS card)
Shipping - 48.4 x 31.2 x 8.9 in. / 1230 x 792 x 225mm
Weight Net (with stand) - 46.3 lbs. / 21 kg
Net (without stand) - 44.1 lbs. / 20 kg
Shipping - 55.6 lbs. / 25.2 kg
VESA Hole Configuration Specifications
300 x 300mm (4-hole)
Environmental Conditions
Operating Temperature 41-104°F / 5-40°C
Operating Humidity 20-80%
Operating Altitude 13,780 ft. / 4200m
Storage Temperature -4-140°F / -20-60°C
Storage Humidity 10-90%
Storage Altitude 40,000 ft. / 12,192m
Limited Warranty (parts & labor, including backlight)
3 years
Additional Features
* Advanced thermal capabilities
* Sealed panel design
* Thin bezel
* TileMatrix (10x10)
* TileComp
* Separate group/Monitor ID function
* CableComp+
* Ethernet Control and Communication
* RS-232 Control and Communication
* Landscape/portrait capable
* Carbon footprint meter
* Plug and Play (DDC/CI, DDC2B)
* Scheduler (w/ real-time clock)
* Sharpness/softness adjustment
* Screen saver function
* Ambient light sensor (AmbiBright)
* 6-axis color adjustment
* Metal rear cabinet
* POP
* Side-by-Side
* Handles
* Variable picture modes
* Advanced video settings (Noise Reduction, Adaptive Contrast)
* Input labeling
* Backlight adjust
* Aspect ratio control
* Built-in speakers
* LED edge-lit backlighting
* 10-bit color over HDMI
* OPS/Expansion slot
