Vivotek NR8201 Network Video Recorder - 4-Channel PoE, Real-time

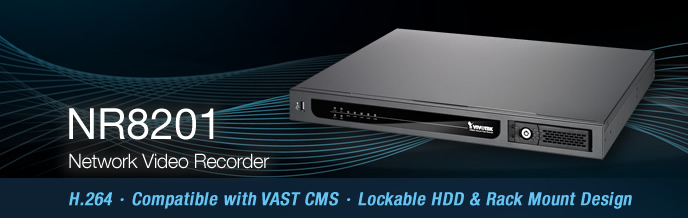

H.264 Compatible with VAST CMS Lockable HDD & Rack Mount Design Network Video Recorder NR8201





VIVOTEK's NR8201 network video recorder offers an elegant recording solution for VIVOTEK network cameras and performs real-time monitoring and recording simultaneously. It supports up to 4-CH H.264, MJPEG, and MPEG-4 video and provides multiple recording modes including alarm recording, scheduled recording, manual recording and continuous recording. The installation is very simple as the camera is able to be inserted utomatically when it's plugged in. It also offers a user-friendly interface for the user to configure the network settings and the camera control. Moreover, the 802.3af compliant PoE (Power-over-Ethernet) is able to reduce the complex of the installation, making NR8201 the cost-effective recording systems. The user can utilize the NR8201 to record high-definition mega-pixel videos on removable hard disk(s) with large capacity and a USB interface for data backup. The NR8201 also supports an external hard disk from the eSATA interface. The built-in gateway separates the network camera connection and the data network connection for the prevention of network congestion. Functional four digital inputs and one digital output interfaces are capable of integrating with the security sensors and alarms. The NR8201 are comprehensive network video recorders featuring with multiple functions to provide the best quality and highest performance in network video recording.











System	CPU: Marvell 88F6281 1.2G Flash: 128MB RAM: 512MB Embedded OS: Linux
Pan/Tilt/Zoom	Pan/tilt/zoom control of VIVOTEK cameras
Video	Compression: H.264, MPEG-4 & MJPEG
channels	Support Up to 4 channels
Hard Disk	Supports 3.5" SATA I/II HDD x 1, Up to 2TB (Support RAID 0, 1 scalable storage)
Compatibility	Supports VIVOTEK all series of network cameras
Recording Throughput	Total: 16 Mbps
Recording Policy	Alarm recording Scheduled recording Continuous recording Manual recording
Connectors	1 x Gigabit, RJ45 (1 WAN ports) 4 x Ethernet 10/100 BaseT, RJ45 (4 LAN ports) USB socket for backup eSATA for external HD Terminal block: 4x Digital Input 1x Relay Output 1x Power Output ( 12V 1A )
Camera Management	Auto or manual installation for VIVOTEK cameras Video and network configuration through NR8201
History Playback	Playback of recorded media with time navigations
Networking	10/100 Mbps Ethernet, RJ-45 Protocols: IPv4, TCP/IP, HTTP, RTSP/RTP/RTCP, IGMP, SMTP,FTP, DHCP, NTP, DNS, DDNS, 3GPP
Alarm and Event Management	4 D/I & 1 D/O for external sensor and alarm Event notification using SMTP
Security	Multi-level user access with password protection IP address filtering
Users	10 clients on-line monitoring at the same time
Dimensions	Depth: 446.4mm Width: 330.2mm Height: 43.6mm
Weight	Net: 4000 g
LED Indicator	System power and status indicator System activity and network link indicator
Power	100 ~ 240V AC Power consumption: Max. 0.48 W Power consumption: Max. 60 W (with 4 PoE cameras) 802.3af compliant Power-over-Ethernet
Approvals	CBCEC-TickFCCVCCI
Operating Environments	Temperature: 0 ~ 50 C (32 ~ 122 F) Humidity: 20% ~ 80%
Viewing System Requirements	OS: Microsoft Windows 2000/XP/Vista/7 Browser: Internet Explorer 6.x or above Cell phone: 3GPP player
Installation, Management, and Maintenance	Support VIVOTEK joystick Installation Wizard 2 VAST $Central management software Supports firmware upgrade
Applications	SDK available for application development and system integration
Warranty	24 months
