Netgear XAVB5001
The Netgear XAVB5004 is part of Netgear Australia top line up.
Meet the Netgear XAVB5004, a unique device in the crowded power over Ethernet market. The XAVB5004 kit consists of a Powerline XAV5001 (as seen in the Netgear XAVB5001 kit) and the XAV5004; a POE enabled, four port switch for your entertainment room.

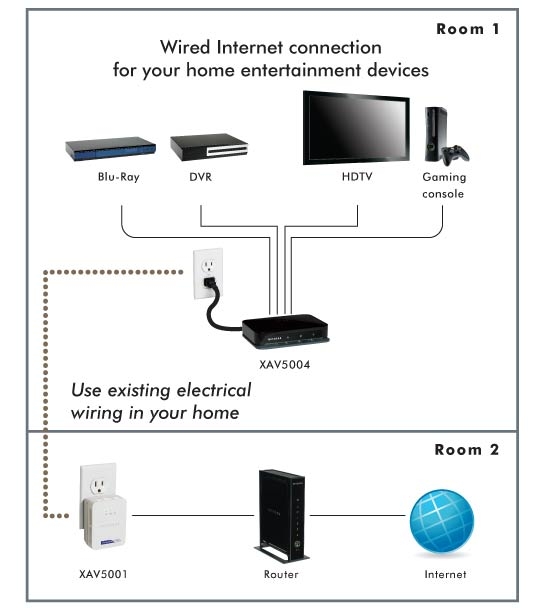

Setup is simple, place the XAV5001 near your router or homes central network switch and connect with an Ethernet cable. Connect the XAV5004 to the power point in your entertainment room and voila. Complete, well after you setup POE on the two devices. No additional cables or wi-fi setup required. The XAVB5004 kit can be used with an existing installation of Netgear XAVB5001.
The main advantage of the Netgear XAVB5004 over alternative POE setups for entertainment areas is the simplicity. Generally a setup would include two POE adapters plus a switch for your home entertainment equipment and consoles, however the XAVB removes the second POE adapter and integrates it into the media room switch! This not only saves you money, it also saves on bulky power connectors in a typically overloaded environment.
Connect your Internet read TVs, Blu-ray players, gaming consoles and media player to your home network via the power point.
Gigabit Wired connections
Bottlenecking at the switch is a non-issue with the XAVB5004 thanks to full Gigabit connectivity.

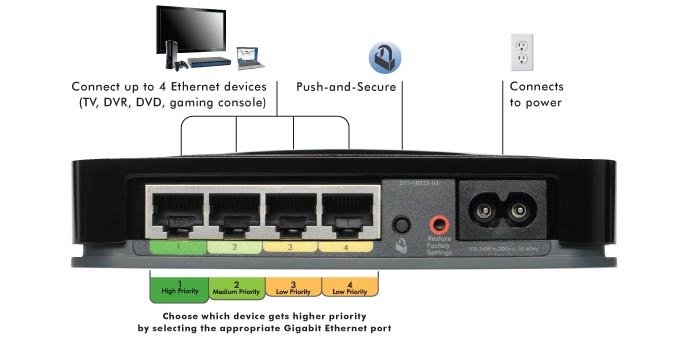

Port Based Quality of Service for Gaming
The Netgear XAVB5004 features port based QOS. This simply means that traffic from the high priority port receives higher priority than other ports. Useful? Yes - it allows users running latency demanding applications - such as gaming to not get bogged down by other users browsing or media streaming habits. Happy users all round.
UNIVERSAL INTERNET ADAPTER FOR HOME ENTERTAINMENT - 3D
- Connect Internet-ready TVs, Blu-ray players or game consoles to your home's broadband Internet
- 3DHD reliably stream multiple HD videos in full 1080p, perfect for 3D
Overview
Specifications
Package Contents
- One (1) 4-port Powerline AV 500 Adapter (XAV5004)
- One (1) Powerline AV 500 Adapter (XAV5001)
- One (1) 2 m (6.5 ft) AC power cord, localized to country of sale
- Two (2) 2 m (6.5 ft) RJ45 Ethernet cables
Warranty
Physical Specifications
- 4-Port Powerline AV 500 Adapter (XAV5004)
- Dimensions: 137 x 102 x 28 mm (5.40 x 4.01 x 1.10 in)
- Weight: 0.218 kg (0.48 lb)
- Powerline AV 500 Adapter (XAV5001)
- Dimensions: 86 x 67 x 40 mm (3.38 x 2.63 x 1.57 in)
- Weight: 0.13 kg (0.28 lb)
System Requirements
- To enable encryption (via software): Microsoft , Windows 7 , Vista ,XP or Mac OS X
Performance
Network Ports
- XAV5004: Four (4) 10/100/1000 Mbps ports
- XAV5001: One (1) 10/100/1000 Mbps port
Typical Coverage
- Up to 5000 square foot home
Compliance
NETGEAR Green Features
- Automatically powers down when not connected or not in use
- Disable LEDs to help save energy
- Packaging manufactured with at least 95% recyclable materials
 |
80% Recycled Packaging |
 |
RoHS |
 |
WEEE |
 |
Powerline Idle |
 |
Port Auto Power Down |
