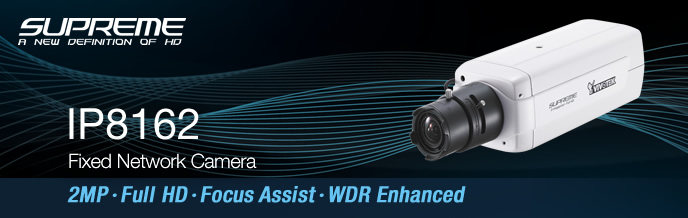

Vivotek IP8162 Fixed Network Camera - 2MP CMOS Sensor, Full HD 1080p, Up to 30fps, Removable IR-cut Filter for Day & Night Function, H.264 Real-time - White

IMG 1 of 1
No Longer Available
Part Number:
172053
(?) Brand:
Vivotek
Manuf No:
IP8162
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
Need a webcam to work from home because of COVID-19?
Due to flight restrictions and lack of stock there are very limited options
Please check the webcams available for fast dispatch.
All stock codes associated to this product
IP8162
ip8162

2MP Full HD Focus Assist WDR Enhanced Fixed Network Camera IP8162

Overview

VIVOTEK IP8162 is part of the SUPREME series product line offering 2-megapixel resolution with superb image quality. The camera can capture a much more comprehensive area than a standard VGA camera, significantly reducing the number of cameras required. It is especially suitable for monitoring wide open indoor spaces such as building entrances, airports, or applications requiring accurate identification, as well as outdoor applications when placed inside an enclosure.

The IP8162 employs many advanced features to allow users to fully enjoy the high definition video. With high performance H.264/MPEG-4/MJPEG compression technology and Gigabit Ethernet transmission, the IP8162 offers extra smooth video quality with resolution up to 1080p full HD @ 30fps. The Video Cropping feature allows a user to only transfer user-defined thumbnails for viewing instead of an entire scene so as to optimize bandwidth and enhance storage efficiency. The ePTZ function enables users to zoom in and focus on a region of interest (ROI) in the camera view with only a few clicks.

As with all VIVOTEK true day/night cameras, the IP8162 features a removable IR-cut filter, maintaining clear images 24 hours a day. The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case of network disconnection. Additionally, the IP8162 can connected directly to an analog monitor with an RCA connector, providing integrators with more flexibility and hassle-free installation for a variety of applications.

Data security with the IP8162 is further enhanced with HTTPS encryption and 802.1X authentication. Together with PoE, QoS, time-shift streaming, and the included 32-CH recording software, the IP8162 is indisputably the top choice for reliable and high performance megapixel surveillance.

Features

  • 2-megapixel CMOS Sensor
  • 3.1 ~ 8 mm Vari-focal, Auto-iris Lens
  • Up to 30 fps @ 1080p Full HD
  • Removable IR-cut Filter for Day & Night Function
  • Built-in Focus Assist Button for Precise Focus Adjustment
  • Supports WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • Simultaneous Multiple Streams
  • Video Cropping for Bandwidth Saving
  • ePTZ for Data Efficiency
  • Activity Adaptive Streaming for Dynamic Frame Rate Control
  • Built-in SD/SDHC Card Slot for On-board Storage
  • Built-in 802.3af Compliant PoE

Specifications

System CPU: TI DM368 SoC
Flash: 128MB
RAM: 256MB
Embedded OS: Linux 2.6
Lens f=3.1 ~ 8 mm
F 1.2
auto iris
CS-mount
Vari-focal
Removable IR-cut filter for day & night function
Angle of View 105.4 ~ 42.2 (horizontal)
57.9 ~ 23.8 (vertical)
123.1 ~ 48.3 (diagonal)
Shutter Time 1/5 ~ 1/32000 sec
Image sensor 1/2.7" CMOS in 1920x1080 Resolution
Minimum Illumination 0.06 Lux / F1.2 ( typical )
in 0.001 Lux / F1.2 ( B/W )
Video Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports video cropping for bandwidth efficiency
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30 fps @ 1280 x 720, Up to 30 fps @ 1920 x 1080
MPEG-4: Up to 30 fps @ 1280 x 720, Up to 27 fps @ 1920 x 1080
MJPEG: Up to 30 fps @ 1280 x 720, Up to 30 fps @ 1920 x 1080
BNC connector for video output
NTSC/PAL video output switch
Focus Assist
Image Settings Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGCAWBAES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
WDR enhanced
Audio Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, -Law or A-Law
Interface:
Built-in microphone
External microphone input
Audio output

External/Internal microphone switch
Supports two-way audio
Supports audio mute
Networking 10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm and Event Management Triple-window video motion detection
1 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper Detection
On-board Storage SD/SDHC card slot
Stores snapshots and video clips
Security Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
Users 10 clients on-line monitoring at the same time
Dimensions Depth: 154mm
Width: 72mm
Height: 62mm
LED Indicator System power and status indicator
System activity and network link indicator
Power 12V DC
24V AC
Power consumption: Max. 4.92 W
802.3af compliant Power-over-Ethernet (Class 3)
Approvals CEC-TickFCCLVDVCCI
Operating Environments Temperature: -10 ~ 50 C (14 ~ 122 F )
Humidity: 90%
Viewing System Requirements OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above
Installation, Management, and Maintenance RS-485 interface for scanners, pan/tilts
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
Applications SDK available for application development and system integration
Warranty 36 months
