All stock codes associated to this product
LH46CBSLBC/XY, 460UTNB, 460UTN-B
460UTN-B
Samsung LCD
Samsung 460UTN-B LCD Display
- Enhanced connectivity without extra costs.
- Reliable, durable and dust-resistant.
- Easy control goes the distance.
- Set a schedule thats always on time.
The Samsung UT series 460UTn-B super narrow bezel display designed to suit various demands. 460UTn-B feature bezels of just 2.4mm on the bottom and right, and 4.3mm on the top and left, for a total of 6.7mm bezel to bezel enabling video walls are virtually seamless. Simple video matrix installation is possible with embedded video wall feature, supporting max. 10 x 10. The Samsung ID stand (MID462-UT2) enables multiple UT series LFDs to be simply stacked just like bricks. The specialized W / M accessary WMN460UTD enables LFDs to be added to and removed from the video matrix already set. White Balance adjustment option enable ensure correctly colored video wall as a whole. The built-in computer and MagicInfo™ software make it easy to control content over LAN / WAN. Up to 100 LFDs are able to connected as Digital Loop out of HDMI, DVI and Display port with equal picture quality of full HD quarranteed. The RJ45 LAN MDC feature offer the powerful remote controlling with the present RS232C daisy chain MDC. Small sensor kit (CY-EBIS) can be put on the edge of product to sense ambient brightness and recieve remote controller signal.

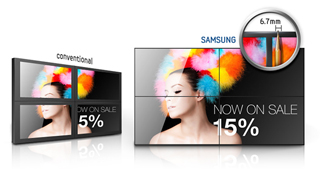

Super narrow bezel, seamlessly connected screens.
Keep the focus on your images, not on the frame. This LFD is incredibly slim and features a 6.7mm bezel to bezel width. Create the ultimate video wall with screens that are seamlessly connected and picture perfect. This super-narrow monitor makes it easy to make a big impact wherever it’s displayed.

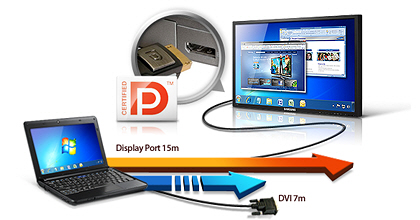

Enhanced connectivity without extra costs.
Create a professional digital display without having to purchase any extraslike a distributor or external equipment. Samsung makes it easy with a display port that delivers enhanced connectivity and an improved display interface. With a simple adapter, you can connect your PC, monitor or TV using an HDMI or DVI cable thats more than twice as long as standard cables. Discover an easy, cost-effective way to create a powerful display.

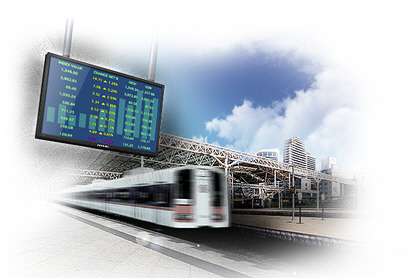

Reliable, durable and dust-resistant.
Introducing a monitor that was built to stand the test of timeand dust. This Samsung LFD is durable and dust-resistant. Corner-sealing design, double-layer structure, and screw and user hole sealing add to its ruggedness. Make sure dirt and dust dont stand in the way of getting your message out.

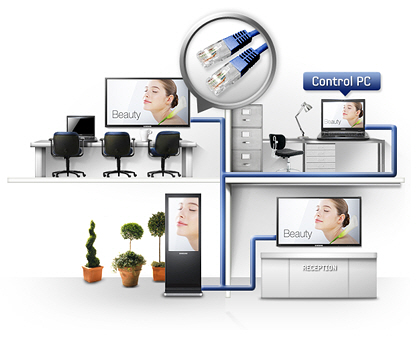

Easy control goes the distance.
With content constantly changing, you need a reliable software solution that lets you communicate with remote displays in a cost-effective, time-efficient manner. Samsung LFDs feature an upgraded Multi Display Control solution that lets you control a large number of monitors through their embedded RS232 and RJ45 interfaces. Easy and intuitive to use, you can control monitors over short and long distances.

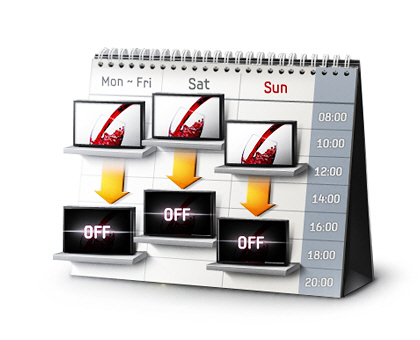

Set a schedule thats always on time.
Keep your monitor running efficiently at all times. This Samsung LFD boasts a smart scheduling feature. The automatic power on / off function allows you to designate time, day, volume, input source and holiday dates. Theres even a convenient on-screen display setting with up to 3 schedules including day and time.
Brighter lights, better picture.
With an intensely illuminated DID panel your message is always in the spotlight. Its high brightness and contrast level make the screen clear and readable in public. In fact, on average its 1.5 times as bright as TV screens. Plus with a low operating temperature this Samsung LFD will be completely reliable for years to come.

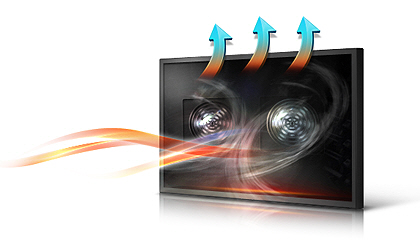

A cool way to ensure longevity.
Enjoy continuous, reliable operation thanks to a built-in fan control. Housed inside of the LFD, the fan guarantees you can count on it for years to come without worrying about it overheating. You can even control the fan with an easy-to-use on screen display.

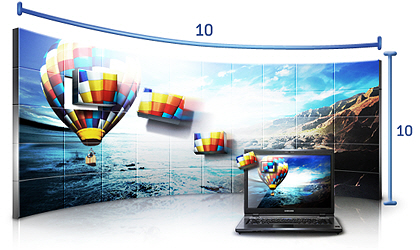

A video wall that lives up to your standards
Create the ultimate video wall with Samsung LFDs that cater to your needs.
And because this LFD has an embedded video matrix processor, it supports 1 x 1 to 10 x 10 wall formats, allowing you to enjoy total convenience. Best yet, since they need no additional support, the possibilities are almost endless.

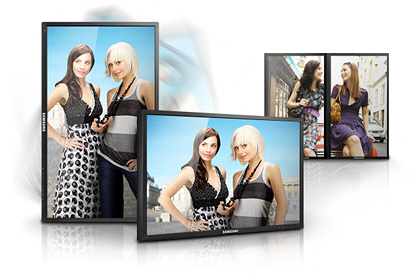

Choose the right view, landscape or portrait.
This Samsung LFD gives you the flexibility to display your image vertically or horizontallywhatever the situation calls for. With a pivot function that rotates the screen 90 degrees and the freedom to display presentations in portrait mode or advertisements in landscape mode, this makes for one versatile monitor.

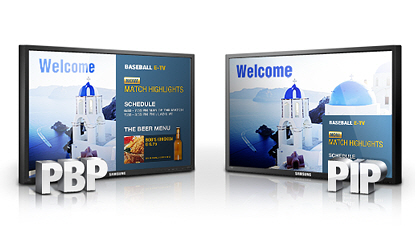

Twice the information, double the impact.
Whether your presentation requires a picture-in-picture configuration or a picture-by-picture arrangement, this Samsung LFD makes it possible. When one image just isnt enough, two video signals can be viewed simultaneously for maximum impact.

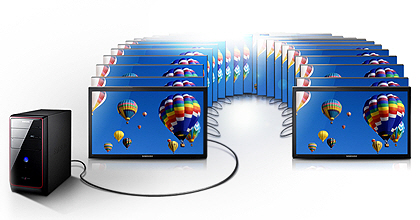

Stay in the loop with DVI-out.
Enjoy superior picture quality with a DVI-out interface that lets you share content between multiple LFDs thanks to an easier-to-connect video matrix. LFDs used to have to be connected to the PC individually, but digital loop out allows you to connect them without connecting to a PC. Better yet, the digital loop out produces a single image without any loss of quality, and theres no need for a separate video signal distributor. Its easy to install and the most cost-effective way to connect multiple displays.

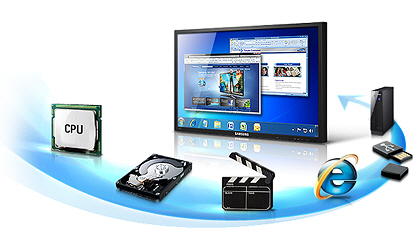

No separate PCs. No jumbled wires.
Control multiple monitors without having to install and run wires to a separate PC. This Samsung LFD features a powerful built-in PC. Its optional multi-network solutionpurchased separatelyis easy to configure through a LAN, easy to manage through server-side software, and cost-effective to run. And with optimized CPU, RAM and storage, youll have everything you need to get your message across effectively.

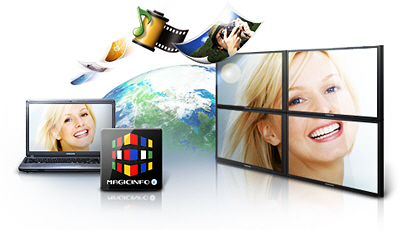

An innovative solution with easy access.
Samsungs network management software features two types: a Wan / Lan-based for local access and a web-based software accessible anywhere. MagicInfo lets you access your server and LFDs everywhere in the world. This optimized Samsung software solution lets you manage multiple Samsung LFDs remotely. Best yet, uploading, creating, monitoring and controlling content is more convenient and less time-consuming.
Specifications
|
Features and specifications are subject to change without prior notification.
|
| Panel |
Diagonal Size |
46" |
| Type |
S-PVA (DID) |
| Resolution |
1,366 x 768 |
| Pixel Pitch(mm) |
0.7455 (H) x 0.7455 (V) |
| Active Display Area(mm) |
1,018.353 (H) x 572.544 (V) |
| Brightness(Typ.) |
450cd/m |
| Contrast Ratio |
4,500:1 |
| Viewing Angle(H/V) |
178/178 |
| Response Time(G-to-G) |
8ms |
| Display Colors |
8 bit - 16.7M |
| Color Gamut |
72% |
| Display |
Dynamic C/R |
10,000:1 |
| H-Scanning Frequency |
30kHz - 81kHz |
| V-Scanning Frequency |
56Hz - 85Hz |
| Maximum Pixel Frequency |
148.5MHz |
| Connectivity |
Input |
RGB |
Analog D-SUB, DVI-D, Display Port |
| Video |
Component, CVBS, HDMI1, HDMI2 |
| Audio |
RCA (L / R), Stereo mini Jack |
| Output |
RGB |
DVI-D (Loop-out) |
| Audio |
Stereo mini Jack |
| Power Out |
5V (for SBB) |
| External Control |
RS232C (in / out), RJ45 |
| External Sensor |
Stero mini jack (IR in / out), mini USB (Ext. BR / IR sensor) |
| Power |
Type |
Internal |
| Power Supply |
AC 100 - 240V - (+/- 10%), 50/60Hz |
| Power Consumption |
On Mode |
270 watts (max) / 240 watts (typ) |
| Sleep Mode |
less than 5 watts |
| Off Mode |
less than 5 watts |
| Mechanical Spec |
Dimension (mm) |
Set |
1,025.7 x 579.8 x 130.0 |
| Package |
1,148.0 x 705.0 x 330.0 |
| Weight (kg) |
Set |
20.8 |
| Package |
26.1 |
| VESA Mount |
600 x 400mm |
| Stand Type |
Foot Stand (optional) |
| Media Player Option Type |
Internal |
| Operation |
Operating Temperature |
10C - 40C |
| Humidity |
10 - 80% |
| Features |
Key |
Super Narrow Bezel (3.3mm) |
| Special |
Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C / RJ45 MDC, Plug and Play (DDC2B), PIP / PBP, Video Wall (10 x 10), Pivot Display, Button Lock, Digital Daisy Chain, Smart Scheduling, Smart F / W update, MagicInfo S / W, Windows Embedded Standard 2009 |
| Certification |
Safety |
UL (USA) : UL 60950-1CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB 4943-2001PSB (Singapore) : IEC60950-1GOST (Russia) : IEC60950-1, EN55022SIQ (Slovenia) : IEC60950-1, EN55022PCBC (Poland) : IEC60590-1, EN55022NOM (Mexico) : NOM-019-SCFI-1993IRAM (Argentina) : IEC60950-1SASO (Saudi Arabia) : IEC60950-1 |
| EMC |
FCC (USA) FCC Part 15, Subpart B class ACE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22) KCC (Korea) : KN22, KN24BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS / NZS3548 (CISPR22) CCC (China) : GB 9254-2008, GB 17625.1-2003 |
| Accessories |
Included |
Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries |
| Optional |
Stand |
STN-L3255D |
| Mount |
WMN5770D |
| Specialty |
CML500D (ceiling mount), STN-520WE (welcome Board) MID46-UT2, MID462K, MID462DS (SamsungID) CY-EBIS (ext.sensor) |
| Media Player |
CPU |
Athlon X2 Dual-Core 235e (2.7GHz) |
| N/B |
AMD RS780E |
| S/B |
AMD SB710 |
| GPU |
AMD RS780E (IGP) |
| FDM/HDD |
HDD 40GB |
| Memory |
DDR3 1GB |
| Ethernet |
Marvell 88E8055 Gigabit LAN |
| Connectivity |
USB |
3EA |
| Output |
D-SUB (RGB OUT), HDMI (MagicInfo OUT) |
| Others |
LAN RJ45 |
