Epson EB-G5600NL
Installation Multimedia Projectors
Supreme Flexibility and Superior Image Quality in XGA Resolution
Overview
Feature rich and offering a choice of five lenses (each sold separately) ranging from Rear Projection through Long Throw, the Epson EB-5600NL is perfect for custom installations. Producing an impressive 4,500 lumens Light Output and 4,500 lumens Colour Light Output in XGA resolution the EB-G5600NL further enhances on Epsons reputation for high performance projectors for high end installation environments.
KEY FEATURES:
- C2Fine Technology Featuring advanced vertical alignment technology, provides high contrast for deeper blacks and vivid images
- DICOM Simulation Mode Specialised imaging uses standardised greyscale to reproduce medical images such as x-rays for medical training and education
- Multi-PC Projection Allows up to four computers to simultaneously project via the network with a four way split screen
- Crestron RoomView Compatibility Extends ROI for users who have already invested in Crestron RoomView to control and manage Epson projectors over a network, as well as other compatible projectors
- Monitor and Control Network monitoring, maintenance scheduling and email alerts via LAN
- Broad Connectivity HDMI, VGA x2, Audio in x2, Hardwire remote, 5 BNC, Monitor out, RS-232 and optional wireless (model dependant)
FEATURES AND BENEFITS:
Amazing Image Quality
In the new G-Series, Epsons engineers have built upon Epsons World leading Home Cinema heritage to deliver unparalleled image quality. This is thanks to Epsons famous C2Fine LCD panels. Featuring advanced vertical alignment technology, C2Fine panels provide high contrast for deeper blacks and vivid images. And because theyre 3LCD, you know that colour reproduction is second to none, and your image will be crisp and vibrant.
Multi PC Projection
Multi PC projection enables users to connect and display up to four PCs simultaneously via the network with a four-way split screen. An additional 12 PCs can connect in standby. Which PCs are displayed at any one time is easily controlled with simple drag and drop functionality. With Multi PC projection, workgroup tele-meetings with remote members can now deliver collaboration results like never before!
It’s also possible to display content from two inputs simultaneously without the need for a network. Watch video via HDMI and view a presentation via VGA for an instant video conference.
Monitor and Control via the Network
Monitoring and controlling a G-Series projector is possible over a network, enabling the network manager to obtain projector information, monitor projector status, and control functions such as power on and off, change sources and even update firmware from a remote location. The Epson G-Series is also compatible with Crestron RoomView, meaning complete integration is possible if you have already invested in this infrastructure.
DICOM Simulation Mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing, and transmitting information in medical imaging, which includes a file format definition and a network communications protocol. The DICOM simulation mode in the G-Series can reproduce images with gray level very close to DICOM Part 14 (Grayscale Standard Display Function). This mode is ideal for viewing grayscale medical images such as X-ray pictures for training and education in the medical institutions.

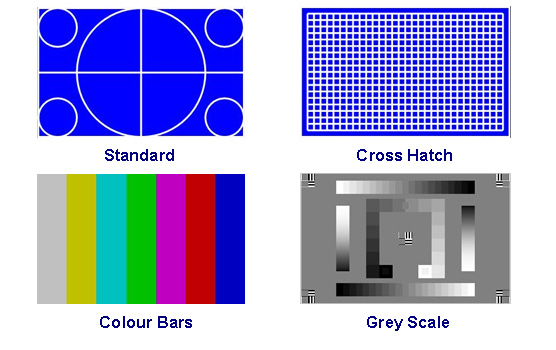

New Test Patterns for Precise Installation
With the new G-Series range there is no need to connect an image source when setting up the image parameters thanks to the included test patterns.
New Epson Designed and Manufactured Mount
Designed and manufactured by Epson, the new ELP-MB22 is made to Epsons high quality standards, so you know it will stand up to the task. Also available is a choice of two suspension adaptors for installations with high ceilings. Measuring 450mm or 700mm, these adaptors deliver versatility for your installation.
Connectivity

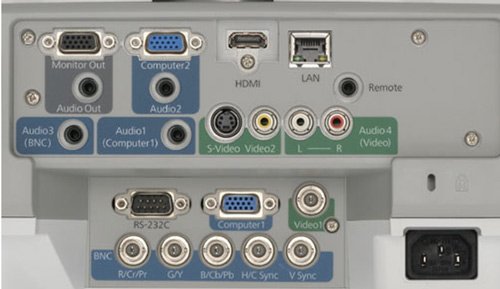

EB-G5600NL Rear Panel
Specifications
| PRODUCT TYPE |
Portable Multimedia Projector |
| PRODUCT NAME |
Epson EB-G5600NL |
| PRODUCT CODE |
V11H352953 |
| PROJECTION SYSTEM |
RGB Liquid Crystal Shutter Projection System |
| PROJECTION METHOD |
Front / Rear / Ceiling Mount |
| SPECIFICATION OF MAIN PARTS |
| LCD |
Size |
0.8 inches with MLA |
| |
Driving method |
Poly-Silicon TFT Active Matrix |
| |
Pixel number |
786,432 pixels (1024 x 768) x 3 |
| |
Native resolution |
XGA |
| |
Aspect ratio |
4:3 |
| |
Pixel arrangement |
Cross Stripe |
| |
Refresh Rate |
50Hz-60Hz |
| PROJECTION LENS |
Type |
Manual: zoom / focus |
| (Specification for ELPLS05 standard lens. Sold separately.) |
F-number |
1.65 - 2.55 |
| |
Focus length |
21.28 - 37.94mm |
| |
Zoom ratio |
1:1.8 |
| PROJECTION LAMP |
Type |
E-TORL 275 W UHE |
| |
Optical System |
Dichroic Mirror Separation & Prism Combine Method |
| SCREEN SIZE (PROJECTED DISTANCE) |
30 to 300 inch [0.77m to 8.11m] (Zoom: Wide),
30 to 300 inch [1.42m to 14.54m] (Zoom: Tele)
100" screen 2.67m 4.82m |
| LENS SHIFT RANGE |
| |
MANUAL |
Vertical +/-50% max
(upward and downward) |
| |
|
Horizontal +/-10% max
(left and right) |
| BRIGHTNESS |
| |
High Brightness Mode |
4,500 Lumens Light Output
4,500 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide) |
| |
Low Brightness Mode |
3,600 Lumens Light Output
3,600 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide) |
| CONTRAST |
1000:1 |
| BRIGHTNESS UNIFORMITY |
87% |
| COLOUR REPRODUCTIVITY |
Full colour (16.77 million colours) |
| SOUND OUTPUT (Internal speaker) |
7W monaural |
| FUNCTION |
Pointer, User Logo, A/V mute, Freeze, E Zoom, Test pattern |
| EFFECTIVE SCANNING FREQUENCY RANGE (Analog) |
| PIXEL CLOCK |
13.5MHz to 162MHz ( up to UXGA 60Hz ) |
| HORIZONTAL |
15KHz to 99KHz |
| VERTICAL |
50Hz to 120Hz |
| EFFECTIVE SCANNING FREQUENCY RANGE (Digital) |
| PIXEL CLOCK |
13.5MHz to 162MHz ( up to UXGA 60Hz ) |
| HORIZONTAL |
15KHz to 75KHz |
| VERTICAL |
24Hz to 60Hz |
| ADJUSTMENT FUNCTION |
| PROJECTOR / REMOTE CONTROL |
Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal |
| FOOT ADJUSTER |
Front-centre / Rear side |
| TILT ANGLE |
-2.5 to 10 degrees |
| KEYSTONE CORRECTION |
Vertical: -40 to +40 degrees (Zoom: Tele)
Horizontal: -20 to +20 degrees (Zoom: Tele) |
|
QUICK CORNER
|
Yes |
| SOURCE SEARCH |
Yes |
| AUTO DETECTION OF RGB YCbCr |
Yes |
| MULTI SCREEN COLOUR ADJUSTMENT |
Yes |
| OPERATION PANEL PROTECTION |
Yes |
| PASSWORD PROTECTED |
Yes |
| HIGH ALTITUDE MODE |
Yes |
| COLOUR MODE |
PC: Photo, Presentation, Theatre, Dynamic , sRGB, DICOM SIM, Customised
Video: Sports, Presentation, Theatre, Dynamic , sRGB, Customised |
| ANALOGUE RGB I/O |
| DISPLAY PERFORMANCE |
Native |
1280 x 800 pixels |
| INPUT SIGNAL |
Signal type |
Separate signal |
| |
Video signal |
Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
| |
Sync. signal |
Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) |
| |
Audio signal |
500mVrms / 47K-ohm |
| VIDEO INPUT TERMINAL |
Video |
D-sub 15pin x 2 Blue-moulding |
| |
Audio |
Stereo mini-jack x 2 |
| OUTPUT SIGNAL |
Signal type |
Separate signal |
| |
Video signal |
Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
| |
Sync. signal |
Separate (positive & negative,TTL) /
Composite (positive & negative,TTL) /
Sync. on green (negative 0.2-0.4 Vp-p) |
| OUTPUT TERMINAL |
Video |
D-sub 15pin x 1 Black molding |
| |
Audio |
Stereo mini-jack x 1 |
| VIDEO I/O |
| DISPLAY PERFORMANCE |
|
NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern) |
| INPUT SIGNAL |
Video standard |
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM |
| |
Video signal |
Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
| |
Audio signal |
500mVrms / 47Kohm |
| INPUT TERMINAL |
Video |
Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: Mini D-sub 15pin Blue-moulding x 2
(in common with Analog RGB connector)
Video-RGB: Mini D-sub 15pin 2 x Blue-moulding
(in common with Analog RGB connector) |
| |
Audio |
RCA (White/Red) x 1pair (for Composite Video and S-Video) |
| HDMI/th> |
| Input signal |
Video standard |
480i/576i/480p/576p/720p/1080i/1080p |
| |
Video signal |
TMDS ( signal for HDMI ) |
| Input terminal |
Audio signal |
Linear PCM |
| |
Video |
HDMI x 1 (HDCP) |
| CONTROL I/O |
| Serial I/O |
I/O terminal |
D-sub 9 pin x 1 |
| |
I/O speed |
RS-232C |
| Remote control input |
I/O Terminal |
Stereo mini jack x 1 |
| |
I/O signal |
Epson Format |
| NETWORK I/O |
| |
Wired LAN |
RJ45 x 1 |
| OPERATING TEMPERATURE |
0C to 40C (32F to 104F), (20% - 80% Humidity unfrozen)
Thermal shutdown > 45 degree C |
| |
0C to 35C (32F to 95F), ( over 1500m with high altitude mode, High brightness) |
| OPERATING ALTITUDE |
0m to 3000m < 0ft to 9843ft >
(over 1500m / 4,921ft with high altitude mode) |
| DIRECT POWER ON |
Yes |
| DIRECT POWER OFF |
Yes |
| COOL-DOWN PERIOD |
Instant off |
| THEFT PROOF |
| |
Security Cable Hole |
Yes |
| |
Kensington Lock |
Yes |
| POWER SUPPLY VOLTAGE |
100-240V AC10% 50/60Hz |
| POWER CONSUMPTION |
| |
lamp On |
311W |
| |
Stand by ( network on ) |
11W |
| |
Stand by ( network off ) |
0.47W |
| DIMENSION |
| EXCLUDE FEET |
311.5mm(D) x 470mm(W) x 135mm(H) |
| MAXIMUM DIMENSION |
311.5mm(D) x 470mm(W) x 151.5mm(H) |
| WEIGHT |
Approx. 6.7Kg |
| FAN NOISE |
|
| HIGH BRIGHTNESS MODE |
33dB |
| LOW BRIGHTNESS MODE |
28dB |
| ACCESSORIES |
| POWER CABLE |
3m |
| COMPUTER CABLE |
1.8m, D-sub 15pin (Male - Male) |
| REMOTE CONTROL |
Included |
| BATTERY |
Alkaline AA x 2 |
| USER MANUAL SET |
Included (CD-ROM) |
| PROJECTOR SOFTWARE |
Included (CD-ROM) |
| PASSWORD PROTECT STICKER |
Included |
| EASY MP |
| Function |
Projector control
and projector
management via
networ |
Email notification
SNMP
Extron IP Link
PJ Link
AMX Device Discovery
Web Control |
* Software compatible with MS Vista
# EMP NS Connection, EMP Monitor or EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit. |
| WARRANTY |
| STANDARD WARRANTY |
2 years*
*excluding lamp |
| * For more information visit Epson Projector Warranty |
