All stock codes associated to this product
SSTTJ08BEW, SST-TJ08B-EW
TJ08-E
In 2006, SilverStone launched the Temjin TJ08, an impressive micro-ATX tower case with then unheard of dual 120mm fan configuration. It helped pioneered the idea of big tower cooling performance in small packages. Five years later, improved technology and design has enabled SilverStone engineers to create another pioneering small tower case in the TJ08 Evolution (TJ08-E). To improve cooling performance, a class leading Air Penetrator 180mm fan was installed behind the front panel to create virtual airflow tunnel with positive air pressure, which also improves quietness and dust prevention.
Standard enthusiast features retained or improved include removable motherboard tray and top panel, CPU back plate cutout, all black painted interior, removable filters for all intake vents, and beautifully finished aluminum front panel.
Features unique to the TJ08-E are its ability to accommodate long cables from high-end power supply and storage room for one 2.5 hard drive and up to five 3.5 hard drives. If you are looking for a classic, cleanly styled premium micro-ATX tower with the latest chassis construction technology to house top-of-the-line components, the TJ08-E is it.
Special Features
- Includes one 180mm Air Penetrator fan for positive pressure cooling
- Removable motherboard tray and top panel
- Quick access filters to prevent dust buildup
- Convenient wire and cable routing pathways
- Adjustable holder for large CPU coolers
- Motherboard back plate opening behind CPU area for quick cooler assembly
- Impressive storage capacity up to five 3.5" hard drives and one 2.5" drive
- Stylish all aluminum front panel with USB 3.0 front port access.
- Magnetic fan filter for power supply intake area
- Independent power supply compartment.
- 180mm Air Penetrator AP181 intake fan included with speed switch.
- Removable motherboard tray Micro-ATX motherboards.
- Easy-access front intake fan filter integrated in front panel.
- Rear 120mm fan slot.
- Removable 3.5" hard drive cage for up to four drives.
- Oversized motherboard tray cut-out for CPU cooler backplates.
- Dual purpose 3.5" drive bay for external device or internal hard drive.
- Innovative, adjustable CPU cooler support.
Specifications
|
Model No.
|
SST-TJ08-E(black) |
| -- |
| -- |
| -- |
|
Material
|
Aluminum front panel, steel body |
|
Motherboard
|
Micro ATX, Mini-DTX, Mini-ITX |
|
Multimedia
|
-- |
|
Drive Bay
|
External |
5.25" x 2 |
| 3.5" x 1 (compatible with one 3.5 hard dirve) |
| Internal |
3.5" x 4 , 2.5 x1 |
|
Cooling System
|
Front |
1 x 180mm AP181 intake fan, 700/1200rpm,
18/34dBA (backwards compatible with 140mm fan) |
| Rear |
1 x 120mm fan slot (option) |
| Side |
-- |
| Top |
-- |
| Bottom |
-- |
| Internal |
-- |
|
Expansion Slot
|
4 |
|
Front I/O Port
|
USB3.0 x 2 (backwards compatible with USB 2.0)
Audio x 1
MIC x 1 |
|
Power Supply
|
1 x optional standard PS2 (ATX) up to 160mm |
|
Operating system support
|
-- |
|
Expansion Card
|
Compatible up to 13.25 long* |
|
Limitation of CPU cooler
|
165mm |
|
Limitation of PSU
|
160mm (recommended), 180mm (maximum) |
|
Net Weight
|
5.3 kg |
|

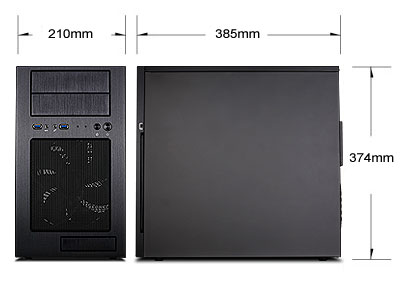

Dimension
|
210mm(W) x 374mm(H) x 385mm(D) |
|
Extra
|
-- |
