Netgear JGS524E ProSafe Plus Gigabit Switch - 24-Port 10/100/1000, Rackmountable

IMG 1 of 1
No Longer Available
Part Number:
174186
(?) Brand:
Netgear Web Site
Manuf No:
JGS524E
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
JGS524E, JGS524E100AJS, JGS524E-100AJS, 1687563, JGS524E , 606449041736, 606449075380

Easy cable options without leaving this page

Cat 6 Cables

ProSafe® Plus Switch, 24 Ports, Gigabit Ethernet

JGS524E

  • Configurable with simple setup
  • Prioritize Voice / Video
  • Monitoring of network traffic
  • Creating Network Groups
  • Cable Test
  • Green Ethernet for energy savings

Overview

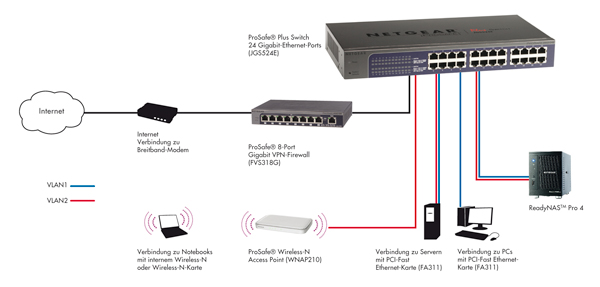

JGS524E Product Image Network Diagram

System Requirements System Requirements

  • Category 5 Ethernet cable
  • Network card for each PC
  • Microsoft  Windows 7, XP or Vista , running for Configuration Utility

Technical Specifications

 Standards Compliance

  • IEEE  802.3z 1000BASE-T Gigabit Ethernet
  • IEEE 802.3i 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • Compatible with all major network software

Network Ports

  • Twenty-four (24) 10/100/1000 Mbps Ethernet RJ-45 ports


AC Power







  • 100-240V, 50-60Hz, 0.9A max, localized to country of sale


Physical Specifications

  • Dimensions (hxwxd): 43 x 330 x 173 mm (1.7 x 13 x 6.8 in) Weight: 1.43 kg (3.15 lb)

Environmental Specifications

  • Operating temperature: 32 to 104 F (0 to 40 C)
  • Operating humidity: 90% maximum relative humidity, non-condensing

 Electromagnetic Compliance

  • CE mark (commercial), FCC Part 15 Class A, EN 55022 (CISPR 22) Class A, VCCI Class A, C-Tick

 Safety Agency Approvals

  • UL/cUL 60950, CB, CCC

 Package Contents

  • ProSafe  Plus Switch 24-port Gigabit Ethernet Switch (JGS524E)
  •  Rack-mount kit
  •  Power cord
  • Quick Install Guide
  • Installation CD with Configuration Utility software


Warranty




  • NETGEAR Lifetime Warranty

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Netgear) web site.
