PCE-N15

300Mbps 802.11b/g/n Wireless PCI-E Adapter

  • WPS(Wi-Fi Protected Setup) button - Quickly set up a secure wireless connection
  • Software AP - Connect your notebook and game consoles to the Internet
  • Supports WEP, WPA-PSK, and WPA2-PSK methods for enhanced security
  • WPS(Wi-Fi Protected Setup) button

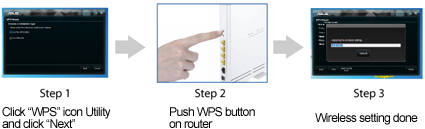

    For quickly setting up a secure wireless connection. Press the Hardware WPS button on PCE-N15 about 3 seconds, then press the WPS button on router as well. Either you can choose to use software WPS, enabling the WPS utility in the WPS Wizard interface. And finish the setup with 3 steps

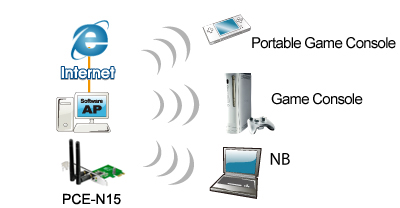

    Software AP

    Software AP mode allows the WLAN card to act as a virtual access point. The computer needs to be connected to a wired network using an Ethernet connection in order to provide network access to WLAN client.

    Specifications

    Network Standard IEEE 802.11 b/g/n
    Interface PCI Express
    Antenna 2 x R SMA Antenna
    Operating Frequency 2.4GHz
    Operation Channel 11 for N. America, 14 Japan, 13 Europe (ETSI)
    Data Rate 802.11 b/g/n : downlink up to 300Mbps, uplink up to 300Mbps(20/40MHz)
    Output Power b mode : 15 ~19 dBm
    g mode : 13 ~17 dBm
    n mode : 12 ~16 dBm
    Modulation CCK, DQPSK, DBPSK, OFDM
    Management Software AP
    Utilities Wireless setting, Site survey, WPS Wizard
    Security 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPS support
    Certificates CE, FCC, C-Tick, IC
    Dimensions 120.5 x 21.6 x 22 mm (WxDxH)
    Weight 62.6 g (Device Only)
    Environmental Operating Temperature: 0 C to 45 C (32 F to 104 F)
    Storage Temperature: -20 to 65 C (-4 F to 149 F)
    Operating Humidity: 5 % to 95 % (Non-condensing)
    Storage Humidity: 5 % to 95 % (Non-condensing)
    OS Support Windows 7 32bit/64bit
    Windows Vista 32bit/64bit
    Windows XP 32bit/64bit
    Linux Kernel 2.6 (Support Ubuntu only)
    Package Content Support CD
    Warranty card
    Low Profile Bracket
    Dipole Antenna x 2

    No additional files, specification sheets, guides or documentation found for product.

    Warranty: 2 Years

    Full manufacturers warranty details are available at the manufacturers (ASUS) web site.
