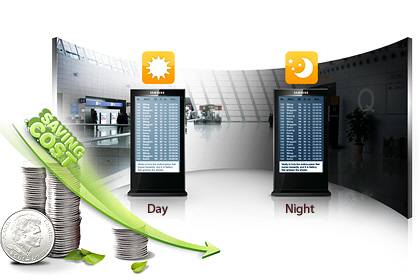

Stop worrying about the lighting conditions affecting your display. This Samsung LFD adjusts its brightness levels as ambient light changes so your images are always crystal-clear. And while it compensates for low-light and high-light environments, youll save energy and stay eco-friendly.
Reliable, durable and dust-resistant.
Introducing a monitor that was built to stand the test of timeand dust. This Samsung LFD is durable and dust-resistant. Corner-sealing design, double-layer structure, and screw and user hole sealing add to its ruggedness. Make sure dirt and dust dont stand in the way of getting your message out.

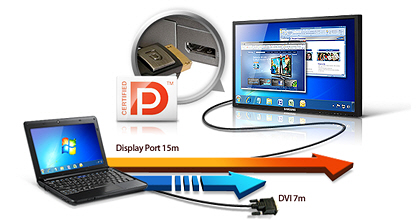

Enhanced connectivity without extra costs.
Create a professional digital display without having to purchase any extraslike a distributor or external equipment. Samsung makes it easy with a display port that delivers enhanced connectivity and an improved display interface. With a simple adapter, you can connect your PC, monitor or TV using an HDMI or DVI cable thats more than twice as long as standard cables. Discover an easy, cost-effective way to create a powerful display.

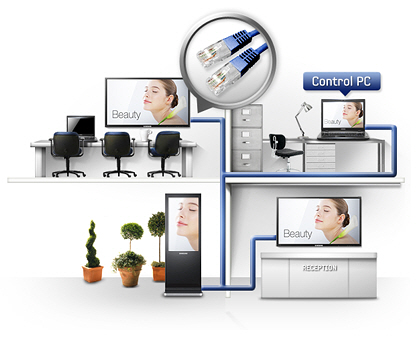

Easy control goes the distance.
With content constantly changing, you need a reliable software solution that lets you communicate with remote displays in a cost-effective, time-efficient manner. Samsung LFDs feature an upgraded Multi Display Control solution that lets you control a large number of monitors through their embedded RS232 and RJ45 interfaces. Easy and intuitive to use, you can control monitors over short and long distances.

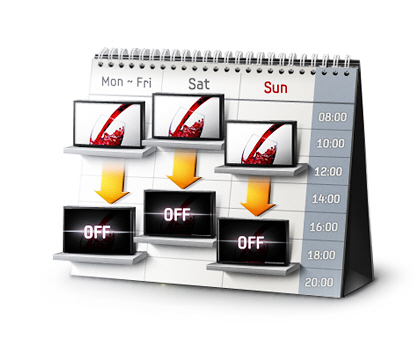

Set a schedule thats always on time.
Keep your monitor running efficiently at all times. This Samsung LFD boasts a smart scheduling feature. The automatic power on/off function allows you to designate time, day, volume, input source and holiday dates. Theres even a convenient on-screen display setting with up to 3 schedules including day and time.
A video wall that lives up to your standards
Create the ultimate video wall with Samsung LFDs that cater to your needs.
And because this LFD has an embedded video matrix processor, it supports 1 x 1 to 10 x 10 wall formats, allowing you to enjoy total convenience. Best yet, since they need no additional support, the possibilities are almost endless.
Save money, save space with built-in speakers.
Maximise your impact with a great picture and crisp audio. Your message will be heard loud and clear with built-in speakers. Youll save money when you eliminate the cost of purchasing separate speakers, and youll save valuable space as well.
Brighter lights, better picture.
With an intensely illuminated DID panel your message is always in the spotlight. Its high brightness and contrast level make the screen clear and readable in public. In fact, on average its 1.5 times as bright as TV screens. Plus with a low operating temperature this Samsung LFD will be completely reliable for years to come.

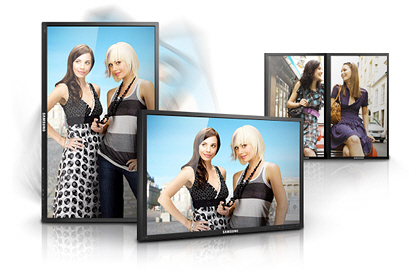

Choose the right view, landscape or portrait.
This Samsung LFD gives you the flexibility to display your image vertically or horizontallywhatever the situation calls for. With a pivot function that rotates the screen 90degrees and the freedom to display presentations in portrait mode or advertisements in landscape mode, this makes for one versatile monitor.

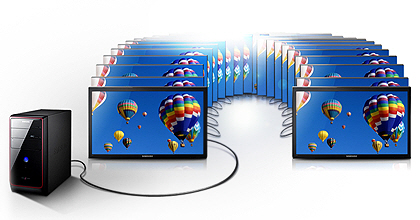

Stay in the loop with DVI-out.
Enjoy superior picture quality with a DVI-out interface that lets you share content between multiple LFDs thanks to an easier-to-connect video matrix. LFDs used to have to be connected to the PC individually, but digital loop out allows you to connect them without connecting to a PC. Better yet, the digital loop out produces a single image without any loss of quality, and theres no need for a separate video signal distributor. Its easy to install and the most cost-effective way to connect multiple displays.

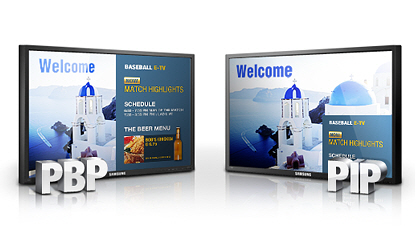

Twice the information, double the impact.
Whether your presentation requires a picture-in-picture configuration or a picture-by-picture arrangement, this Samsung LFD makes it possible. When one image just isnt enough, two video signals can be viewed simultaneously for maximum impact.
A screen that wont shatter your digital dreams. (option)
When a monitor is displayed in public areas, things can happen. Thats why our LFD offers a specially-designed, optional protection glass. Scratch resistant and shatter-proof, it shields the panels surface from any damage so you can use it for years to come.
A great picture thats glare-free.
Whether you have a story to tell or a product to sell, its important that your image is crystal clear. This Samsung LFD delivers just thateven if your display is located in a brightly-lit environment. It eliminates any reflections that can disrupt your ads readability, keeping images smooth and visible.

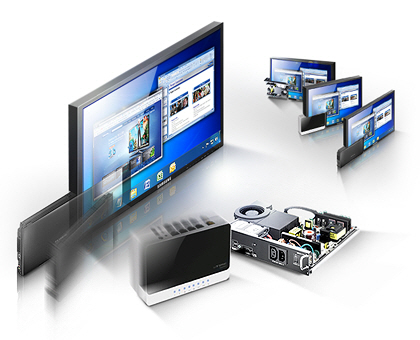

A slide-in design with easy accessibility.
Enjoy convenient, quick access to the PC, network or receiver with this LFDs optional slide-in modular design. Its discreetly located on in the rear side of the unit. And there are a variety of module options that can be easily combined with the LFD. You can even insert a customised modulewhether its Samsung or a third party manufacturer.
Upgrade effortlessly.
This Samsung LFD LFD makes upgrading firmware easy. The simple transmission is accomplished through an image file, using a DVI, HDMI or display port. Samsungs LFD LFD lets you perform upgrades effortlessly through a direct connection with your PC.
Specifications
|
|
| Panel |
Diagonal Size |
40" |
| Type |
S-PVA (DID) |
| Resolution |
1920 x 1080(16 : 9) |
| Pixel Pitch(mm) |
0.46125 (H)x0.46125 (V) |
| Active Display Area(mm) |
885.60 (H)x498.15 (V) |
| Brightness(Typ.) |
700cd/m |
| Contrast Ratio |
3000 : 1 |
| Viewing Angle(H/V) |
178 / 178 |
| Response Time(G-to-G) |
8 ms |
| Display Colors |
8.0bit-16.7 M |
| Color Gamut |
72% |
| Display |
Dynamic C/R |
10000 : 1 |
| H-Scanning Frequency |
30 kHz~81 kHz |
| V-Scanning Frequency |
56 Hz~ 85 Hz |
| Maximum Pixel Frequency |
148.5 MHz |
| Connectivity |
Input |
RGB |
AnalogD-SUB,DVI-D,DisplayPort |
| Video |
CVBS,HDMI1, HDMI2,
Component (D-sub15 pin)
|
| Audio |
RCA (L/R),StereominiJack |
| Output |
RGB |
DVI-D (Loop-out) |
| Audio |
StereominiJack |
| Power Out |
5 V(forSBB) |
| External Control |
RS232C (in / out),RJ45 |
| External Sensor |
Sterominijack (IRin / out) |
| Power |
Type |
Internal |
| Power Supply |
AC100-240V ~(+ / -10%),50 / 60Hz |
| Power Consumption |
On Mode |
220 watts (max)/200 watts (typ) |
| Sleep Mode |
less than 2 watts |
| Off Mode |
less than 1 watts |
| Mechanical Spec |
Dimension (mm) |
Set |
932 x 548 x 130 mm |
| Package |
1042 x668x295 mm |
| Weight (kg) |
Set |
17 kg |
| Package |
22 kg |
| VESA Mount |
600 x 400 mm |
| Protection Glass |
Optional |
| Stand Type |
FootStand (optional) |
| Media Player Option Type |
SIM(SlideinModule) |
| Operation |
Operating temperature: |
0C ~ 40C |
| Humidity |
10 ~ 80% |
| Feature |
Key |
Professionalheavyusage |
| Special |
Lamp Error Detection, Anti Retention, Brightness Sensor, Temperature Sensor, Built-In Fan Control, RS232C MDC, Built in Speaker (10 W + 10 W), Plug and Play (DDC2B, DDC / CI), PIP / PBP, Video Wall (5 x 5), Pivot Display, Button Lock, Digital Daisy Chain |
| Certification |
Safety |
UL (USA) : UL 60950 - 1
CSA (Canada) : CSA C22.2 No. 60950 - 1
TUV (Germany) : EN60950 - 1
NEMKO (Norway) : EN60950 - 1
KC (Korea) : K60950 - 1
CCC (China) : GB 4943 - 2001
PSB (Singapore) : IEC60950 - 1
GOST (Russia) : IEC60950 - 1, EN55022
SIQ (Slovenia) : IEC60950 - 1, EN55022
PCBC (Poland) : IEC60590 - 1, EN55022
NOM (Mexico) : NOM - 019 - SCFI - 1993
IRAM (Argentina) : IEC60950 - 1
SASO (Saudi Arabia) : IEC60950 - 1
|
| EMC |
FCC (USA) FCC Part 15, Subpart B class B
CE (Europe) EN55022, EN55024
VCCI (Japan) V - 3 (CISPR22)
KCC (Korea) : KN22, KN24
BSMI (Taiwan) : CNS13438 (CISPR22)
C-Tick (Australia) : AS / NZS3548 (CISPR22)
CCC(China) : GB 9254 - 2008, GB 17625.1 - 2003
|
| Environment |
ENERGY STAR 5.0 (USA) |
| Accessories |
Included |
Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries |
| Optional |
Stand |
STN-L3255D |
| Mount |
WMN5770D, WMN4250D,VMN4240D |
| Specialty |
CML500D (ceilingmount), STN-520WE (welcomeBoard) |
